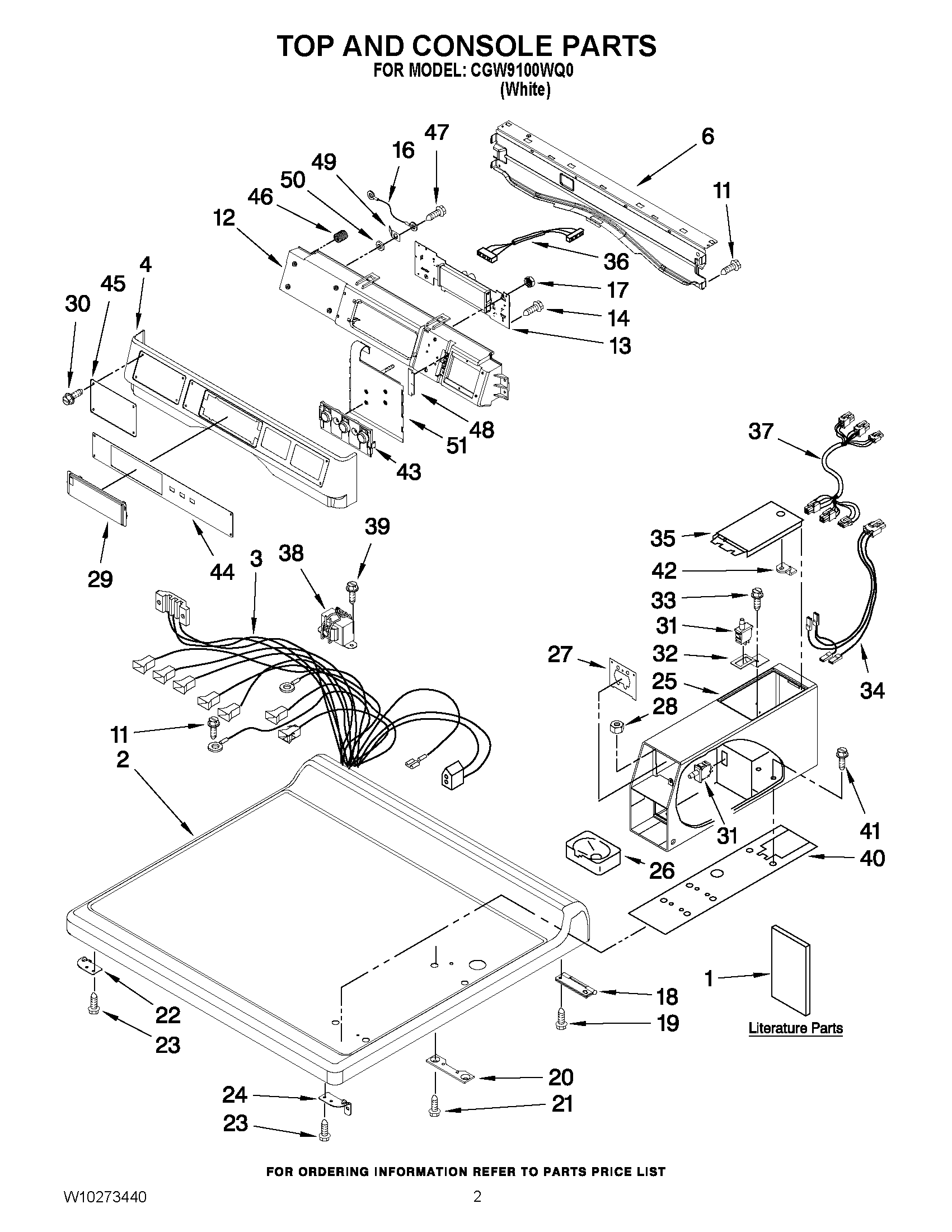

CGW9100WQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	PARTS LIST
1	TECH SHEET
1	INSTALLATION INSTRUCTION
2	WPW10137411 Whirlpool Top
3	Harness, Main
4	W10779120 Whirlpool Console
6	WP8565237 Whirlpool Bracket Assembly
12	W10137427 Whirlpool Console
13	USER-INTERFACE ASSEMBLY
14	489136 Whirlpool Refrigerator Screw
16	Ground Wire Assembly
17	WPW10139046 Whirlpool Nut
18	WP8565018 Whirlpool Hinge
19	WP488627 Whirlpool Refrigerator Screw
20	3347825 Whirlpool Plate
21	W10841059 Whirlpool Screw
22	W10137445 Whirlpool Bracket Assembly
23	WP488729 Whirlpool Refrigerator Door Screw
24	W10137444 Whirlpool Bracket
25	W10171131 Whirlpool Case Assembly
26	WP385421 Whirlpool Coin Operated Laundry Funnel
27	279950 Whirlpool Funnel
28	WP3400029 Whirlpool Dishwasher Nut
29	WPW10131114 Whirlpool Cover Assembly
30	WPW10137457 Whirlpool Screw
31	WPW10131838 Whirlpool Voltage Switch
33	WPW10139210 Whirlpool Screw
34	W11096090 Whirlpool Wire Harness
35	W11283272 Whirlpool Washer Dryer Meter Case Access Door
36	W10166307 Whirlpool Wire Harness
37	W10166308 Whirlpool Harness Wire
38	WPW10131839 Whirlpool Transformer Assembly
39	WP90767 Whirlpool Screw
40	W10137448 Whirlpool Cushion
41	W11715721 Whirlpool Screw Assembly
43	PUSH BUTTON
44	W10137441 Whirlpool Overlay
45	W10137462 Whirlpool Cover
46	WPW10189313 Whirlpool Insert
47	WP488234 Whirlpool Air Conditioner Screw
48	W10187276 Whirlpool Gasket
49	TAB, GROUNDING
50	W10189075 Whirlpool Washer
51	WPW10135255 Whirlpool Switch
