CGX215VX0 02 – SECTION

Products

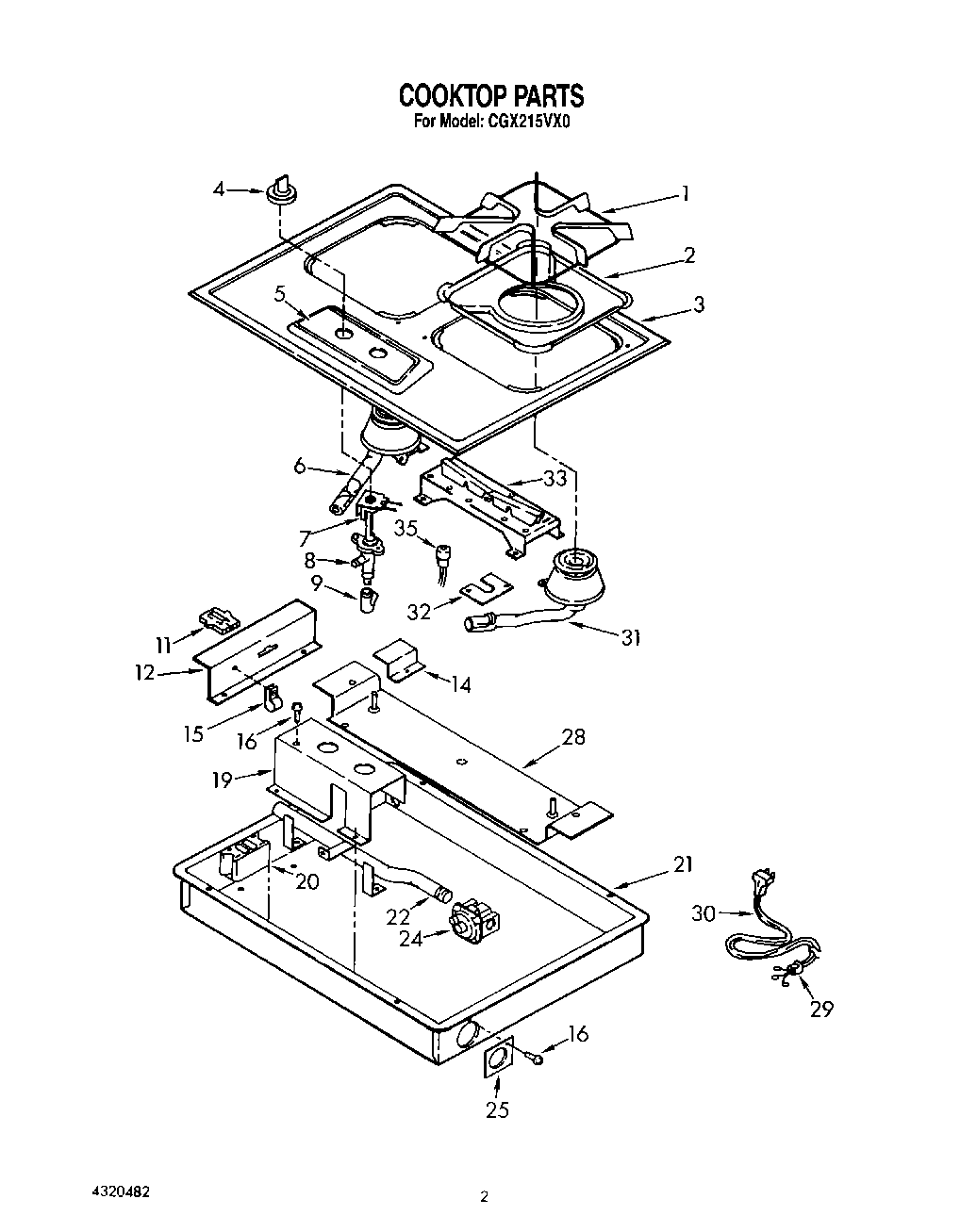

Position	Product
	List, Repair Parts
	Instruction, Installation
	Wiring Diagram
	Guide, Use & Care
1	Grate (4)
2	Burner Bowl (2)
3	Cooktop, Chrome
4	Knob, Surface Burner (2)
5	Nameplate
6	Burner, Left
7	Switch
8	Valve, Burner (2)
9	Orifice Asm. (2)
11	Receptacle
12	Cover, Module
14	Wire Shield
15	Clamp
16	Screw, 8-18 X 1/4 (2)
19	Wire Cover, Switch
20	Module, Spark
21	Burner Box
22	Manifold Pipe
24	Pressure Regulator
25	Cover
28	Spacer, Burner
29	Strain Relief
30	Power Cord Asm.
31	Insulation, Door
32	Bracket, Igniter Mounting
33	Flash Tube Asm.
35	Electrode (2)
35	Wire Harness
