CGX215VX1 01 – SECTION

CGX215VX1 01 – SECTION

Written by

in

CGX215VX1 01 – SECTION

Products

PositionProduct
Wiring Diagram
Instruction, Installation
Guide, Use & Care

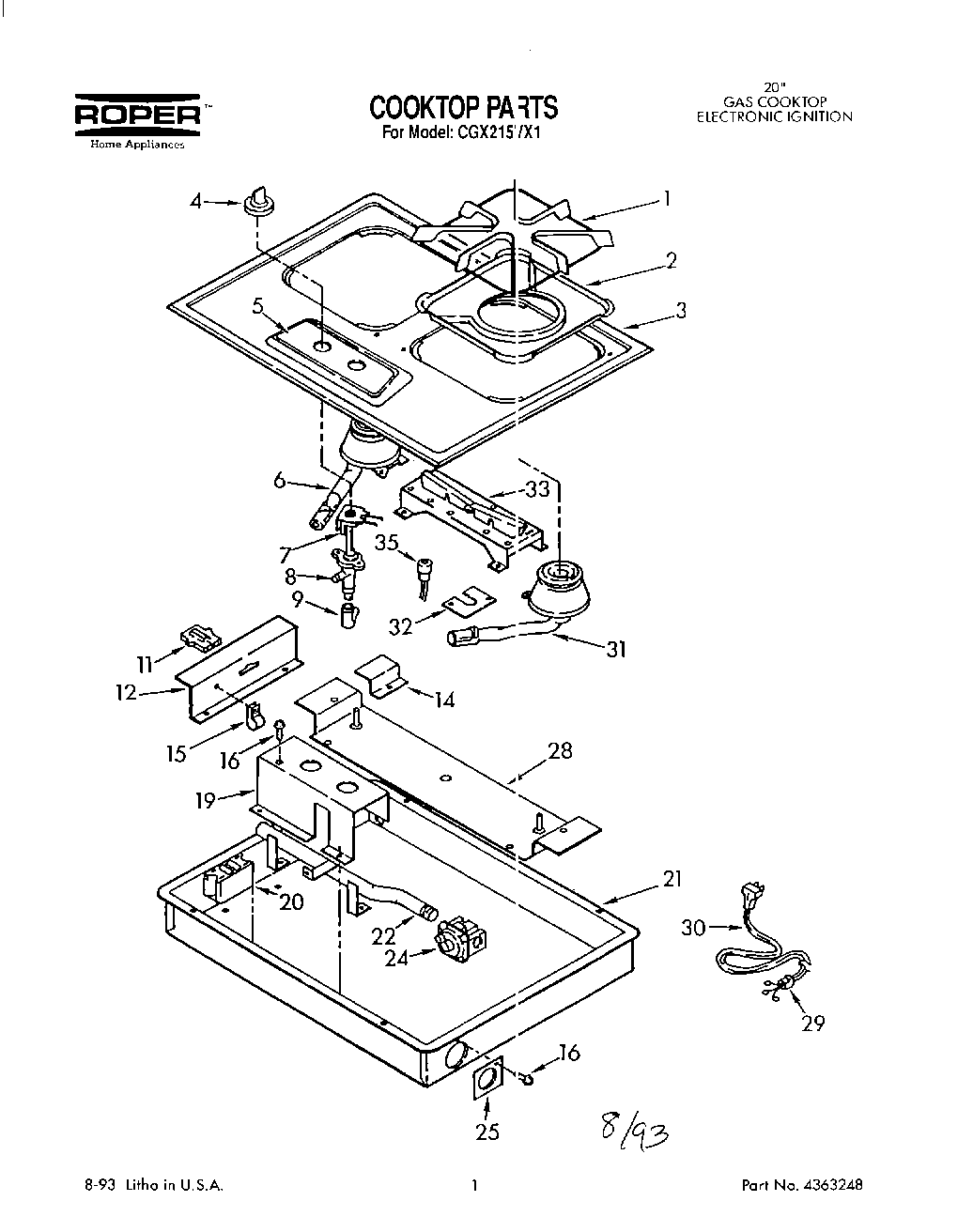

1Grate (4)
2Burner Bowl (2)
3Cooktop, Chrome
4Knob, Surface Burner (2)
5Nameplate
6Burner, Left
7WP4330739 Whirlpool Igniter Switch
8Valve, Burner (2)
9Orifice Asm. (2)
11Receptacle
12Cover, Module
14Wire Shield
15Clamp
16Screw, 8-18 X 1/4 (2)
19Wire Cover, Switch
20Spark Module
21Burner Box
22Manifold Pipe
24Pressure Regulator
25Cover
28Spacer, Burner
29Strain Relief
30Cord, Power
31Insulation, Door
32Bracket, Igniter Mounting
33Flash Tube Asm.
35Wire Harness
35Electrode (2)
