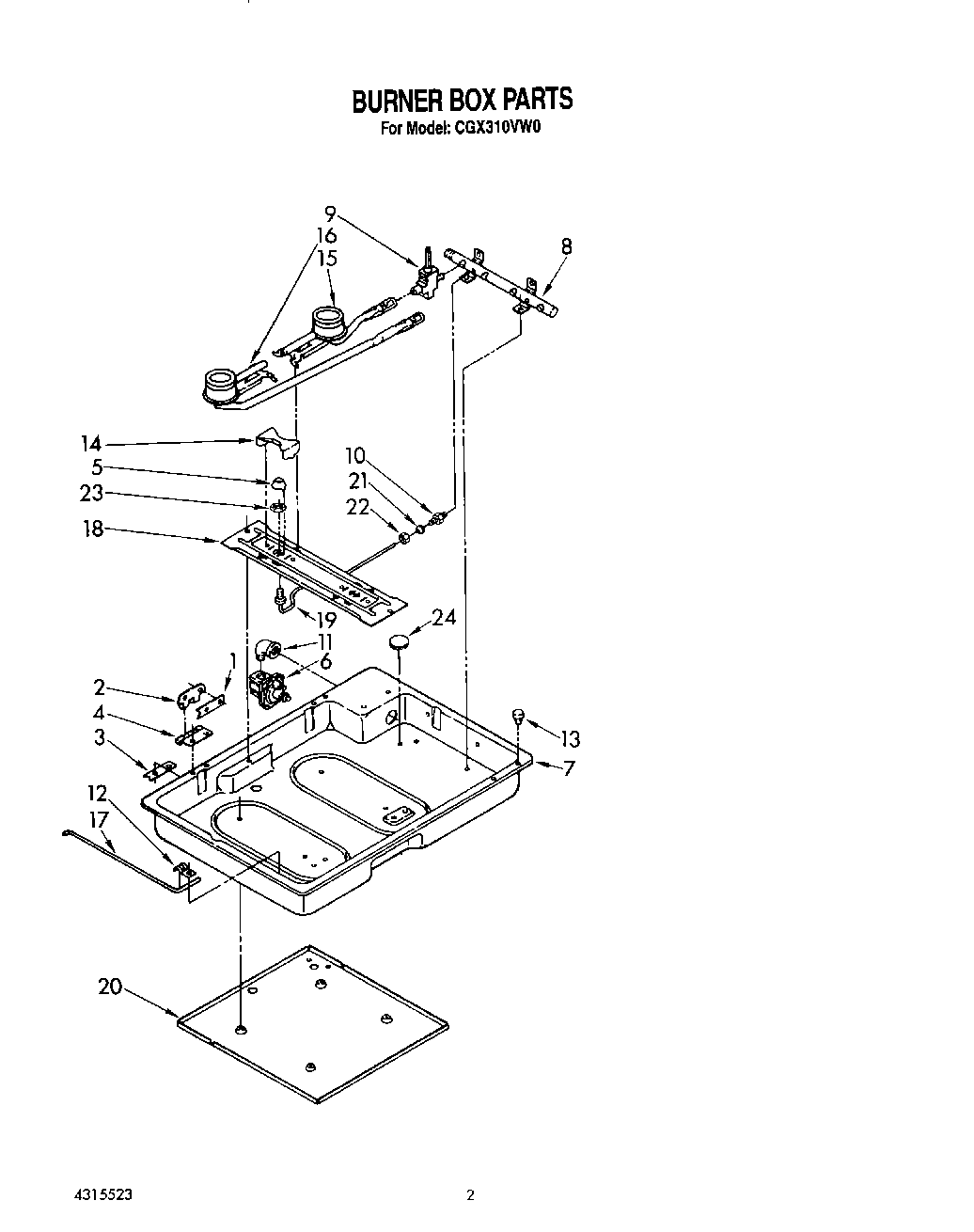

CGX310VL0 02 – SECTION

Products

Position	Product
	Guide, Use & Care
	List, Repair Parts
	Instruction, Installation
1	Plate, Hinge (2)
2	Hinge, Cooktop (2)
3	Nut, Hinge (2)
4	Hinge, Burner Box (2)
5	Cone (2)
6	Pressure Regulator
7	Burner Box
8	Pipe, Manifold
9	Valve, Burner (4)
10	Filter, Pilot (2)
11	Elbow
12	Clamp, Rod
13	Bumper (4)
14	Shield, Pilot (2)
15	Burner R.H. (2)
16	Burner L.H. (2)
17	Rod, Support
18	Support, Burner
19	Tubing, Pilot (2)
20	Shield, Bottom
21	Sleeve, Tubing (2)
22	Nut (2)
23	Nut (4)
24	Plug, Hole (2)
