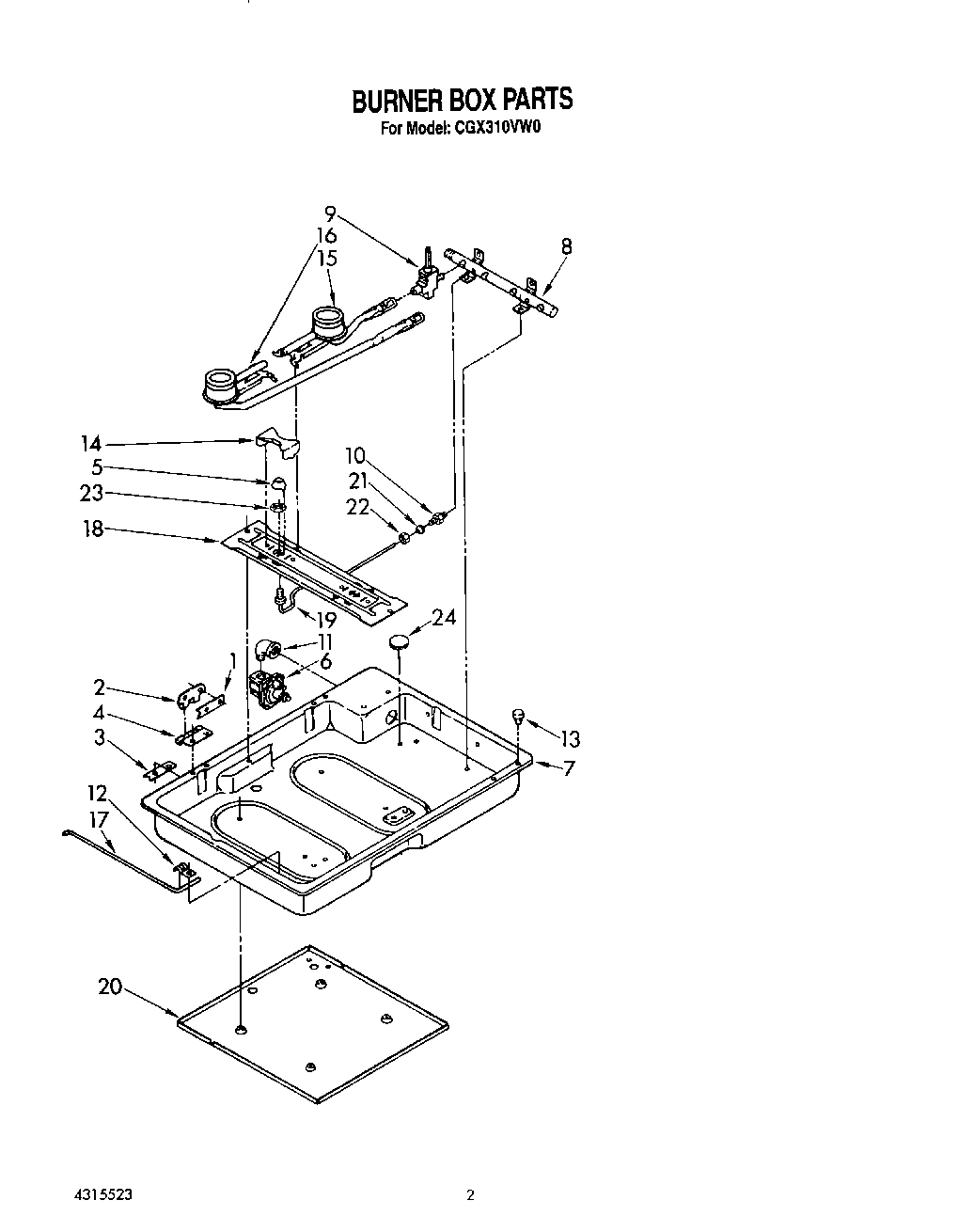

CGX310VW0 02 – SECTION

Products

PositionProduct
Guide, Use & Care
List, Repair Parts
Instruction, Installation
1Plate, Hinge (2)
2Hinge, Cooktop (2)
3Nut, Hinge (2)
4Hinge, Burner Box (2)
5Cone (2)
6Pressure Regulator
7Burner Box
8Pipe, Manifold
9Valve, Burner (4)
10Filter, Pilot (2)
11Elbow
12Clamp, Rod
13Bumper (4)
14Shield, Pilot (2)
15Burner R.H. (2)
16Burner L.H. (2)
17Rod, Support
18Support, Burner
19Tubing, Pilot (2)
20Shield, Bottom
21Sleeve, Tubing (2)
22Nut (2)
23Nut (4)
24Plug, Hole (2)
