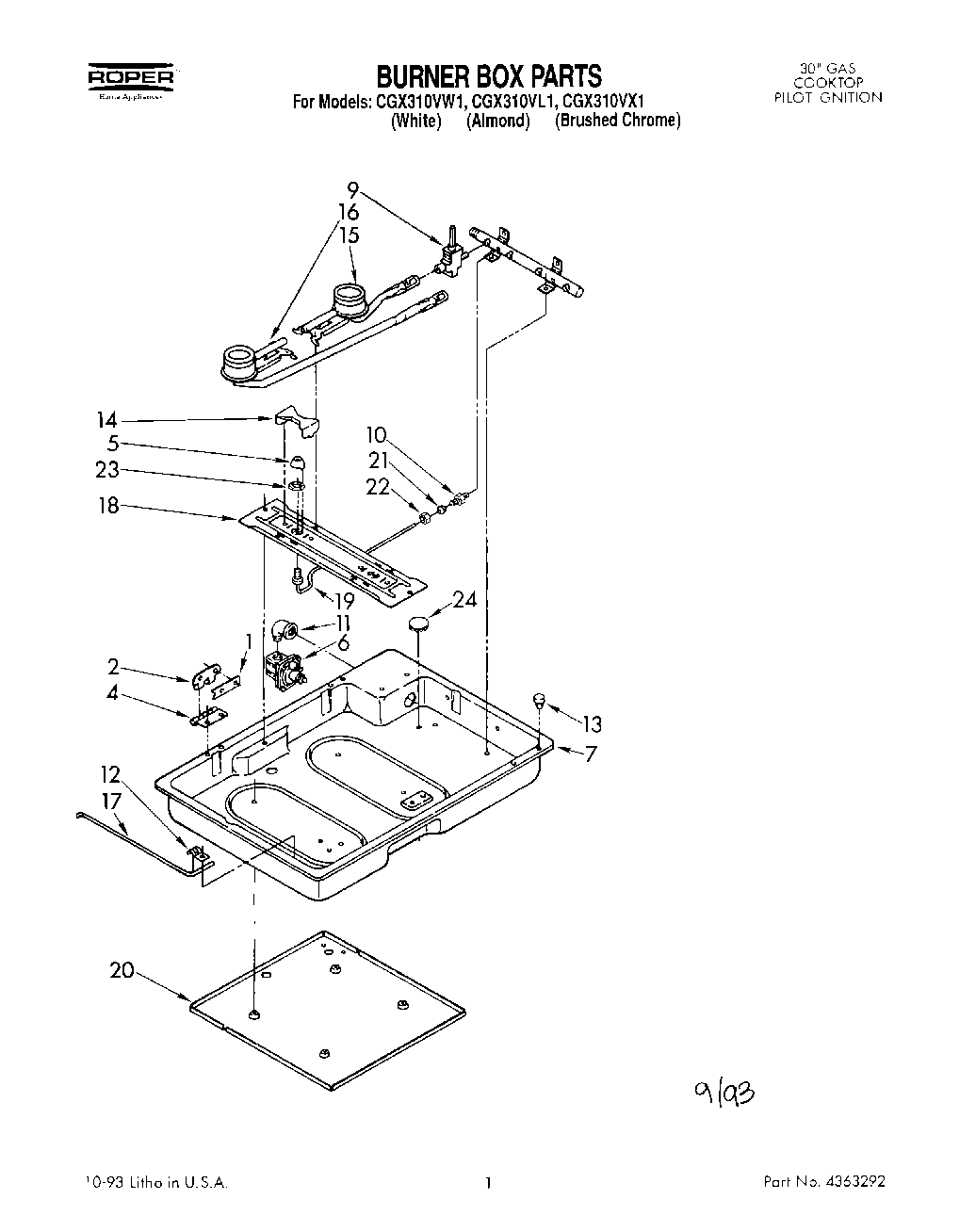

CGX310VW1 01 – SECTION

Products

PositionProduct
Guide, Use & Care
Instruction, Installation
1Plate, Hinge (2)
2Hinge, Cooktop (2)
4Hinge, Burner Box (2)
5Cone (2)
6Regulator, Pressure
7Burner Box
9Valve, Burner (4)
10Filter, Pilot (2)
11Elbow
12Clamp, Rod
13Bumper (4)
14Shield, Pilot (2)
15Burner R.H. (2)
16Burner L.H. (2)
17Rod, Support
18Support, Burner
19Tubing, Pilot (2)
20Shield, Bottom
21Sleeve, Tubing (2)
22Nut (2)
23Nut (4)
24Plug, Hole (2)
