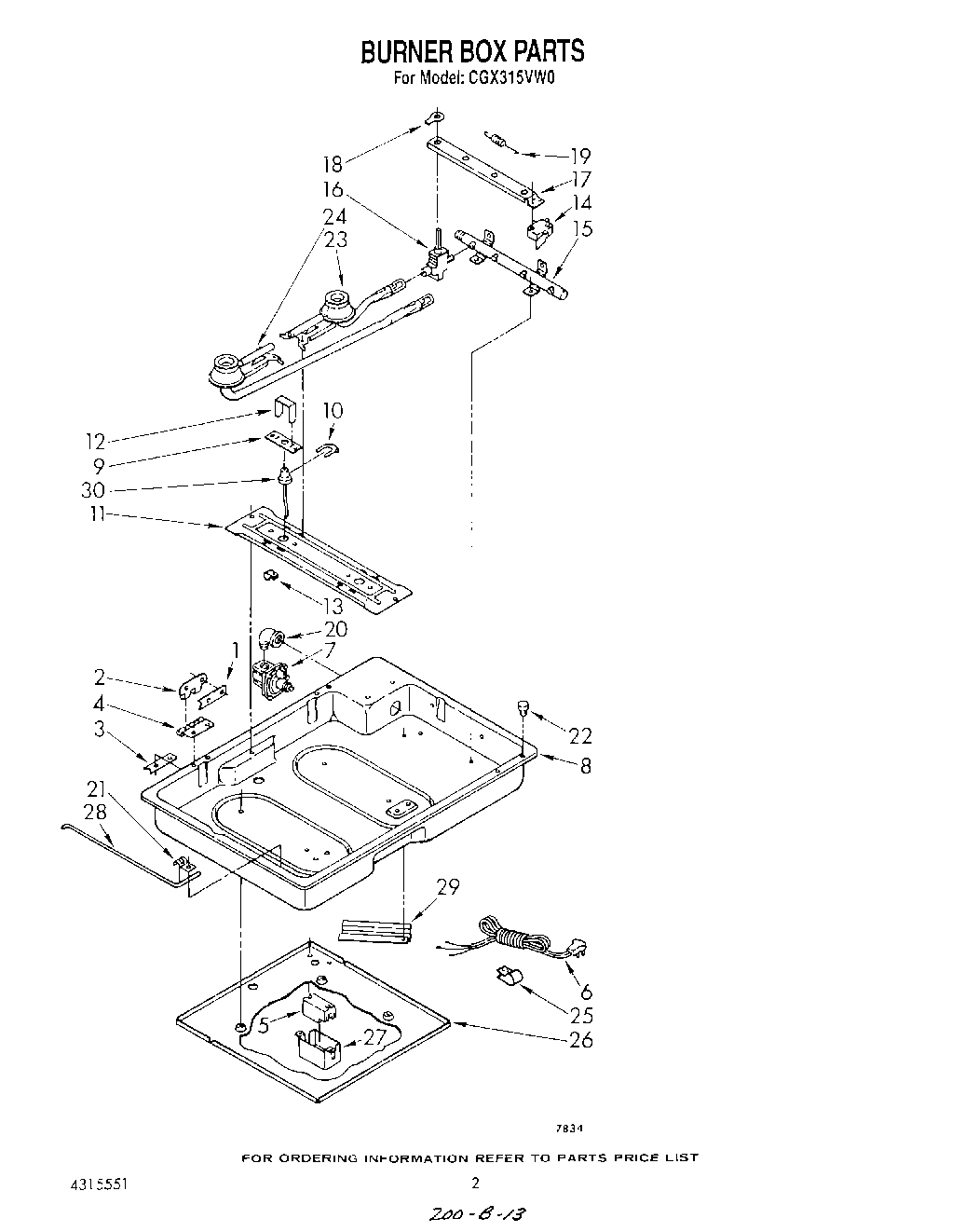

CGX315VL0 02 – SECTION

Products

Position	Product
	Instruction, Installation
	List, Repair Parts
	Guide, Use & Care
1	Plate, Hinge (2)
2	Hinge, Cooktop (2)
3	Nut, Hinge (2)
4	Hinge, Burner Box (2)
5	Module, Spark
6	Cord, Power
7	Pressure Regulator
8	Burner Box
9	Bracket, Burner
10	WPY0070927 Whirlpool Microwave Clip
11	Support, Burner
12	Bracket, Electrode (2)
14	Switch, Burner
15	Pipe, Manifold
16	Valve, Burner (4)
17	Actuator
18	Cam
19	Spring
20	Elbow
21	Clamp, Rod
22	Bumper (4)
23	Burner R.H. (2)
24	Burner L.H. (2)
25	Clamp
26	Shield, Bottom
27	Box, Electrical
28	Rod, Support
29	Raceway
30	4157608 Whirlpool Surface Igniter
