| Instruction, Installation |
| List, Repair Parts |
| Guide, Use & Care |

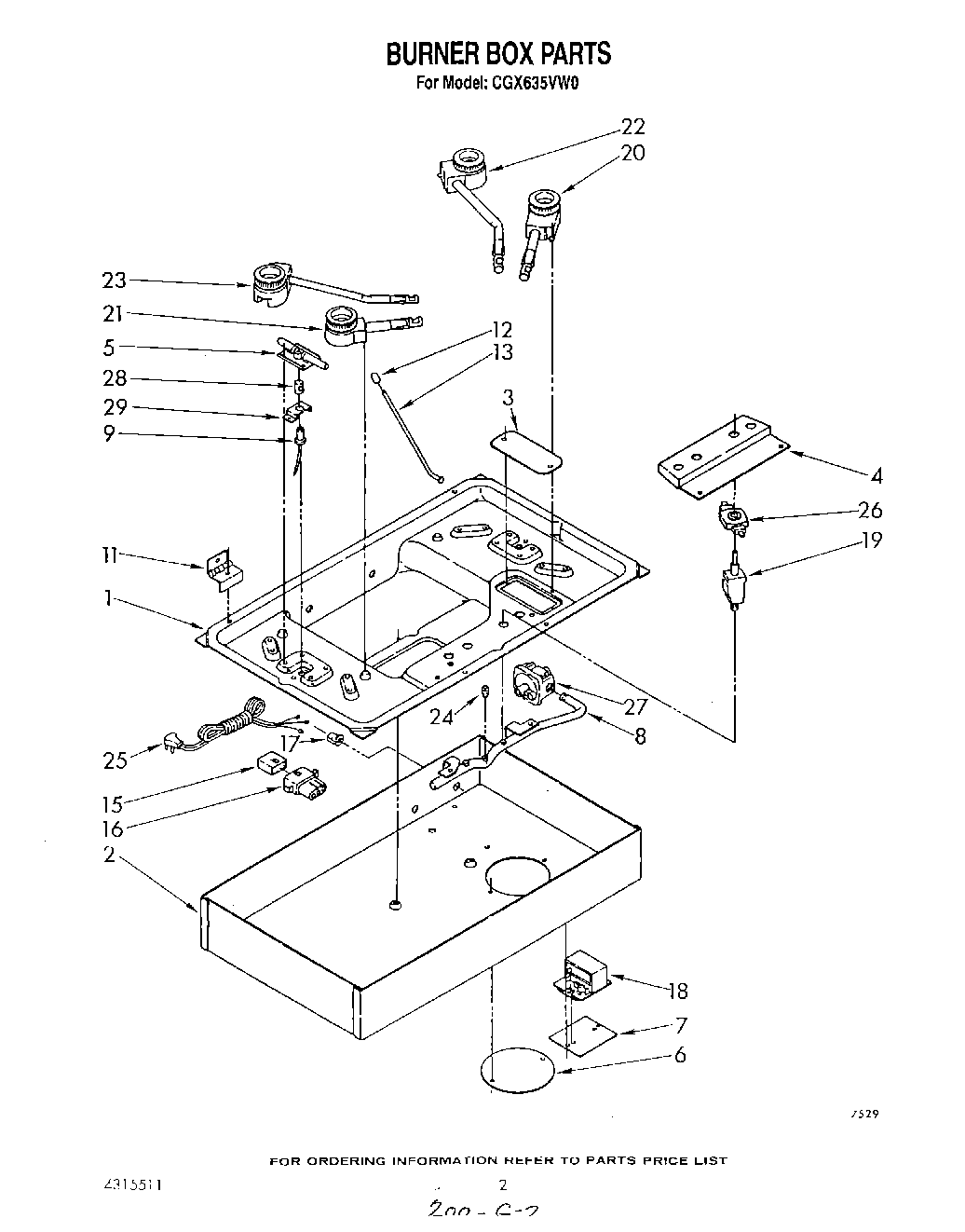

| 1 | Burner Box |
| 2 | Casing, Burner Box |
| 3 | Cover, Access |
| 4 | WP90767 Whirlpool Screw |
| 4 | Cover, Switch |
| 5 | Tube, Flash (2) |
| 6 | Screw, 8-18 X 1/4 (2) |
| 6 | Cover, Access |
| 7 | Plate, Module |
| 8 | Pipe, Manifold |
| 9 | Electrode (2) |
| 11 | Screw, 10-24 X 1/4 (1) |
| 11 | Hinge (2) |
| 11 | WP313808 Whirlpool Screw |
| 12 | Tip, Rod |
| 13 | Rod, Support |
| 15 | 353424 Whirlpool Connector |
| 16 | Block, Disconnect |
| 17 | Strain Relief |
| 18 | Module, Spark |
| 19 | Valve (4) |
| 20 | Burner (Right Front) |
| 21 | Burner (Left Front) |
| 22 | Burner (Right Rear) |
| 23 | WP693304 Whirlpool Screw |
| 23 | Burner (Left Rear) |
| 24 | W10295523 Whirlpool Plug |
| 25 | Cord, Power |
| 26 | Switch, Valve (4) |
| 27 | Pressure Regulator |
| 28 | Cap (2) |
| 29 | Bracket (2) |
| 29 | WP489128 Whirlpool Refrigerator Screw |
