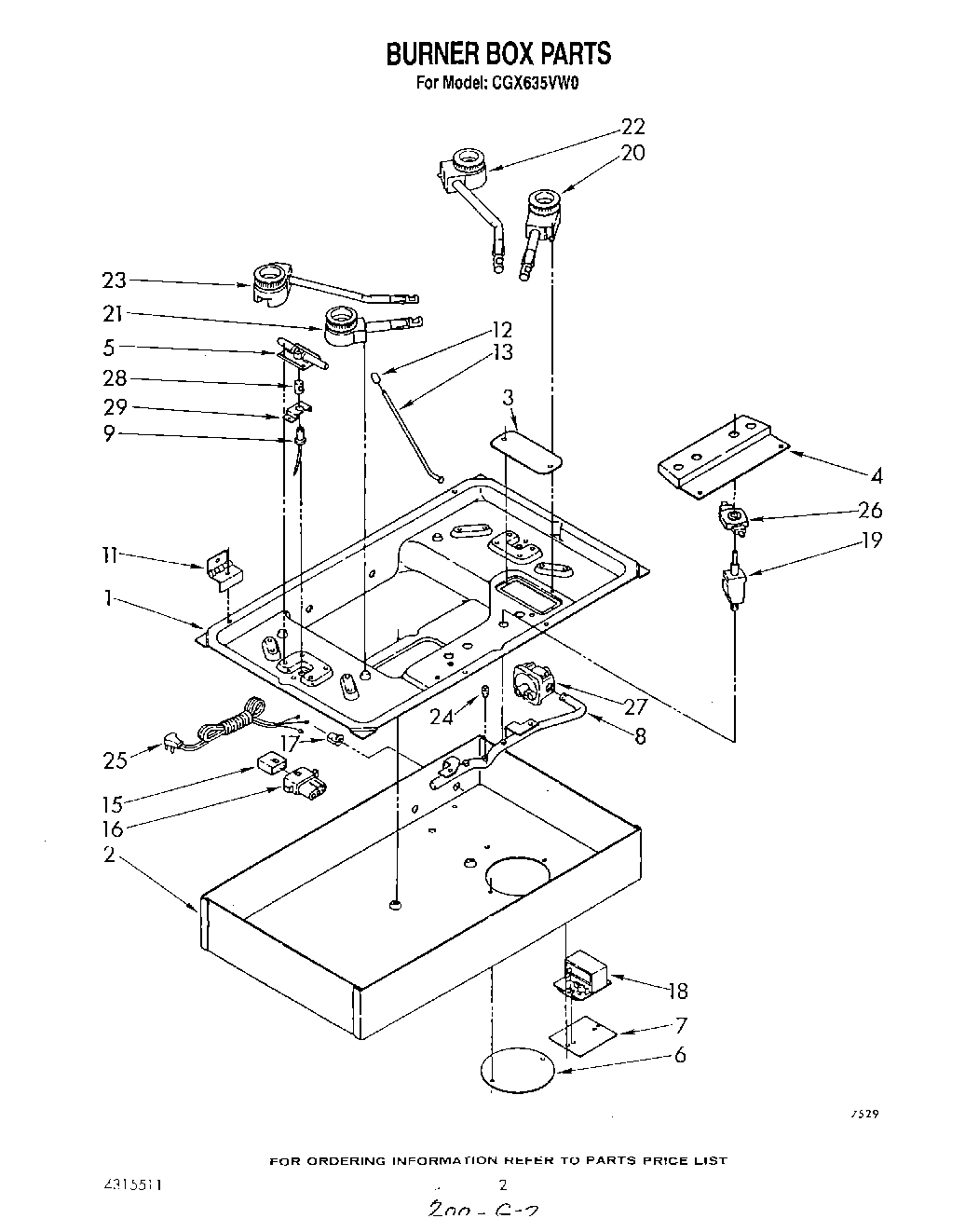

CGX635VX0 02 – SECTION

Products

Position	Product
	Instruction, Installation
	List, Repair Parts
	Guide, Use & Care
1	Burner Box
2	Casing, Burner Box
3	Cover, Access
4	WP90767 Whirlpool Screw
4	Cover, Switch
5	Tube, Flash (2)
6	Screw, 8-18 X 1/4 (2)
6	Cover, Access
7	Plate, Module
8	Pipe, Manifold
9	Electrode (2)
11	Screw, 10-24 X 1/4 (1)
11	Hinge (2)
11	WP313808 Whirlpool Screw
12	Tip, Rod
13	Rod, Support
15	353424 Whirlpool Connector
16	Block, Disconnect
17	Strain Relief
18	Module, Spark
19	Valve (4)
20	Burner (Right Front)
21	Burner (Left Front)
22	Burner (Right Rear)
23	WP693304 Whirlpool Screw
23	Burner (Left Rear)
24	W10295523 Whirlpool Plug
25	Cord, Power
26	Switch, Valve (4)
27	Pressure Regulator
28	Cap (2)
29	Bracket (2)
29	WP489128 Whirlpool Refrigerator Screw
