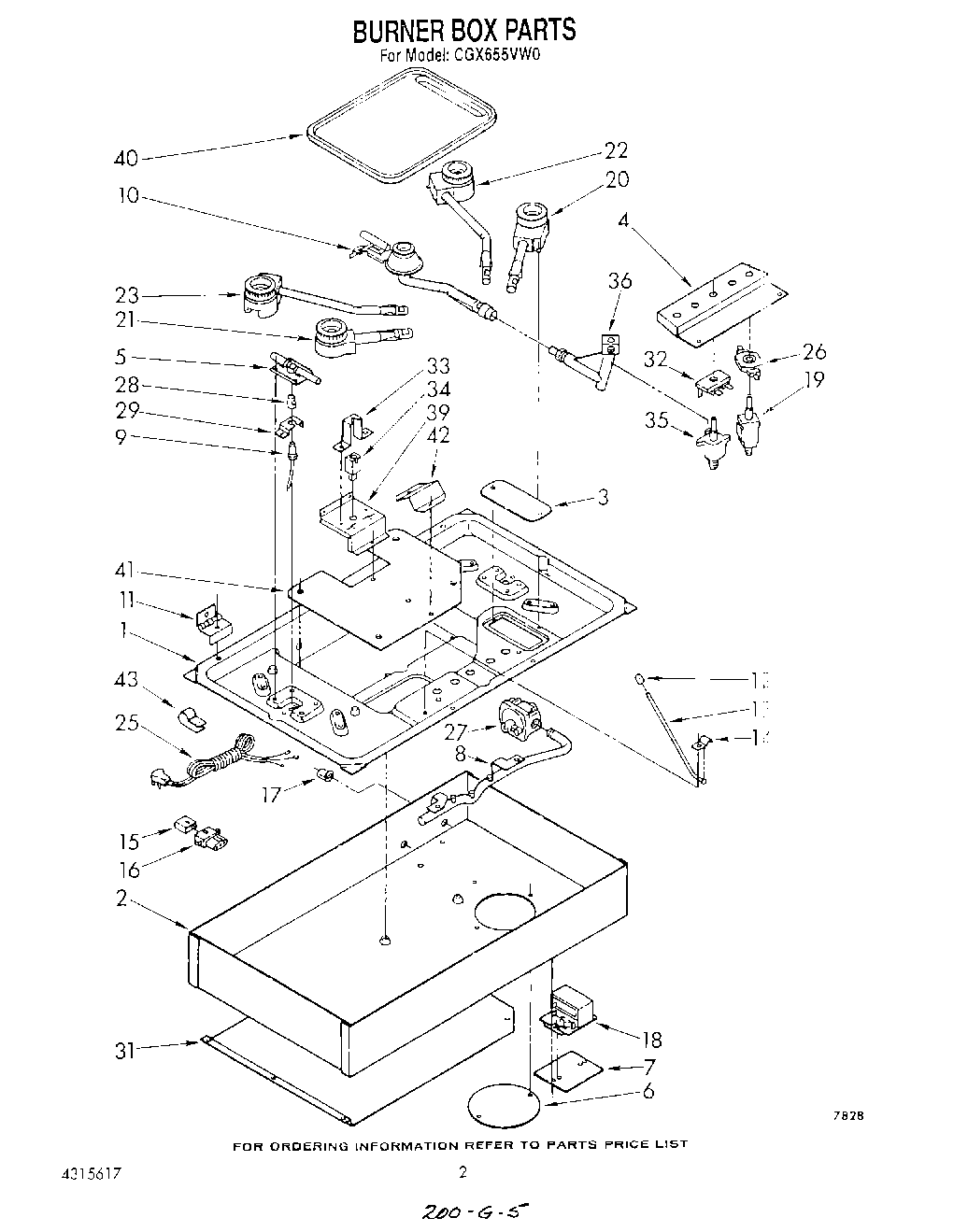

CGX655VW0 02 – SECTION

Products

Position	Product
	Instruction, Installation
	List, Repair Parts
	Guide, Use & Care
1	Burner Box
2	Casing, Burner Box
3	Cover, Access
4	Cover, Switch
4	WP90767 Whirlpool Screw
5	Tube, Flash (2)
6	Screw, 8-18 X 1/4 (2)
6	Cover, Access
7	Plate, Module
8	Pipe, Manifold
9	Electrode (2)
10	Burner, Griddle
11	WP313808 Whirlpool Screw
11	Screw, 10-24 X 1/4 (1)
11	Hinge (2)
12	Tip, Rod
13	Rod, Support
14	Clamp, Rod
15	353424 Whirlpool Connector
16	Block, Disconnect
17	Strain Relief
18	Module, Spark
19	Valve (4)
20	Burner (Right Front)
21	Burner (Left Front)
22	Burner (Right Rear)
23	WP693304 Whirlpool Screw
23	Burner (Left Rear)
25	Cord, Power
26	Switch, Valve (4)
27	Pressure Regulator
28	Cap (2)
29	WP489128 Whirlpool Refrigerator Screw
29	Bracket (2)
31	Baffle
32	Switch
33	Strap, Ground
34	Electrode
35	Valve, Griddle
36	Extension, Valve
39	Support, Burner
40	Griddle
41	Baffle, Burner
42	Reflector
43	Clamp
