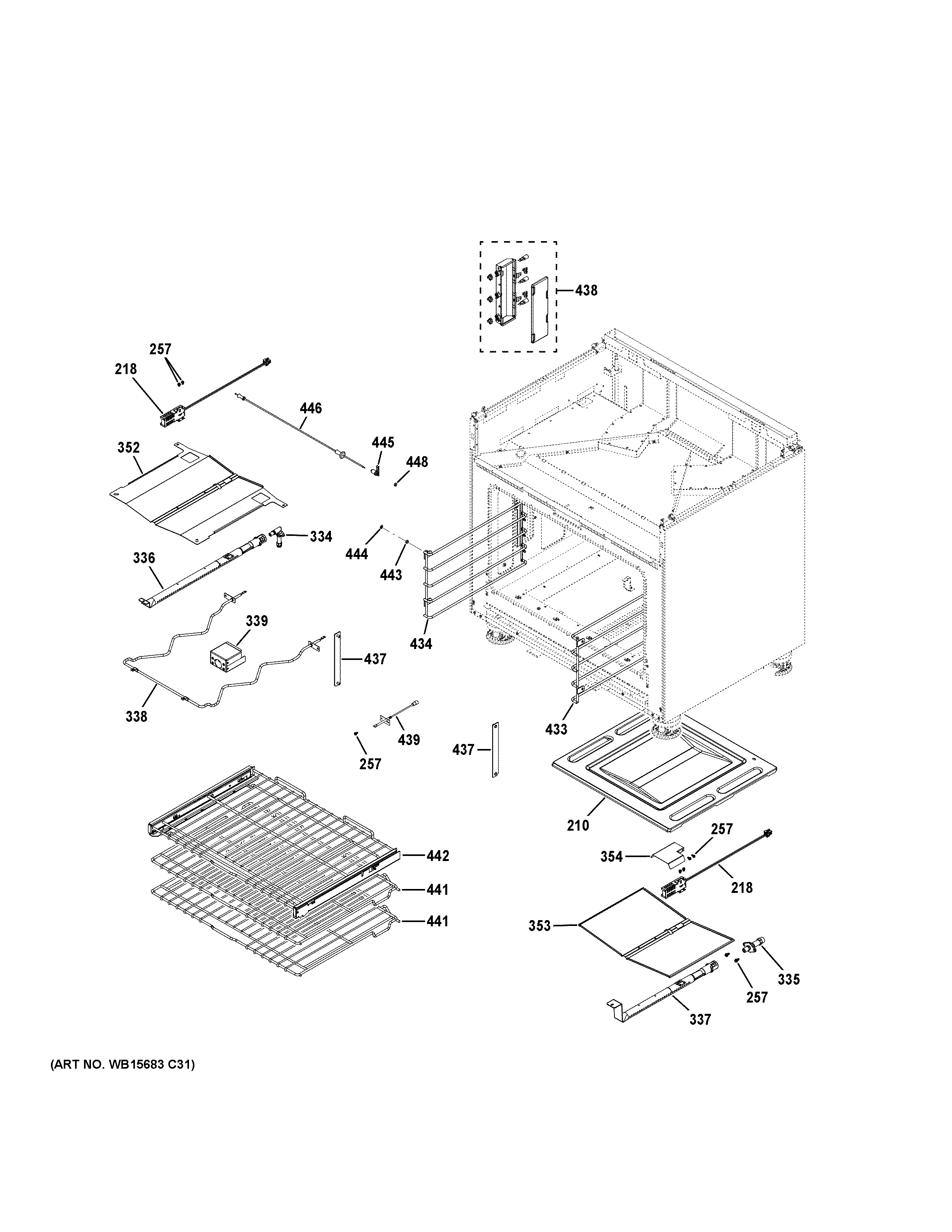

CGY366P2T2S1 OVEN CAVITY PARTS

CGY366P2T2S1 OVEN CAVITY PARTS

Written by

in

CGY366P2T2S1 OVEN CAVITY PARTS

Products

PositionProduct
210OVEN BOTTOM
218WB18X39634 GE Igniter Glow Bar
257WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
334WB28X39434 GE Elbow 90 Assembly
335WB28X39688 GE Injector Assembly
336WB16X39673 GE Broil Burner
337WB16X39681 GE Bake Burner
338WB44X39448 GE Oven Broil Element
339BRACKET ELBOW (BROIL)
352WB34X39919 GE Broil Spreader
353WB34X39920 GE Bake Spreader
354WB34X39602 GE Glowbar Shield
433WB02K10394 GE Right Hand Oven Rack Guide
434WB02K10395 GE Oven Left Hand Guide Rack
437BRACE CAVITY ASM
438LAMP HALOGEN ASM
439WB21X22134 GE Oven Sensor Assembly
441WB48X39625 GE Oven Rack Standard 36"
442WB48X39631 GE Oven Slide Rack
443SPRING WASHER
444WB01T10107 GE Oven Bolt Retainer
445WB20K10032 GE Oven Probe Receptacle
446WB18X39925 GE Thermistor Probe
448NUT RECEPTACL HEX 1/4-32
