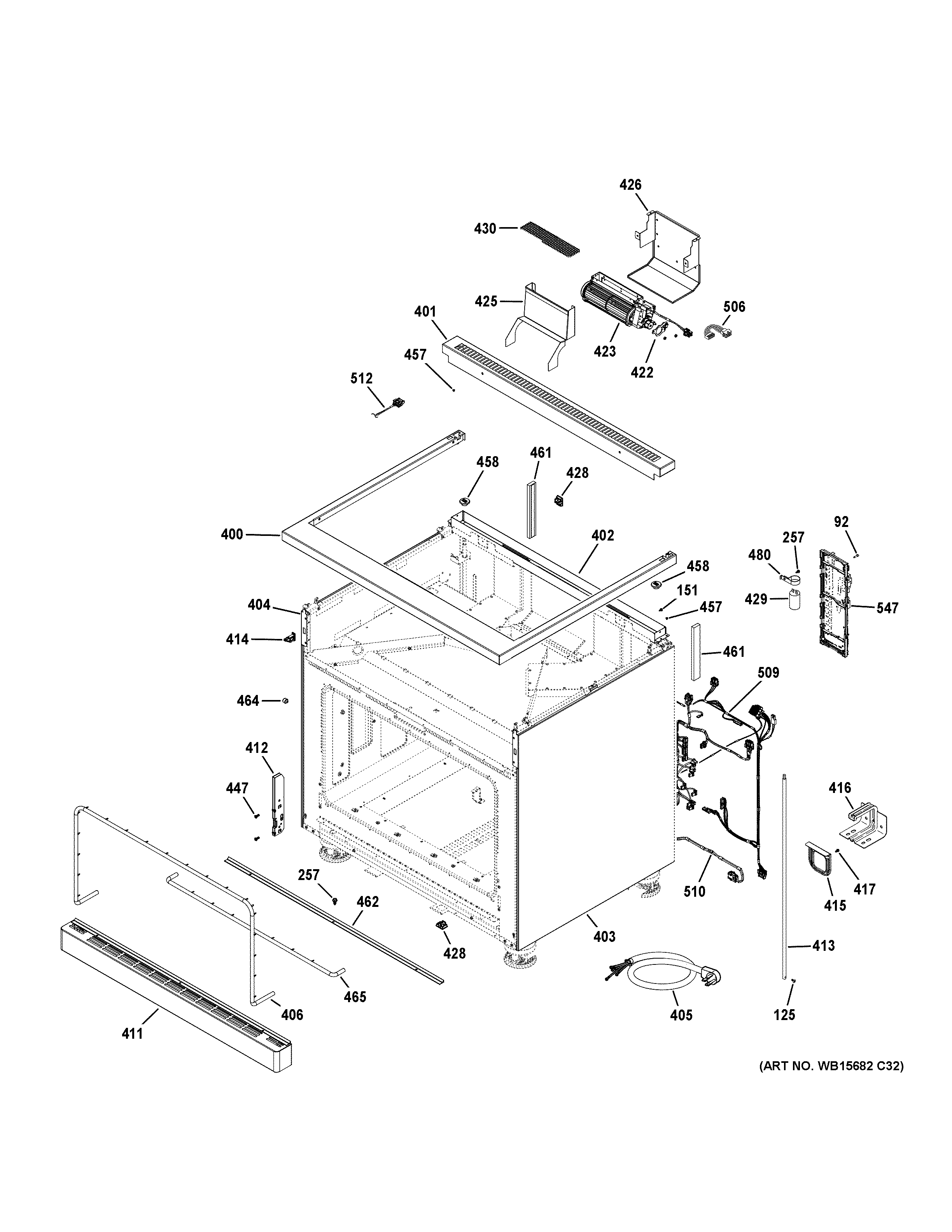

CGY366P4T1W2 BODY PARTS

CGY366P4T1W2 BODY PARTS

Written by

in

CGY366P4T1W2 BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
125WB01K10100 GE Screw 10-32 TRP 1/2"
151WB01T10009 GE Screw 10-16 Shoulder Type A
257WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
400WB07X39468 GE Bullnose Stainless Steel
401STAINLESS STELL TRIM VENT 36"
402DEFLECTOR SPILL
403STAINLESS STEEL PANEL SIDE RIG
404WB56X39521 GE Stainless Steel Side Panel
405WB18X28855 GE Oven Power Cord
406WB35X39589 GE Front Gasket Frame
411WHITE SLATE PANEL ACCES 36"
412WB10X39282 GE Receiver Hinge
413WB02X39924 GE Rod Extension
414PIN PILOT
415WB02K10224 GE Oven Anti-Tip Brace
416WB02K10237 GE Oven Anti-Tip Bracket
417WB01X26995 GE Oven Screw 8-18 AB X 5/16
422WB27X28659 GE Oven Sensor Board
423WB26X39879 GE Blower Tangential
425SHROUND FAN
426SHROUD FAN BACK
428BRACKET RJ45
429WB27T10662 GE Oven Capacitor
430SCREEN FAN
447WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
457WB1X536 GE Oven Screw
458PLUG SPILL GUARD
461SPACER
462STAINLESS STEEL BARRIER DOOR 36"
464WB02X28738 GE Oven Front Frame Bumper
465GASKET FRAME FRONT
480CLAMP CAPACITOR
506WB18X39341 GE Board Sensing Harness
509HARNESS SERIAL RELAY
510HARNESS MAIN
512HARNESS EXTENSION RJ45
547CONTROL RC17 MAIN ASM
