CGY366SEL1SS BODY PARTS

CGY366SEL1SS BODY PARTS

Written by

in

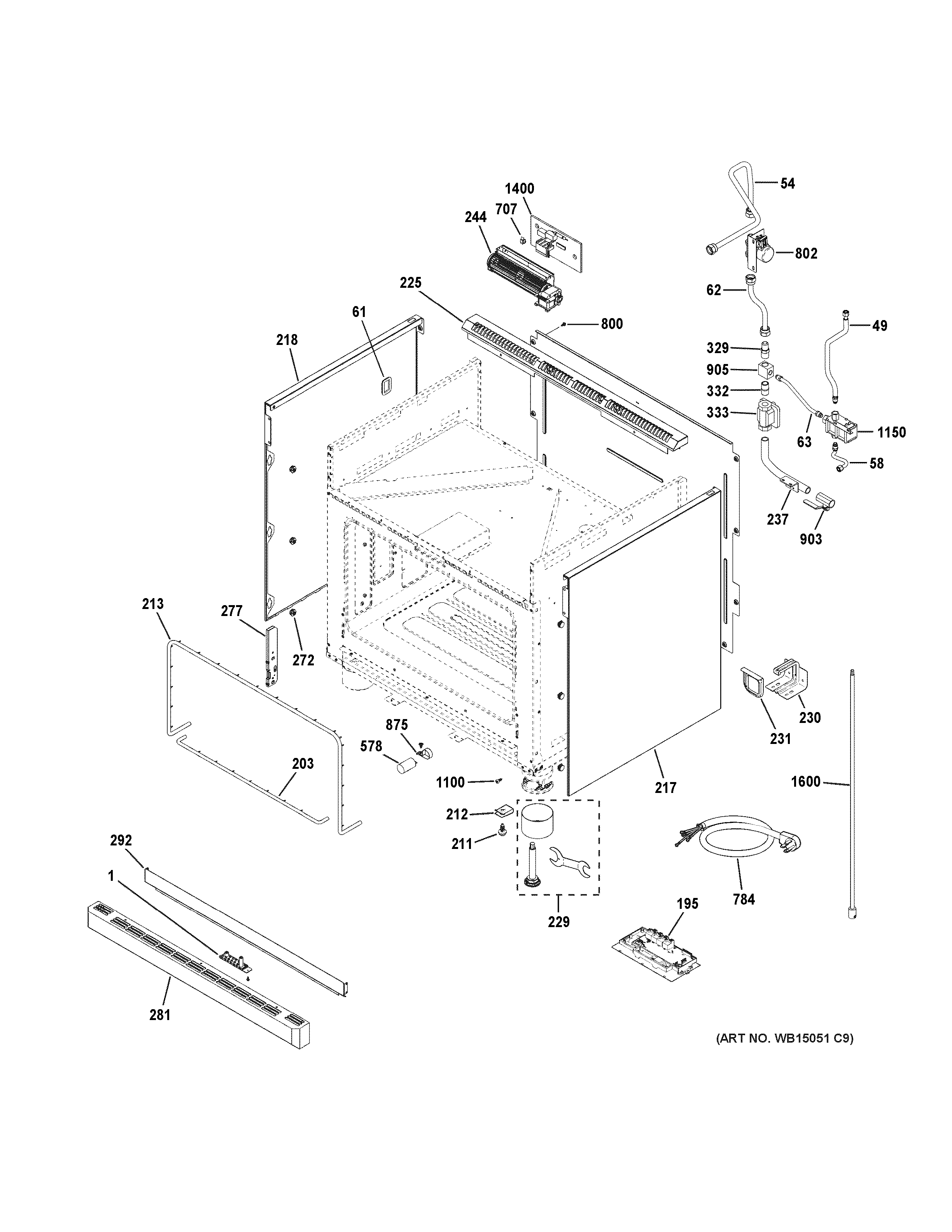

CGY366SEL1SS BODY PARTS

Products

PositionProduct
1WB28K10640 GE Oven LP Conversion Kit
49WB28X27152 GE Broil Supply Tube Assembly
54WB28K10665 GE Oven Cooktop Supply Tube Assembly
58WB28X27155 GE Bake Supply Tube Assembly
61BUSHING WIRE
62WB28K10671 GE Valve Assembly Tube Lockout
63TUBE VALVE SUPPLY ASM
195WB19K10063 GE Oven Relay Board Assembly
203WB04K10032 GE Frame Gasket
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB02K10195 GE Oven Gasket Frame Front
217WB63K10263 GE Side Panel
218WB63K10264 GE Side Panel
225WB07K10452 GE Oven Trim Vent Assembly
229WB63X39957 GE Service Leg Kit
230WB02K10237 GE Oven Anti-Tip Bracket
231WB02K10224 GE Oven Anti-Tip Brace
237WB28K10667 GE Pipe Supply Assembly
244WB26K10012 GE Oven Tangential Blower 45MM
272WB02T10034 GE Oven Body Side Support
277GEN WB10T10083
281WB07K10442 GE Access Panel
292PANEL ACCESS BACK
329WB02K10228 GE Flare Fitting Adapter
332WB02K10301 GE Nipple
333WB21K10137 GE Oven Regulator
578WB27T10662 GE Oven Capacitor
707WB02K10267 GE Wire Clip
784WB18K10070 GE Oven Line Cord
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
802WB21K10154 GE Oven Motorized Valve Lockout
875WB02T10194 GE Capacitor Bracket
903WB19K10038 GE Oven Shut Off Valve
905WB28K10662 GE Inlet Block
1100WR01X10590 GE Refrigerator Screw 10-16 Ab Pnt20 1/2 S
1150WB21K10153 GE Oven Safety Valve Assembly
1400WB27K10367 GE Oven Printed Circuit Board Reed Switch
1600WB02K10392 GE Oven Rod Extension
