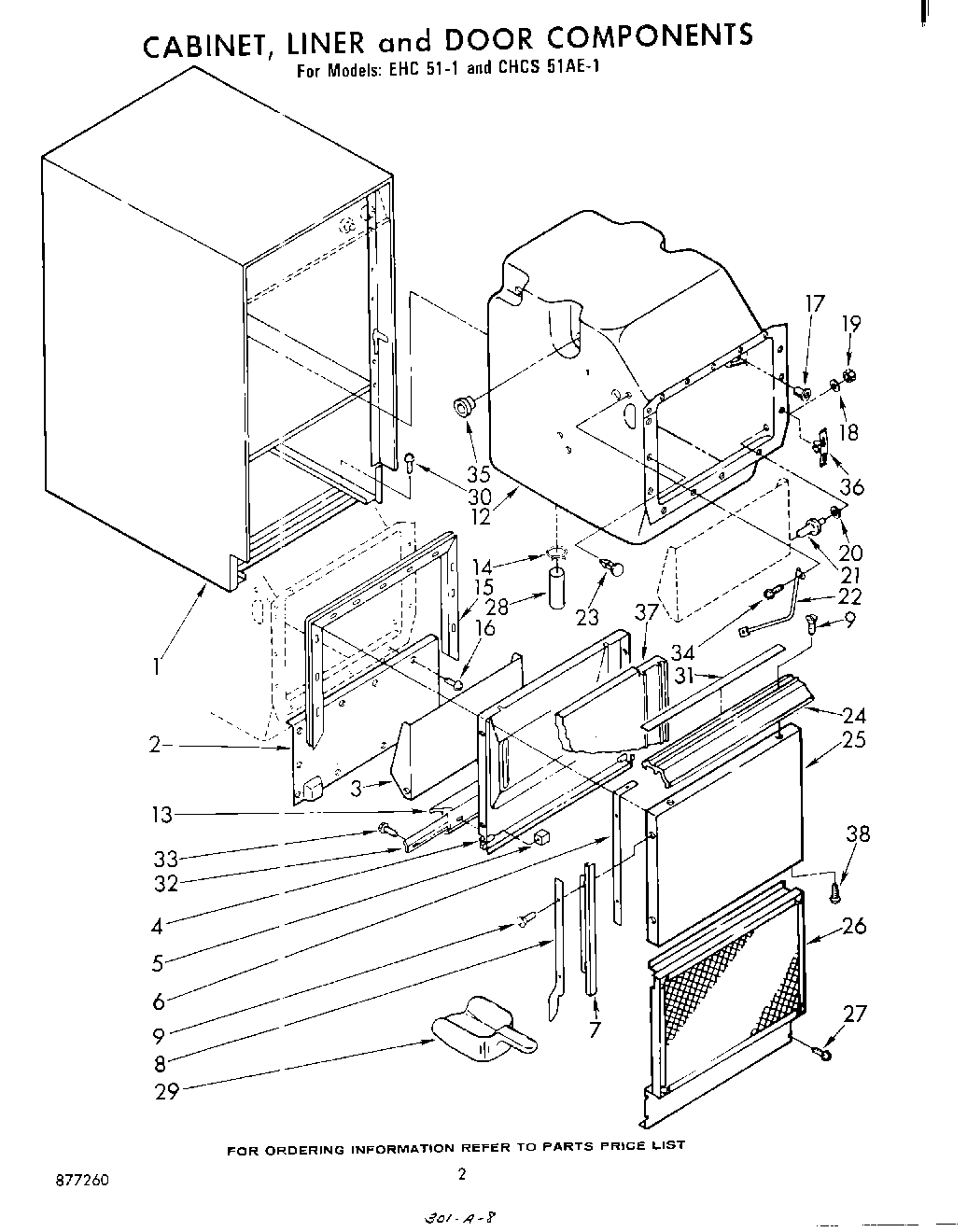

CHCS51AE1 02 – CABINET, LINER AND DOOR COMPONENTS,

Products

Position	Product
1	Shell
2	Front, Shell
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (R.S.)
7	Trim, Door (L.S.)
7	Trim, Door (Lower)
8	Rail, Door (Right Side)
8	Rail, Door (Left Side)
9	Screw, No.8-32 1/2 (6)
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	Gasket, Bottom
14	Clamp, Hose (2)
15	Gasket
16	WP965173 Whirlpool Dishwasher Screw
17	Nut, Molly
18	Washer
19	Nut, 1/4 Hex
20	Washer (2)
21	Stud (2)
22	Thermostat, Well Bin
23	Clip, Panel (2)
24	Pull, Door
25	Panel, Door (Stainless Steel)
25	Panel, Door (Almond & Harvest Gold)
25	Panel, Door (White & Black)
26	Grille
27	WPW10141625 Whirlpool Refrigerator Screw Assembly
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	Insert, Handle
32	Strip, Gasket
33	WP488729 Whirlpool Refrigerator Door Screw
34	Screw, 10 x 1/2
35	Nut, Well (3)
36	Clip, Panel (14)
37	Insulation, Door
38	WP978025 Whirlpool Refrigerator Valve
38	Screw, No.8-32 x 1/2
38	VALVE, ACCESS (5/8“)
38	Instructions, Installation
38	List, Parts
38	WPL 799351
38	212643 Whirlpool Refrigerator Permagum Sealer
38	WP505587 Whirlpool Refrigerator Sealer
38	Leveler (Thinner) (2oz.)
38	350942 Whirlpool Spray Paint
38	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
38	Instructions, Owner`s
38	WPL 799833
38	876370 Whirlpool Refrigerator Insulation
38	978026 Whirlpool Refrigerator Primary Valve
38	978027 Whirlpool Refrigerator Primary Valve
38	VALVE, ACCESS (1/2“)
38	978030 Whirlpool Refrigerator Valve
