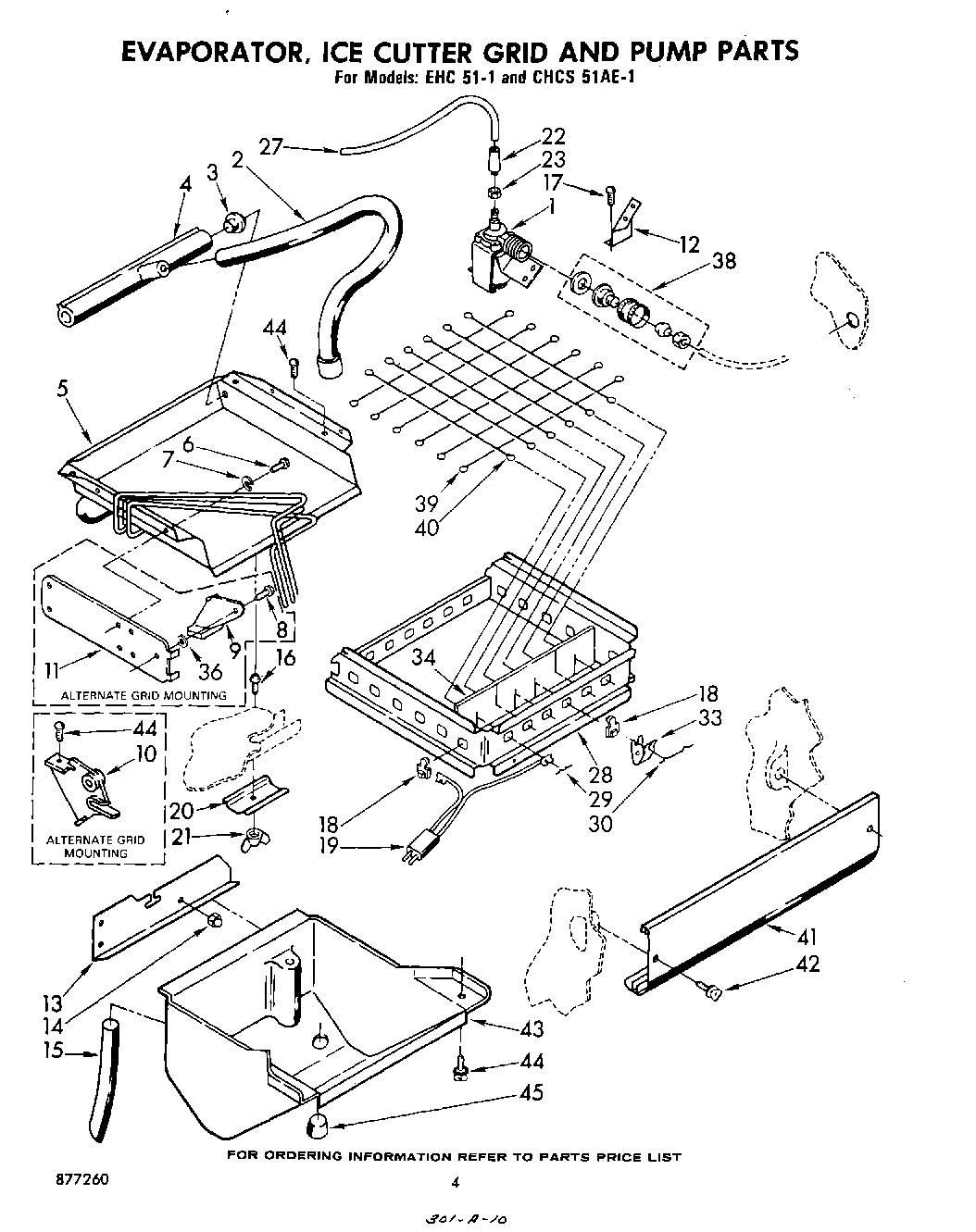

CHCS51AE1 03 – EVAPORATOR, ICE CUTTER GRID AND PUMP

Products

Position	Product
1	Valve, Complete Water
2	Hose, Dispenser
3	Plug (2)
4	Dispenser, Water
5	Evaporator
6	Screw, 10-32 x 3/8
7	Lockwasher
8	Screw, 10-32 x 1/2
9	Bracket, Grid Pan (2)
10	Bracket, Grid (2)
11	Rail, Evaporator (2)
12	Bracket, Water Valve
13	Shelf, Water Pan
14	Nut, Acorn (3)
15	Hose, 1/2 I.D. x 12“ (Bin To Pump)
16	Screw, 10-32 x 1/2
17	Screw, 1/4-20 x 1/2
18	Insulator, Grid Wires (38)
19	Harness, Wiring (Cutter Grid)
20	Clamp
21	Nut, Wing
22	4387491 Whirlpool Refrigerator Insert
23	WP627018 Whirlpool Refrigerator Nut
27	W10823511 Whirlpool Refrigerator Water Tube
28	Frame, Grid
29	Pin, Grid Wire (17)
30	Pin, Grid Wires (4)
33	Clip, Grid Wires (38)
34	Shield
36	Washer (2)
38	WPL 533238
39	Wire, Cutter (Includes 9 Wires)
40	Wire, Cutter (Includes 10 Wires)
41	Panel, Grid
42	Thumbscrew 10-32 x 5/8
43	Pan, Water
44	Screw, 10 x 1/2
45	Plug, Pan
