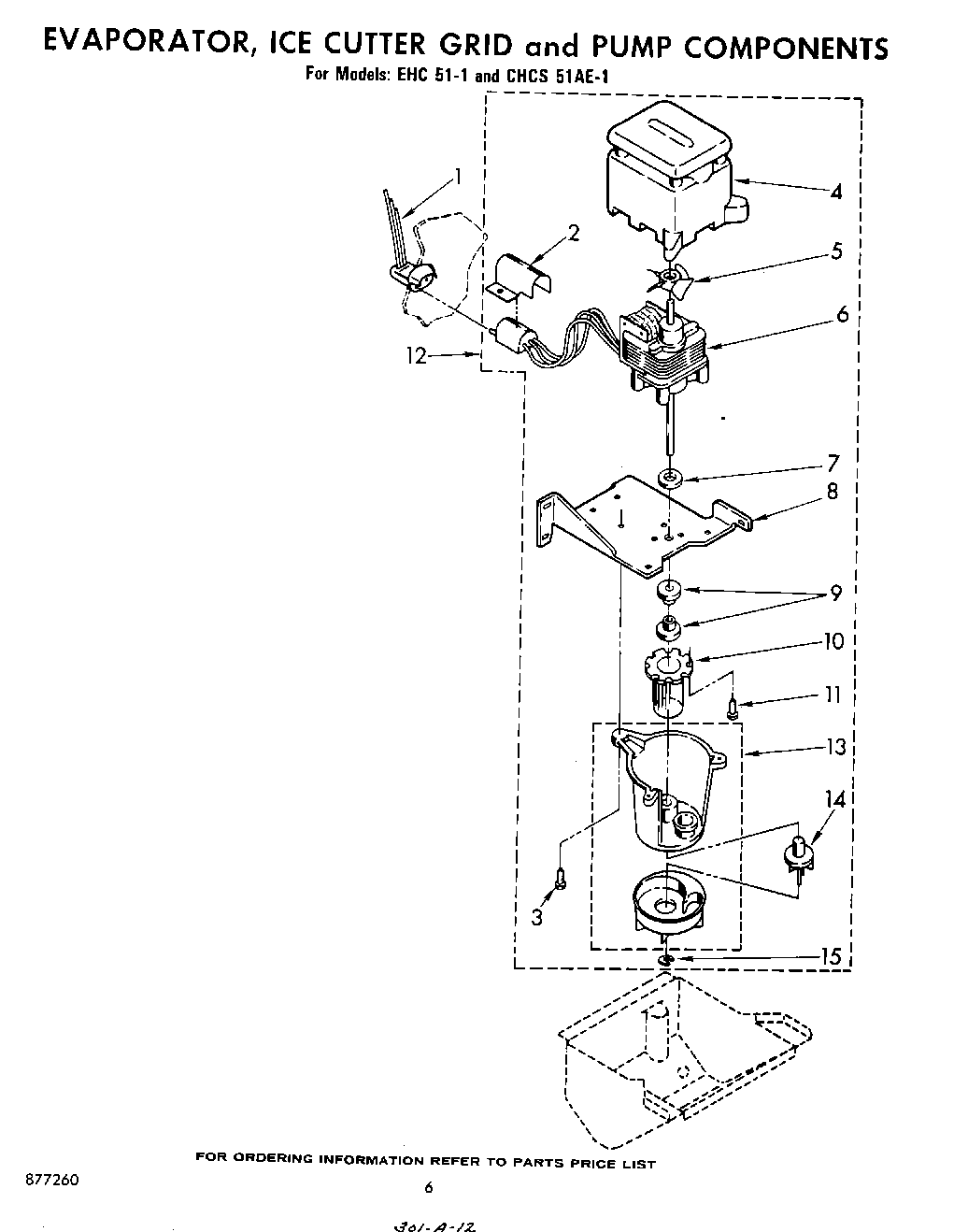

CHCS51AE1 04 – SECTION

Written by

Products

Position	Product
1	Harness, Wiring (Water Pump)
2	Sheild, Wiring
3	Screw, 8-18 x 3/4
4	Housing, Motor
5	Blade, Fan
6	Motor, Pump
7	Washer
8	Bracket, Pump
9	Grommet (2)
10	Sleeve
11	681390 Whirlpool Refrigerator Screw
12	WP756782 Whirlpool Refrigerator Pump
13	Pump, Assembly
14	Impeller (Includes Retaining Ring 15)
15	Ring, Retaining
