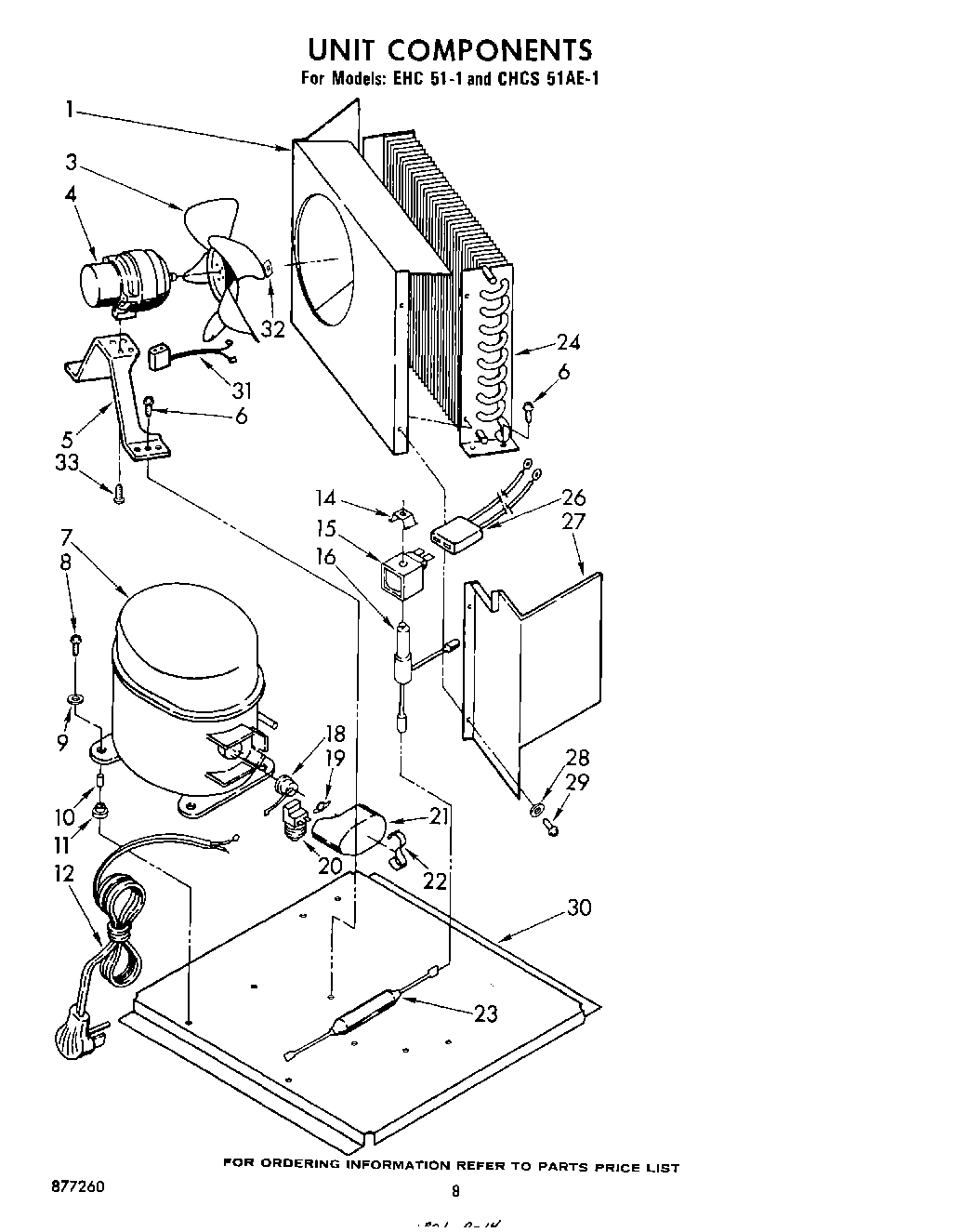

CHCS51AE1 06 – UNIT

Products

PositionProduct
1Shroud
3978655 Whirlpool Refrigerator Fan Blade
4Motor, Fan
5Bracket, Fan Motor
6Screw, 1/4-20 x 1/2
7Compressor
8Screw, 5/16-18 x 1-1/4 (4)
9Washer, Flat (4)
10Sleeve (4)
11Grommet (4)
12Cord, Power
14Retainer, Solenoid Coil
15Coil, Solenoid
16Valve, Solenoid Coil
18Overload
19Spring
20Relay, Start
21Case, Relay
22Cover Strap
23W10843121 Whirlpool Refrigerator Tube
24Condenser
26Harness, Wiring (Solenoid Coil)
27Deflector, Front
28Washer
29WP90767 Whirlpool Screw
30Base, Unit
31Harness, Wiring (Fan Motor)
32WP486692 Whirlpool Refrigerator Nut
33Screw, 8-36 x 1/2 (Included W/Fan Motor)
