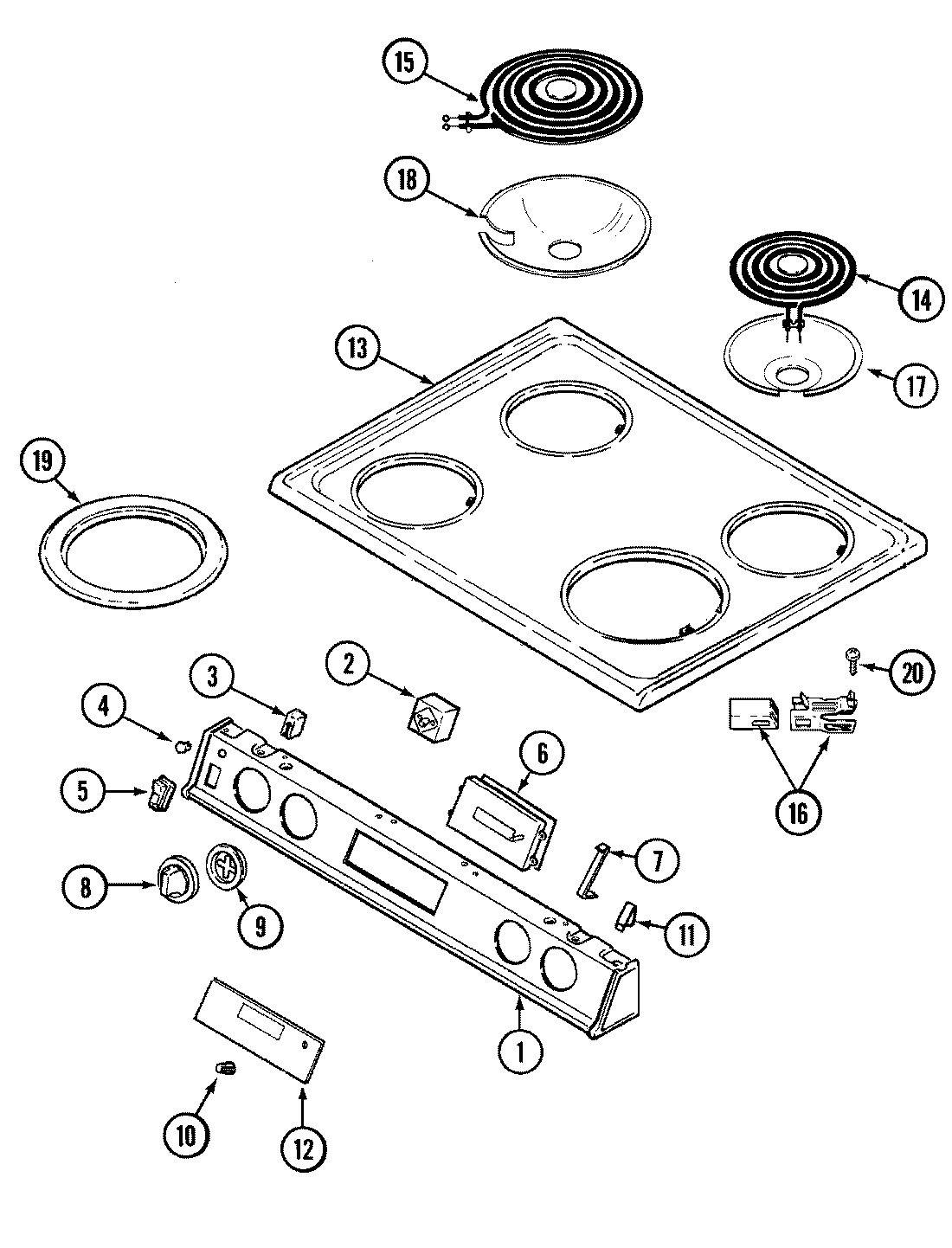

CHE9000ACB 05 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74001189
NI	MAY 5170P138-60
NI	MAY 5170P147-60
NI	MAY 16000327
NI	MAY 8111P025-60
NI	MAY 5175D067-60
1	MAY 7722P119-60
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	7403P067-60 Whirlpool Light Switch
6	MAY 7601P207-60
7	MAY 3801F222-45
7	WP59002061 Whirlpool Microwave Screw
8	MAY 7731P082-60
9	MAY 7740P052-60
10	WP7711P492-60 Whirlpool Clock Knob
11	MAY 7112P087-60
12	MAY 7403P336-60
13	MAY 2002W084-09
14	MAY Y04000056
15	MAY Y04000055
16	MAY 1430306K
17	MAY 7725P038-60
18	MAY 7725P039-60
19	MAY 7744P131-60
20	MAY 7118P013-60
20	MAY 7744P130-60
