CHE9000BCB 02 – DOOR/DRAWER (CHE9000BCB SER. PRE. 10-11)

Products

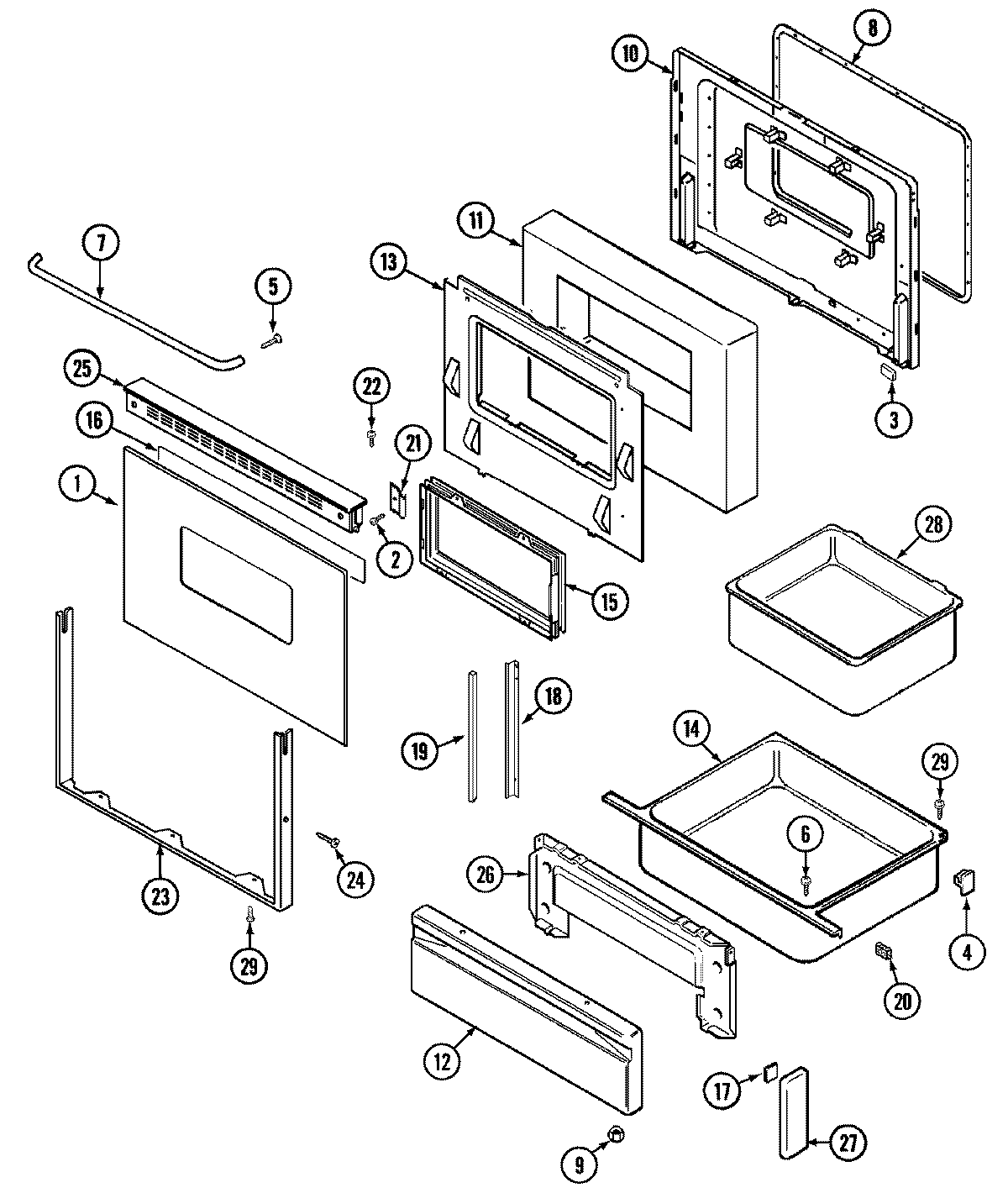

PositionProduct
1MAY 7902P361-60
2MAY 74001449
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
5SCREW
6WP7101P072-60 Whirlpool Screw
7MAY 7701P149-60
7MAY 7103P045-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10MAY 2402W209-19
10MAY 7103P136-60
10WP7103P114-60 Whirlpool Snap Nut
10NUT, SNAP (ROUND-WHT)
11MAY 4804F051-60
12MAY 2416W002-70
13MAY 3601F236-51
14MAY 3405F018-80
15MAY 7907P021-60
16MAY 8270P078-60
17TAPE
18MAY 3818F052-80
19MAY 7208P002-60
20MAY 7208P011-60
21MAY 3805F002-34
23MAY 7706P309-60
24WP98008545 Whirlpool Screw
25MAY 7706P305-60
26MAY 74001464
27MAY 7744P087-60
28MAY 74001458
29MAY 7101P290-60
