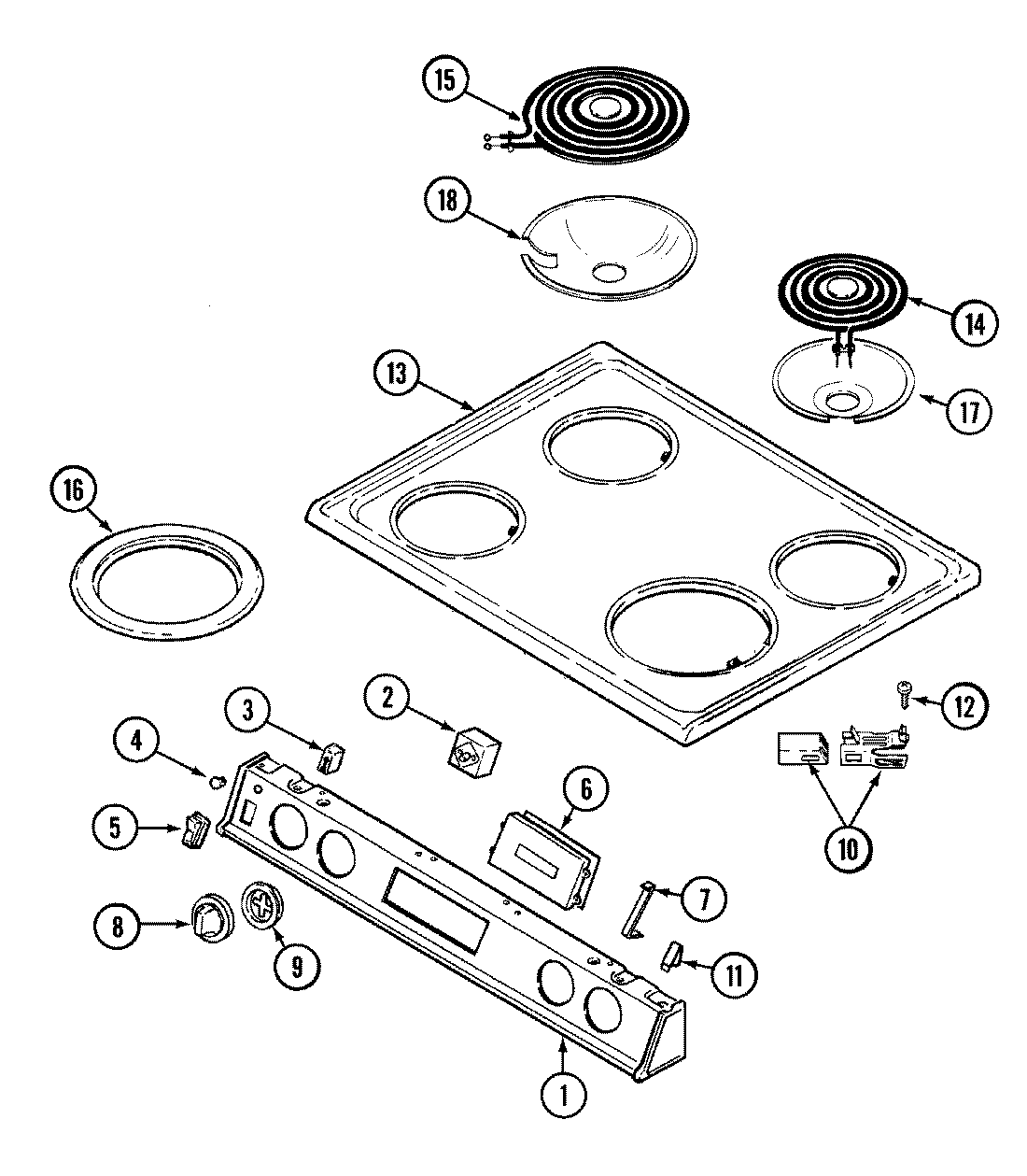

CHE9000BCB 06 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74001583
NI	MAY 16000327
NI	MAY 74001589
NI	MAY 8111P025-60
NI	MAY 5170P228-60
NI	MAY 74001596
NI	MAY 74001672
1	MAY 74001648
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	7403P067-60 Whirlpool Light Switch
6	MAY 74001640
7	WP59002061 Whirlpool Microwave Screw
7	MAY 74003191
8	MAY 7731P082-60
9	MAY 7740P052-60
10	MAY 1430306K
11	MAY 7112P087-60
12	MAY 7118P013-60
13	MAY 74001246
14	MAY 74004090
14	MAY 12500116
14	WPW10259868 Whirlpool Surface Heating Element
14	MAY 74001780
15	MP26MA Chromalox Electric Stove Range 8" Top Burner Unit 2600W 240V
15	MAY 12001230
15	MAY 74004089
15	MAY 12500115
16	MAY 7744P130-60
16	MAY 7744P131-60
17	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
17	MAY 7725P013-60
18	MAY Y04100393
18	WP74001479 Whirlpool Oven Drip Bowl
