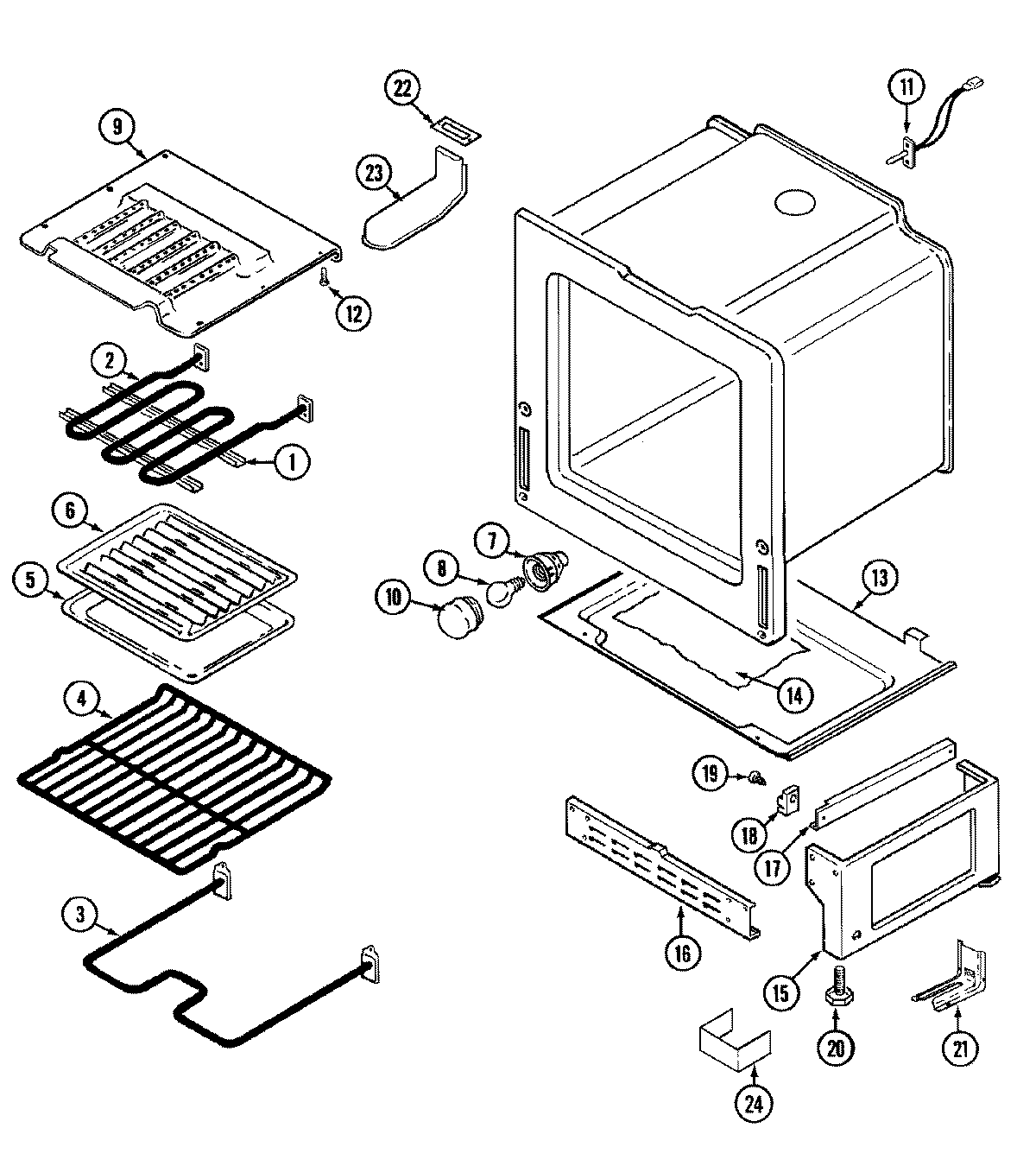

CHE9000BCE 04 – OVEN/BASE

Products

Position	Product
1	WP400021-1 Whirlpool Screw
1	MAY 3807F387-45
2	WPY04000059 Whirlpool Bake Element
3	MAY Y04000058
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	SCREW
7	MAY 74003125
7	WP7407P182-60 Whirlpool Lamp
8	RANGE ONLY 40W 120V APPL BULB
9	MAY 3601F237-47
10	WP9781049 Whirlpool Light Lens
11	MAY 7430P010-60
12	MAY 7101P290-60
13	MAY 3804F112-51
14	MAY 8312P058-60
15	MAY 74001705
15	MAY 74003003
16	MAY 4020F001-80
17	MAY 3406F028-51
17	RUNNER, DRAWER
18	MAY 8004P033-60
18	MAY 74003566
18	WP488130 Whirlpool Air Conditioner Nut
19	MAY 7101P334-60
20	W11665456 Whirlpool Range Level Foot
20	MAY 74001311
21	MAY 7101P289-60
21	MAY 3801F218-51
22	MAY 7201P060-60
23	MAY 4006W112-45
23	MAY 4005F453-51
24	MAY 4005F420-80
