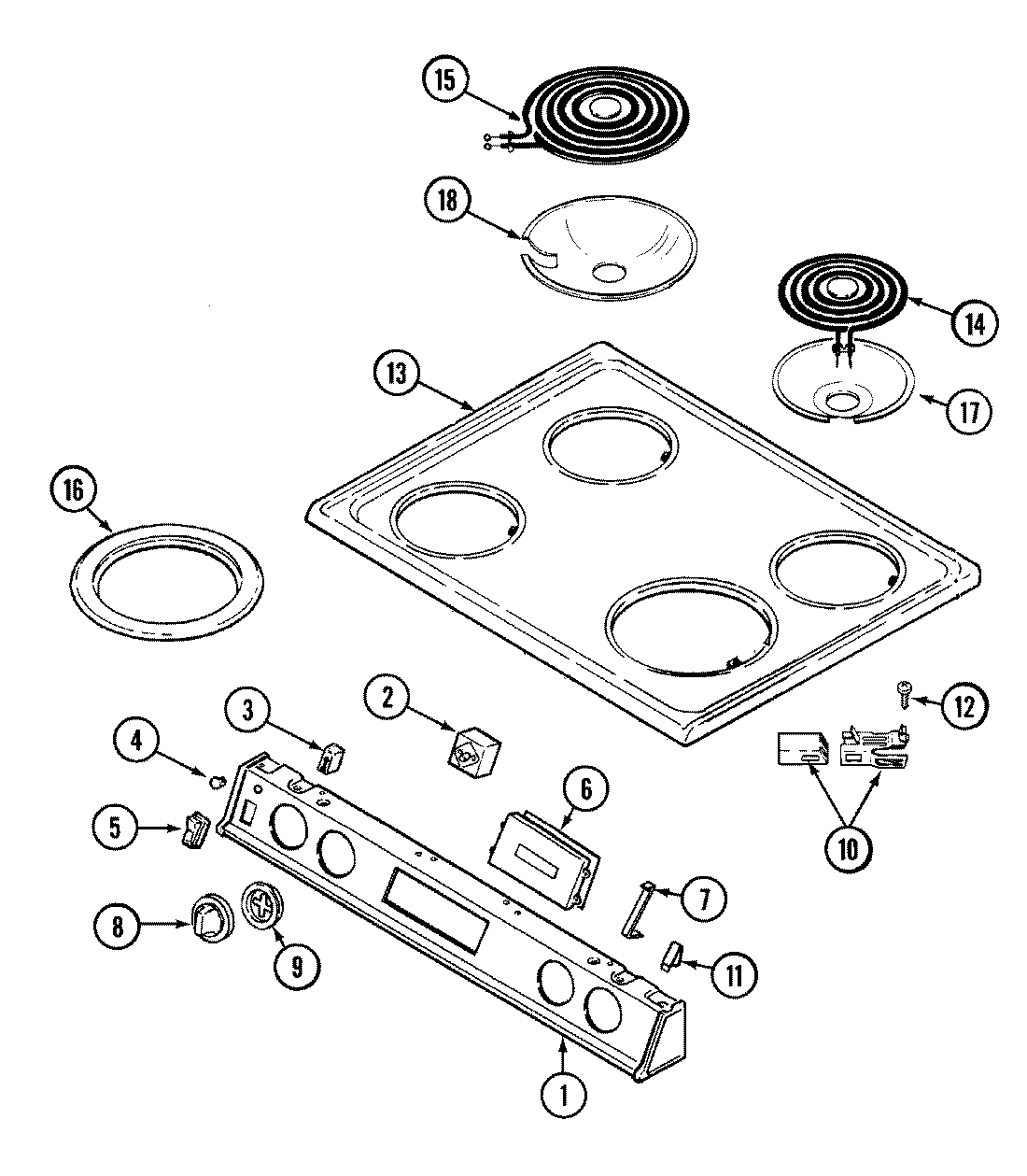

CHE9000BCE 05 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74001672
NI	MAY 74001596
NI	MAY 8111P025-60
NI	MAY 74001589
NI	MAY 16000327
NI	MAY 74001583
NI	MAY 5170P228-60
1	MAY 74001649
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P200-60
6	MAY 74001641
7	WP59002061 Whirlpool Microwave Screw
7	MAY 74003191
8	MAY 7731P081-60
9	MAY 7740P067-60
10	MAY 1430306K
11	MAY 7112P087-60
12	MAY 7118P013-60
13	MAY 74001248
14	WPW10259868 Whirlpool Surface Heating Element
14	MAY 74004090
14	MAY 74001780
15	MAY 74004089
15	MP26MA Chromalox Electric Stove Range 8" Top Burner Unit 2600W 240V
15	MAY 12001230
16	MAY 7744P130-60
16	MAY 7744P131-60
17	MAY 74001519
17	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18	MAY 74001518
