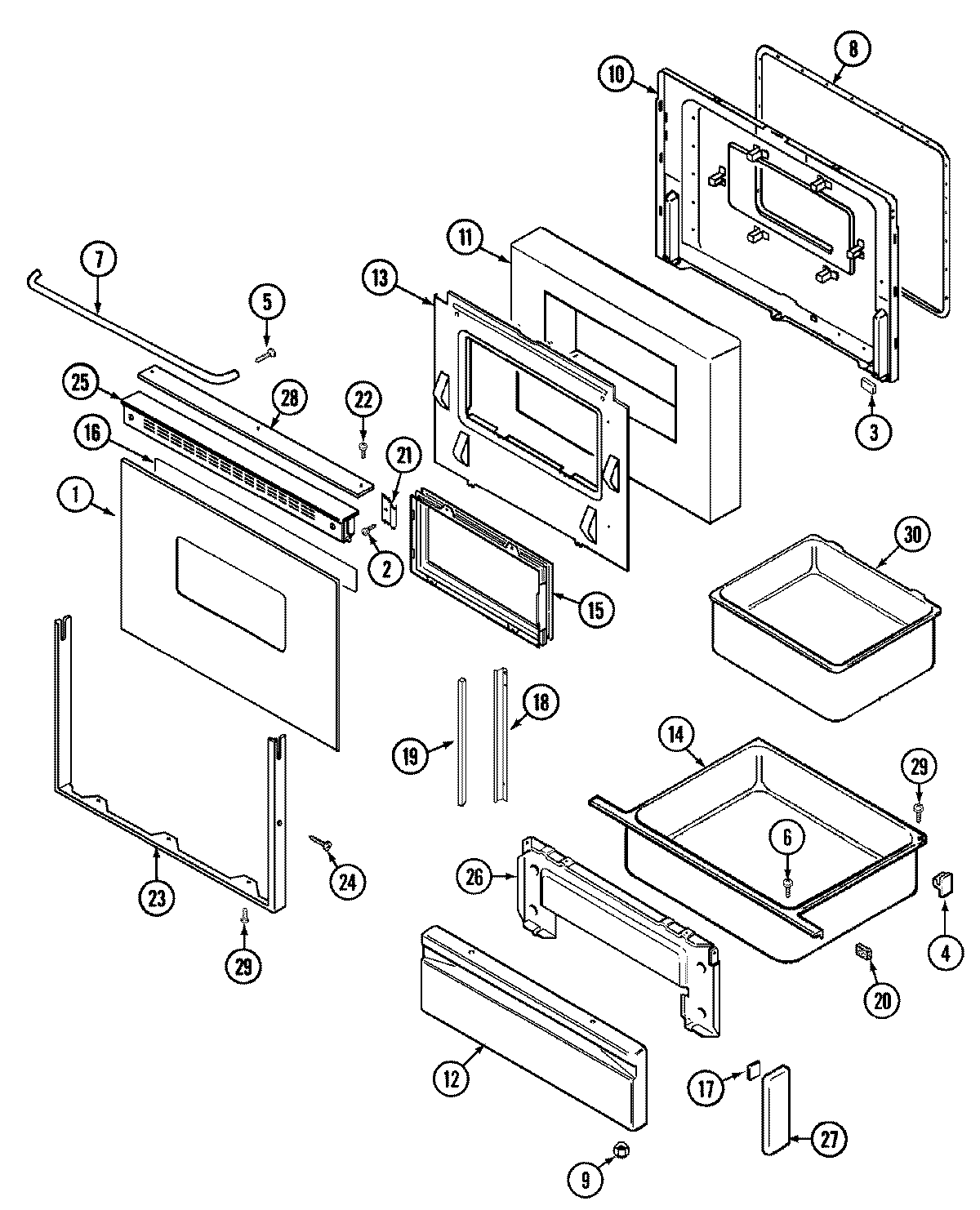

CHE9800ACE 02 – DOOR/DRAWER – Aparts

CHE9800ACE 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P360-60
2	MAY 74001449
4	WP8004P026-60 Whirlpool Support
5	SCREW
6	WP7101P072-60 Whirlpool Screw
7	MAY 7103P045-60
7	MAY 7701P150-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 7103P136-60
10	NUT, SNAP (ROUND-WHT)
10	WP7103P114-60 Whirlpool Snap Nut
10	MAY 2402W209-19
11	MAY 4804F051-60
12	MAY 2416W002-71
13	MAY 8010P085-60
13	MAY 3601F236-51
14	MAY 3405F018-80
15	MAY 7907P021-60
16	MAY 8270P078-60
17	TAPE
18	MAY 3818F052-80
19	MAY 7208P002-60
20	MAY 8016P016-60
21	MAY 3805F002-34
23	MAY 7706P298-60
23	MAY 7706P310-60
24	WP98008544 Whirlpool Screw Assembly
25	WP3387230 Whirlpool Screw
25	MAY 7744P129-60
25	MAY 7706P306-60
26	MAY 74001464
27	MAY 7744P090-60
28	MAY 7728P094-60
28	MAY 74001278
29	MAY 7101P290-60
30	MAY 74001458
