CHE9800ACE 04 – OVEN/BASE – Aparts

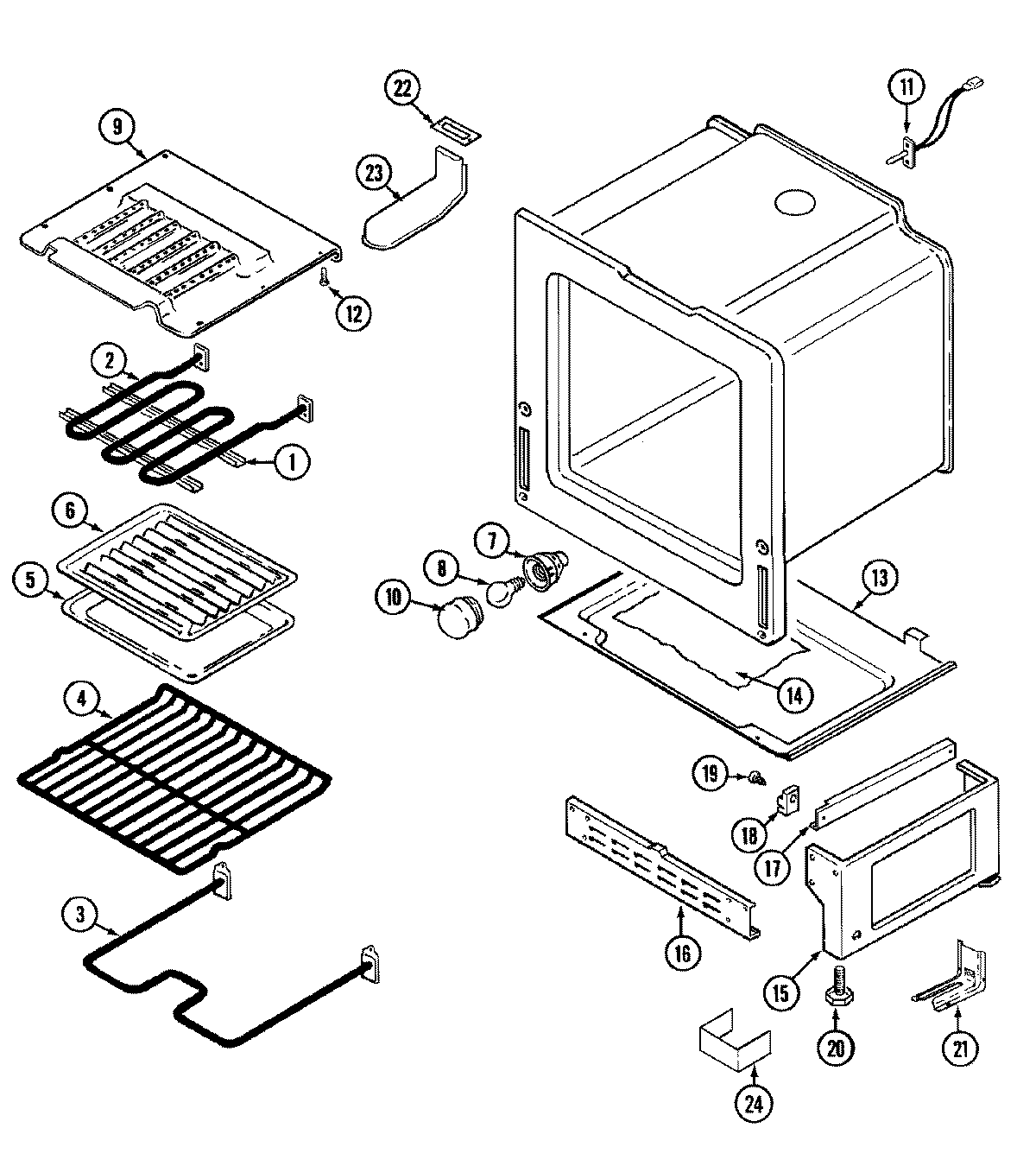

CHE9800ACE 04 – OVEN/BASE

Products

Position	Product
1	MAY 3807F387-45
1	WP400021-1 Whirlpool Screw
2	WPY04000059 Whirlpool Bake Element
3	MAY Y04000058
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	WP7407P182-60 Whirlpool Lamp
8	RANGE ONLY 40W 120V APPL BULB
9	MAY 3601F237-47
10	WP9781049 Whirlpool Light Lens
11	MAY 7430P010-60
12	MAY 7101P290-60
13	MAY 3804F112-51
14	MAY 8312P058-60
15	MAY 74001705
16	MAY 4020F001-80
17	MAY 3406F028-51
18	MAY 8004P033-60
19	MAY 7101P334-60
20	MAY 74001311
21	MAY 3801F218-51
21	MAY 7101P289-60
22	MAY 7201P060-60
23	MAY 4005F453-51
23	MAY 4006W112-45
24	MAY 4005F420-80
