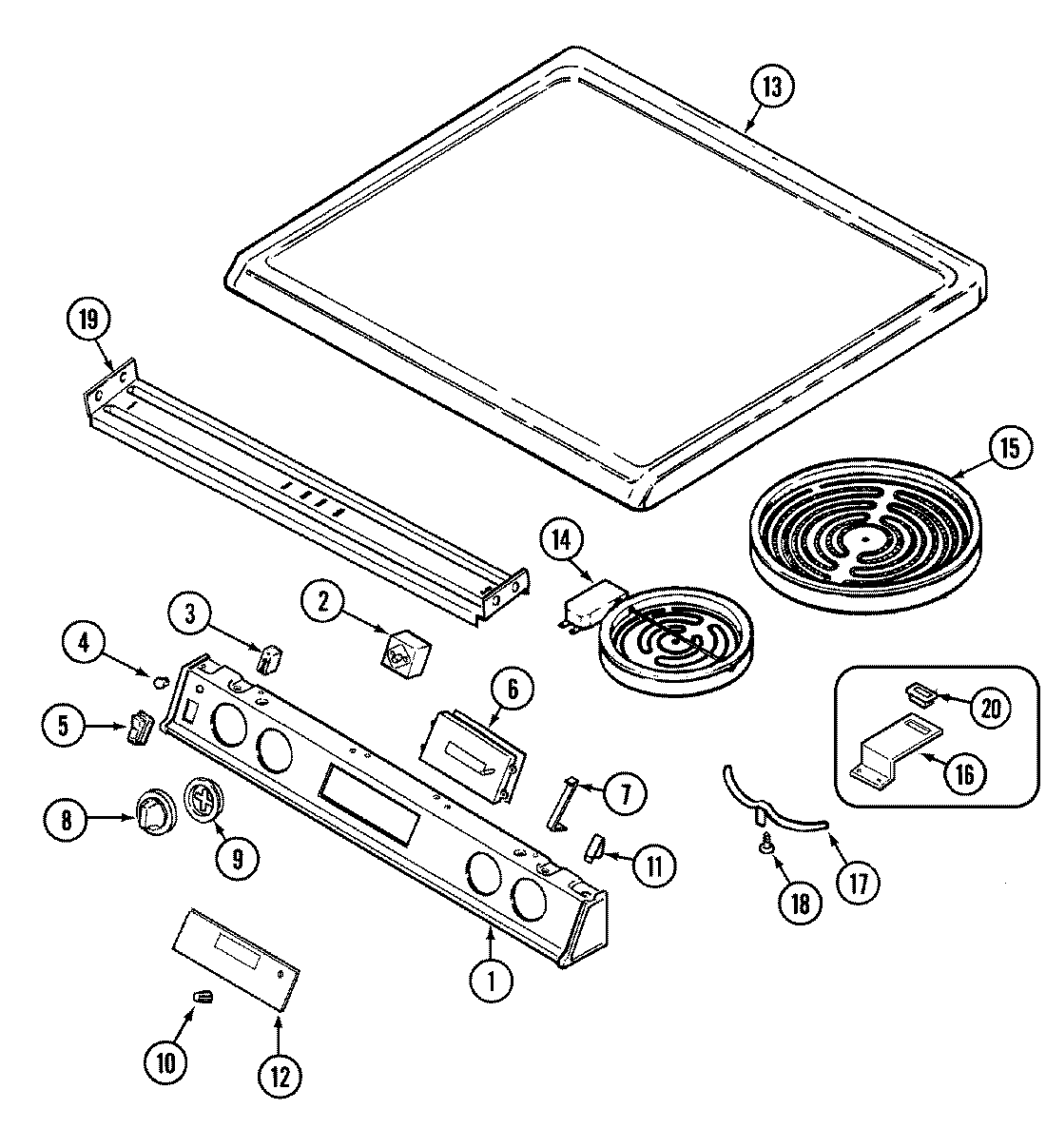

CHE9800ACE 05 – TOP ASSY. (WHT)

Products

Position	Product
NI	MAY 5195D116-60
NI	MAY 16000327
NI	MAY 5175D076-60
NI	MAY 5170P138-60
NI	MAY 5170P147-60
NI	MAY 8111P025-60
1	MAY 7722P124-60
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P200-60
6	MAY 7601P207-60
7	MAY 3801F222-45
8	MAY 7731P081-60
9	MAY 7740P067-60
10	WP7711P492-60 Whirlpool Clock Knob
11	MAY 7712P087-60
12	MAY 7403P341-60
13	MAY 74001184
13	MAY 8308P002-60
13	WA906B Whirlpool Cooktop Glass Scraper
14	MAY Y04000064
14	MAY 7406P074-60
15	MAY Y04000063
15	MAY 7406P073-60
16	MAY 3801F312-45
17	MAY 8004P015-60
18	WP59002061 Whirlpool Microwave Screw
19	MAY 3807F390-45
20	MAY 7407P098-60
