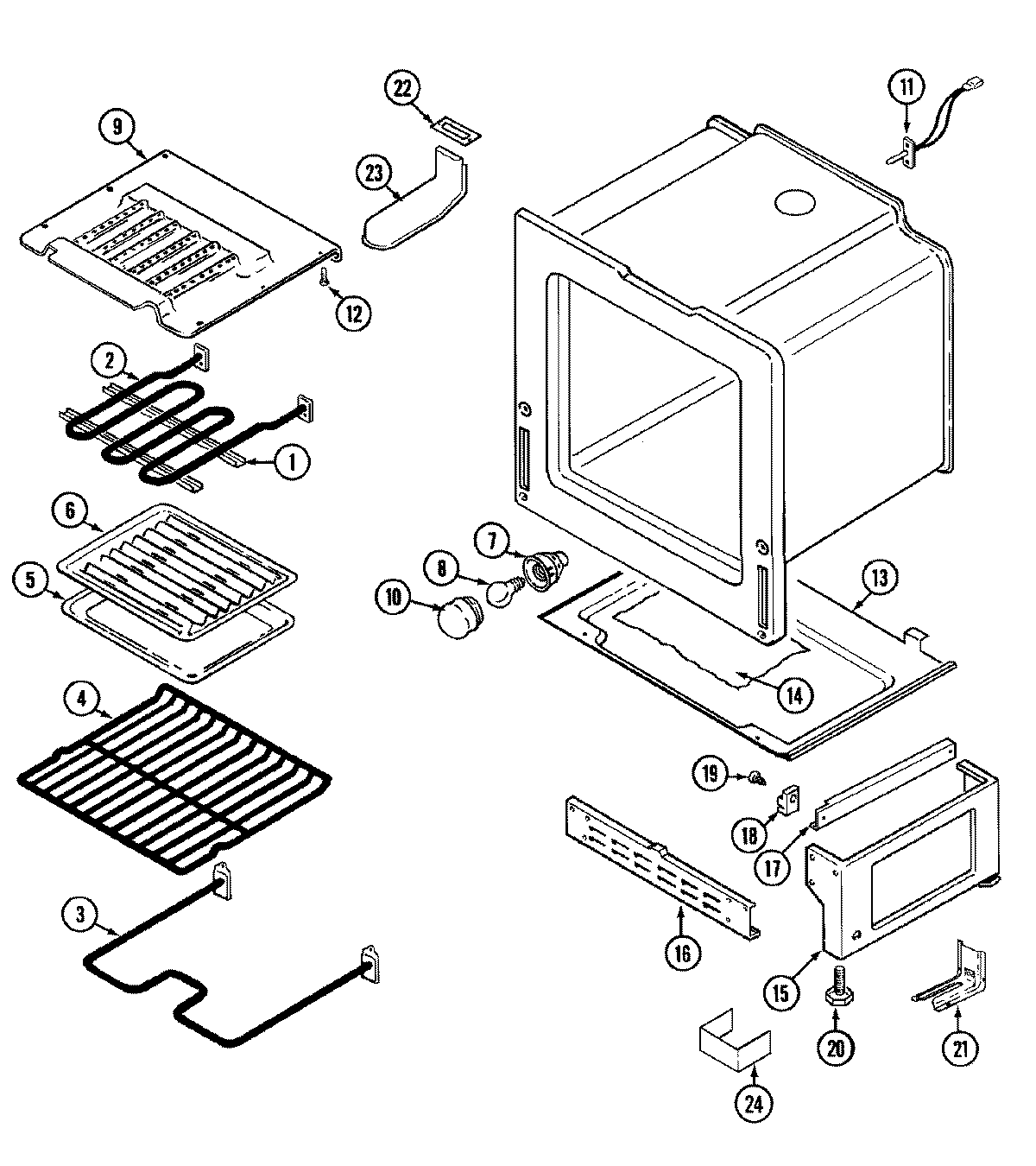

CHE9800BCE 05 – OVEN/BASE

Products

Position	Product
1	MAY 3807F387-45
1	MAY 7101P334-60
2	WPY04000059 Whirlpool Bake Element
3	MAY 7406P092-60
4	MAY 7801P046-60
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003125
7	WP7407P182-60 Whirlpool Lamp
8	RANGE ONLY 40W 120V APPL BULB
9	MAY 3601F237-47
10	WP9781049 Whirlpool Light Lens
11	MAY 7430P010-60
13	MAY 3804F112-51
14	MAY 8312P058-60
15	MAY 4020W015-80
15	MAY 7101P290-60
15	MAY 74003003
16	MAY 4020F001-80
17	MAY 3406F028-51
17	RUNNER, DRAWER
18	MAY 8004P033-60
18	MAY 74003566
18	WP488130 Whirlpool Air Conditioner Nut
19	SCREW
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY 7101P316-60
20	W11665456 Whirlpool Range Level Foot
21	MAY 3801F218-51
21	MAY 7101P289-60
22	MAY 7201P060-60
23	MAY 74001674
23	MAY 4006W112-45
24	MAY 4005F420-80
