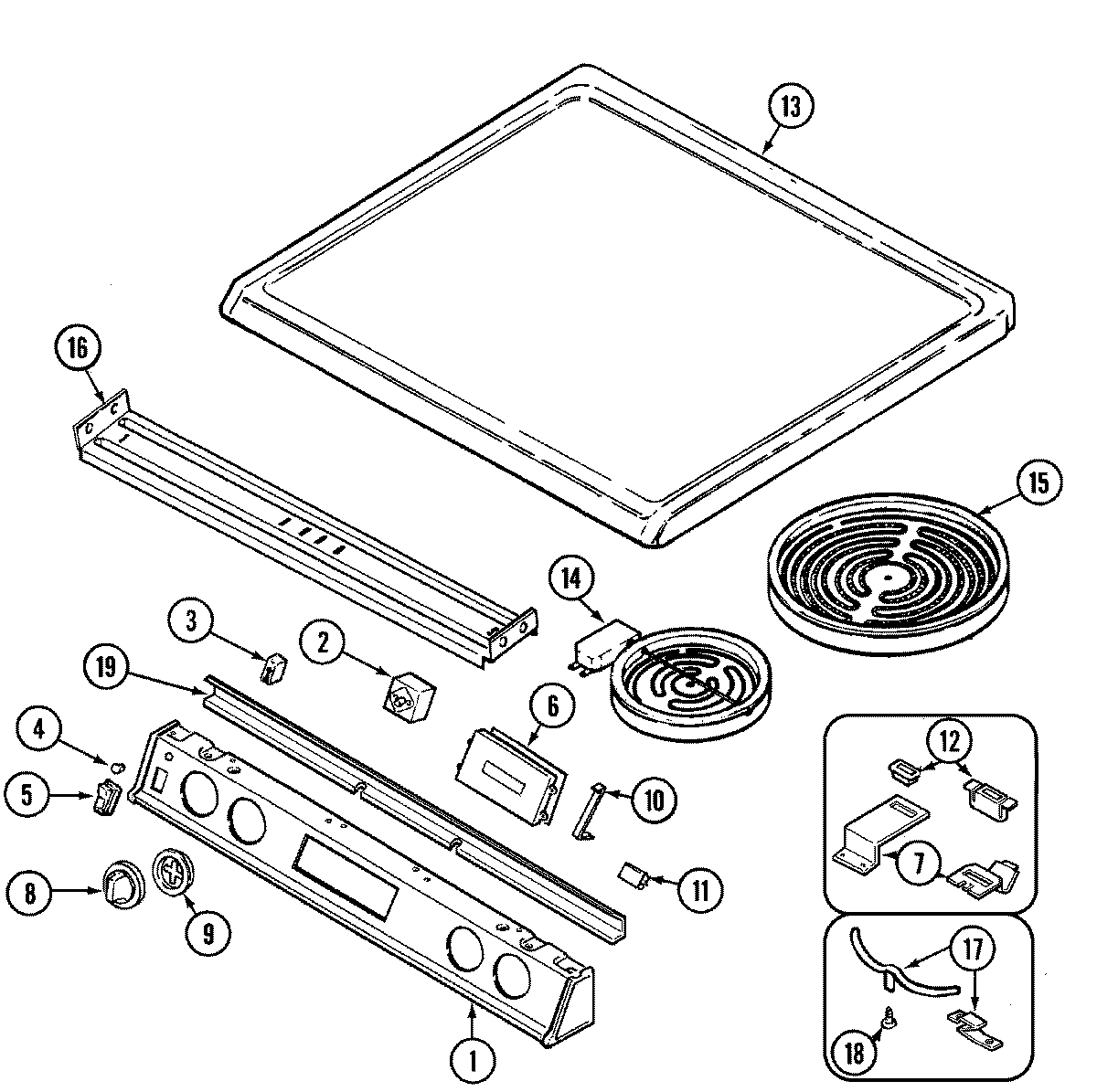

CHE9800BCM 05 – TOP ASSEMBLY (CHE9800BCM)

Products

Position	Product
NI	MAY 5175D076-60
NI	MAY 74001180
NI	MAY 16000327
NI	MAY 74001672
NI	MAY 74001595
NI	MAY 8308P002-60
NI	MAY 74001583
NI	MAY 5170P228-60
NI	WA906B Whirlpool Cooktop Glass Scraper
1	MAY 74002676
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P358-60
6	MAY 74002674
7	MAY 3801F312-45
7	MAY 74002978
8	MAY 7737P046-60
9	MAY 74002677
10	MAY 74003191
11	MAY 7112P087-60
12	MAY 7407P098-60
12	MAY 74003043
13	MAY 74002675
13	MAY 74003340
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY 74002652
16	MAY 3807F390-45
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 74002614
17	MAY 74002976
18	SCREW, 8 X 1/2
18	WP59002061 Whirlpool Microwave Screw
19	MAY 74002647
