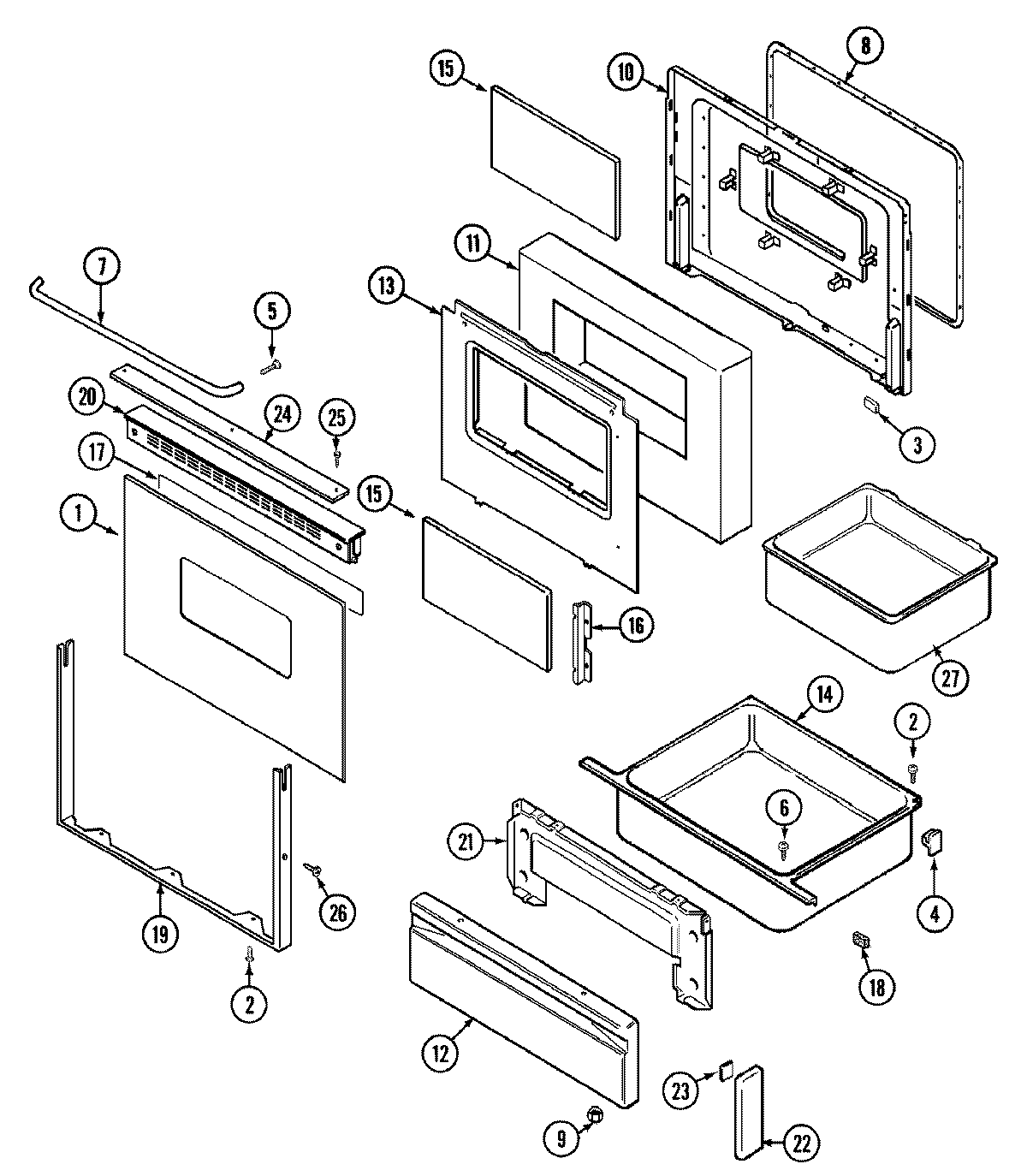

CHE9830BCB 03 – DOOR/DRAWER (SER. PRE. 11)

CHE9830BCB 03 – DOOR/DRAWER (SER. PRE. 11)

Written by

in

CHE9830BCB 03 – DOOR/DRAWER (SER. PRE. 11)

Products

PositionProduct
1MAY 7902P361-60
3MAY 8010P085-60
4WP488130 Whirlpool Air Conditioner Nut
4MAY 74003566
4WP8004P026-60 Whirlpool Support
5SCREW
6WP7101P072-60 Whirlpool Screw
7MAY 7701P149-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10NUT, SNAP (ROUND-WHT)
10MAY 2402W209-19
10MAY 74003244
10MAY 7103P136-60
10WP7103P114-60 Whirlpool Snap Nut
11MAY 74001842
12MAY 2416W002-70
12PANEL, DRAWER (BLK)
13MAY 74001843
14MAY 71003042
14MAY 3405F018-80
15MAY 74001841
16MAY 74001844
17MAY 8270P078-60
18MAY 8010P016-60
19MAY 7706P309-60
20MAY 7706P305-60
20SCREW
21LINING, DRAWER PANEL
21MAY 74001464
22MAY 7744P092-60
23TAPE
26WP98008545 Whirlpool Screw
27MAY 74001458
