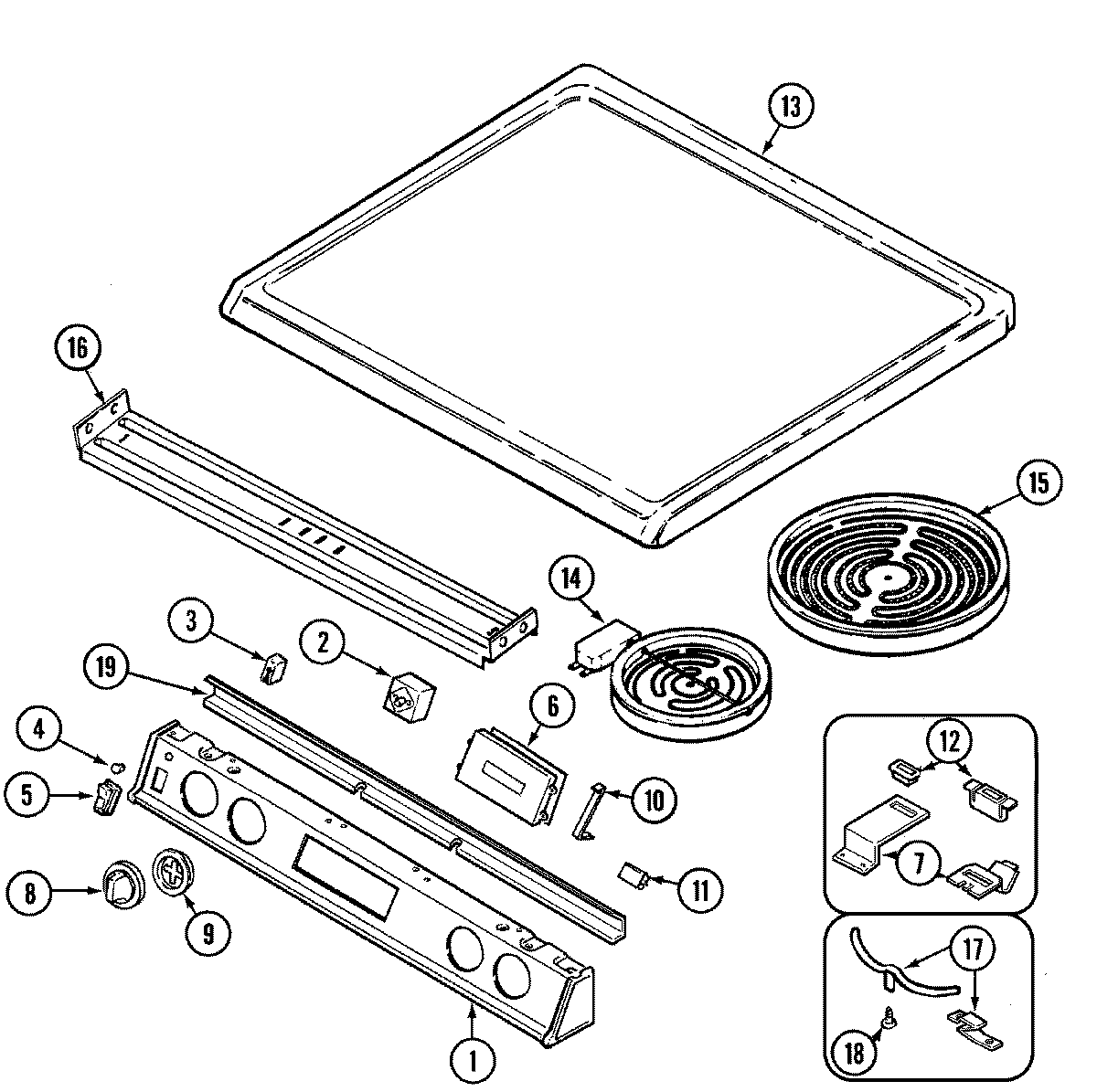

CHE9830BCB 06 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74001758
NI	MAY 5170D122-60
NI	MAY 5175D076-60
NI	MAY 16000327
NI	MAY 74001583
NI	MAY 5170P228-60
NI	MAY 74001869
1	MAY 74001648
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	7403P067-60 Whirlpool Light Switch
6	MAY 74001866
7	MAY 3801F312-45
7	MAY 74002978
8	MAY 7731P082-60
9	MAY 7740P052-60
10	MAY 74003191
10	MAY 7101P346-60
11	MAY 7112P087-60
12	MAY 74003043
12	MAY 7407P098-60
13	MAY 74001867
13	MAY 74003028
13	MAY 8308P002-60
13	WA906B Whirlpool Cooktop Glass Scraper
14	MAY Y04000064
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
14	MAY 7406P074-60
15	MAY Y04000063
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY 74002652
15	MAY 7406P073-60
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 3807F390-45
17	MAY 74002976
17	MAY 74002614
18	WP59002061 Whirlpool Microwave Screw
18	SCREW, 8 X 1/2
19	MAY 74002647
