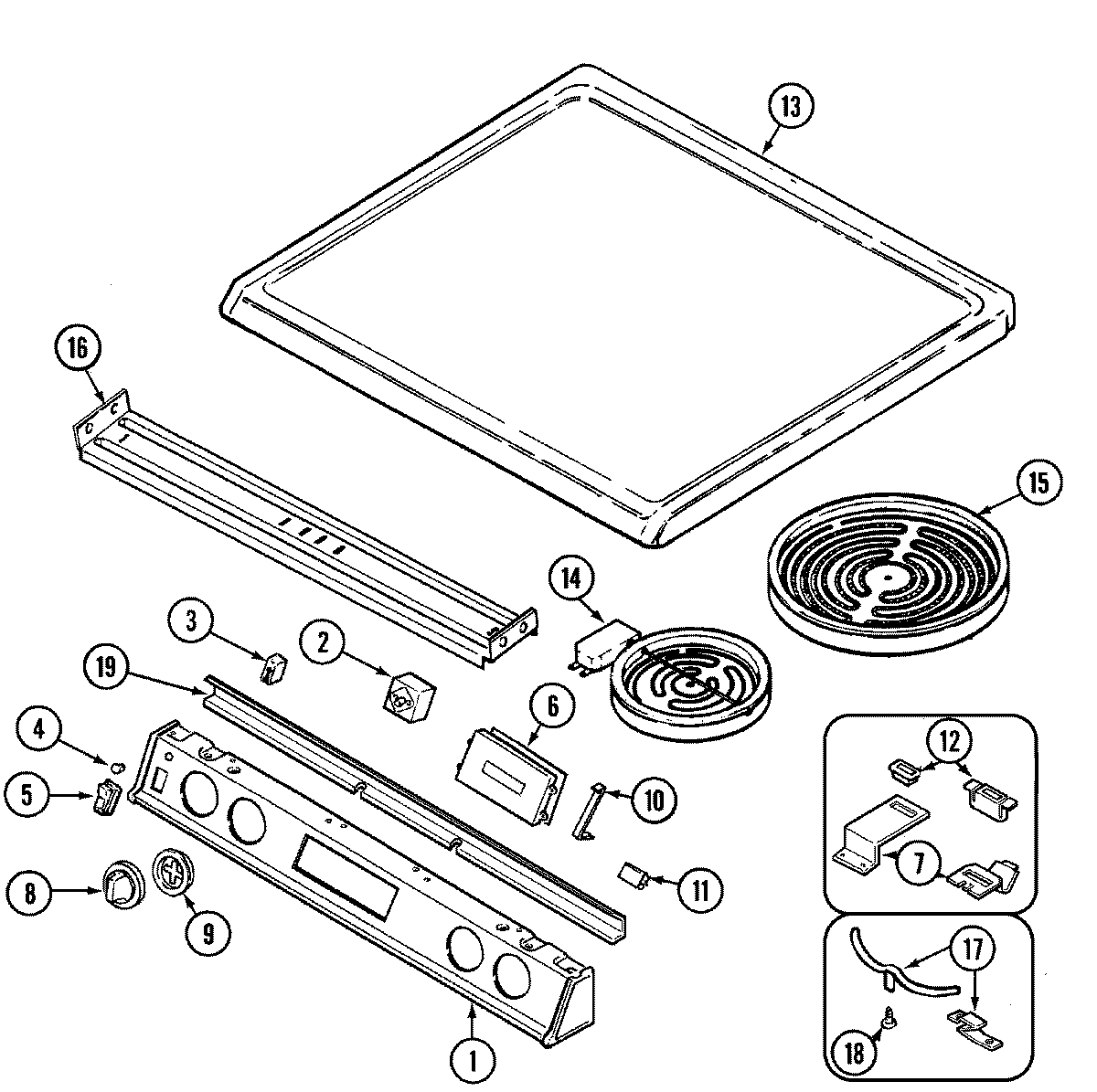

CHE9830BCE 06 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 5170D122-60
NI	MAY 16000327
NI	MAY 74001583
NI	MAY 5170P228-60
NI	MAY 74001869
NI	MAY 5175D076-60
NI	MAY 74001758
1	MAY 74001649
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P200-60
6	MAY 74001868
7	MAY 74002978
7	MAY 3801F312-45
8	MAY 7731P081-60
9	MAY 7740P067-60
10	MAY 7101P346-60
10	MAY 74003191
11	MAY 7112P087-60
12	MAY 7407P098-60
12	MAY 74003043
13	MAY 74001184
13	WA906B Whirlpool Cooktop Glass Scraper
13	MAY 8308P002-60
13	MAY 74003024
14	MAY Y04000064
14	MAY 7406P074-60
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
15	MAY Y04000063
15	MAY 7406P073-60
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY 74002652
16	MAY 3807F390-45
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 74002614
17	MAY 74002976
18	WP59002061 Whirlpool Microwave Screw
18	SCREW, 8 X 1/2
19	MAY 74002647
