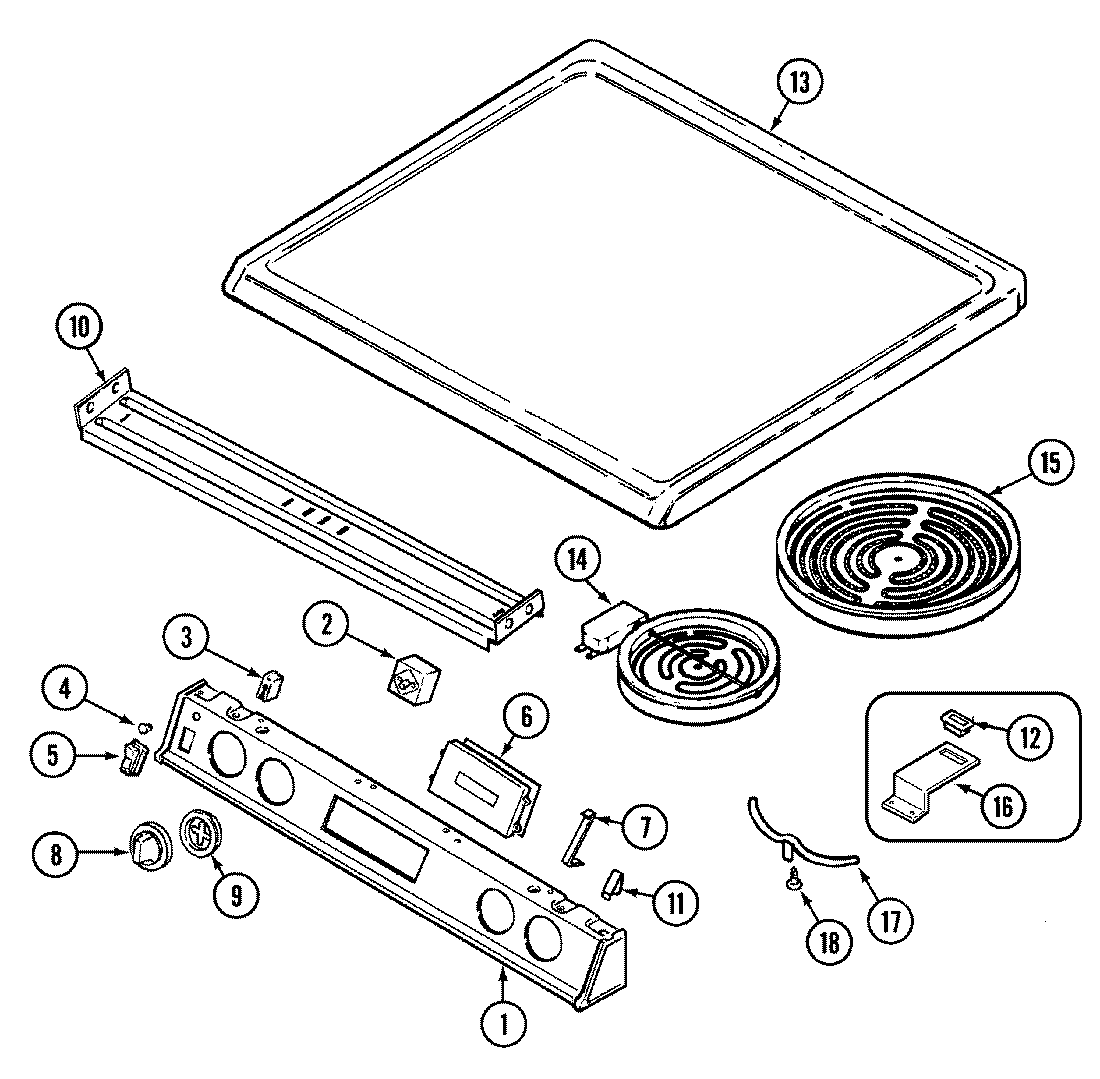

CHEA700BCE 05 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 16002079
NI	MAY 74001673
NI	MAY 5195D097-60
NI	MAY 5175D075-60
NI	MAY 74001583
NI	MAY 5170P228-60
1	MAY 74001646
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P200-60
6	MAY 74001637
7	MAY 3801F349-51
8	MAY 7731P081-60
9	MAY 7740P023-60
10	MAY 7711P432-60
11	MAY 7112P087-60
12	MAY 7407P098-60
13	MAY 5706S056-81
13	MAY 8308P002-60
13	WA906B Whirlpool Cooktop Glass Scraper
14	MAY 7406P074-60
14	MAY Y04000064
15	MAY Y04000063
15	MAY 7406P073-60
16	MAY 3801F312-45
17	MAY 8004P015-60
18	WP59002061 Whirlpool Microwave Screw
