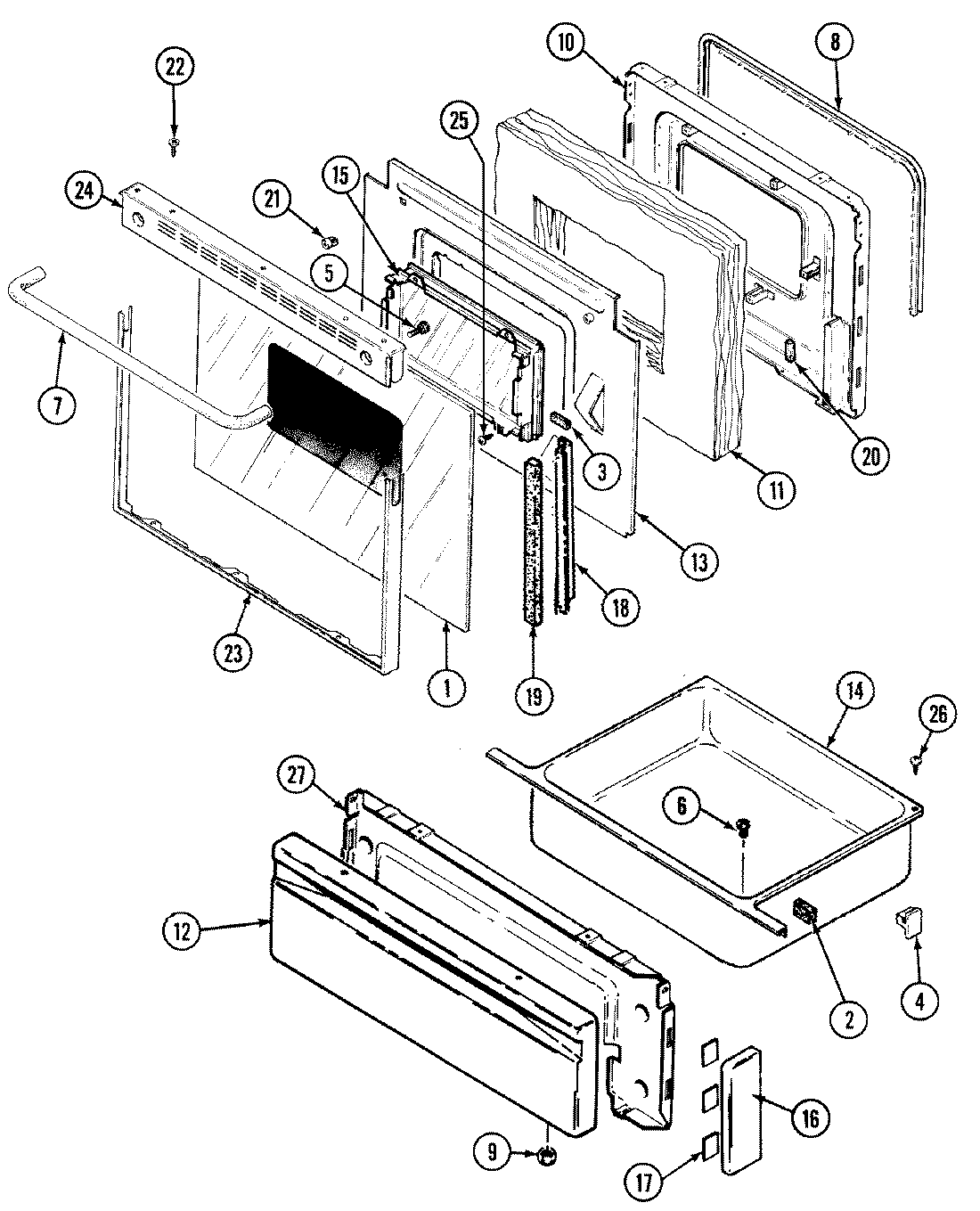

CHG9800AAB 02 – DOOR/DRAWER
Written by
in
CHG9800AAB 02 – DOOR/DRAWER
Products
Position
Product
1
MAY 7902P361-60
1
TAPE, FOIL (3“ WIDE)
2
MAY 8010P086-60
3
MAY 8010P085-60
4
WP8004P026-60 Whirlpool Support
5
SCREW
6
WP4159193 Whirlpool Screw
7
MAY 7701P149-60
7
MAY 7701P127-60
8
GASKT-DOOR OVEN
9
WPW10131078 Whirlpool Nut Assembly
10
MAY 2402W202-19
11
MAY 4804F034-60
12
MAY 2416F047-70
13
MAY 3601F232-45
14
MAY 3405F017-80
15
MAY 7907P021-60
15
MAY 3805F002-34
16
MAY 7744P087-60
17
MAY 8270P095-60
18
MAY 3818F052-51
19
MAY 7208P002-60
20
MAY 7208P011-60
21
MAY 7103P045-60
22
WP98008545 Whirlpool Screw
22
MAY 7101P308-60
23
MAY 7101P321-60
23
MAY 7706P294-60
24
MAY 7744P114-60
24
MAY 7744P088-60
25
MAY 7101P290-60
26
MAY 7101P329-60
27
MAY 2404F037-80
←
