CHG9800BAB 02 – DOOR/DRAWER (SER. PRE. 12)

CHG9800BAB 02 – DOOR/DRAWER (SER. PRE. 12)

Written by

in

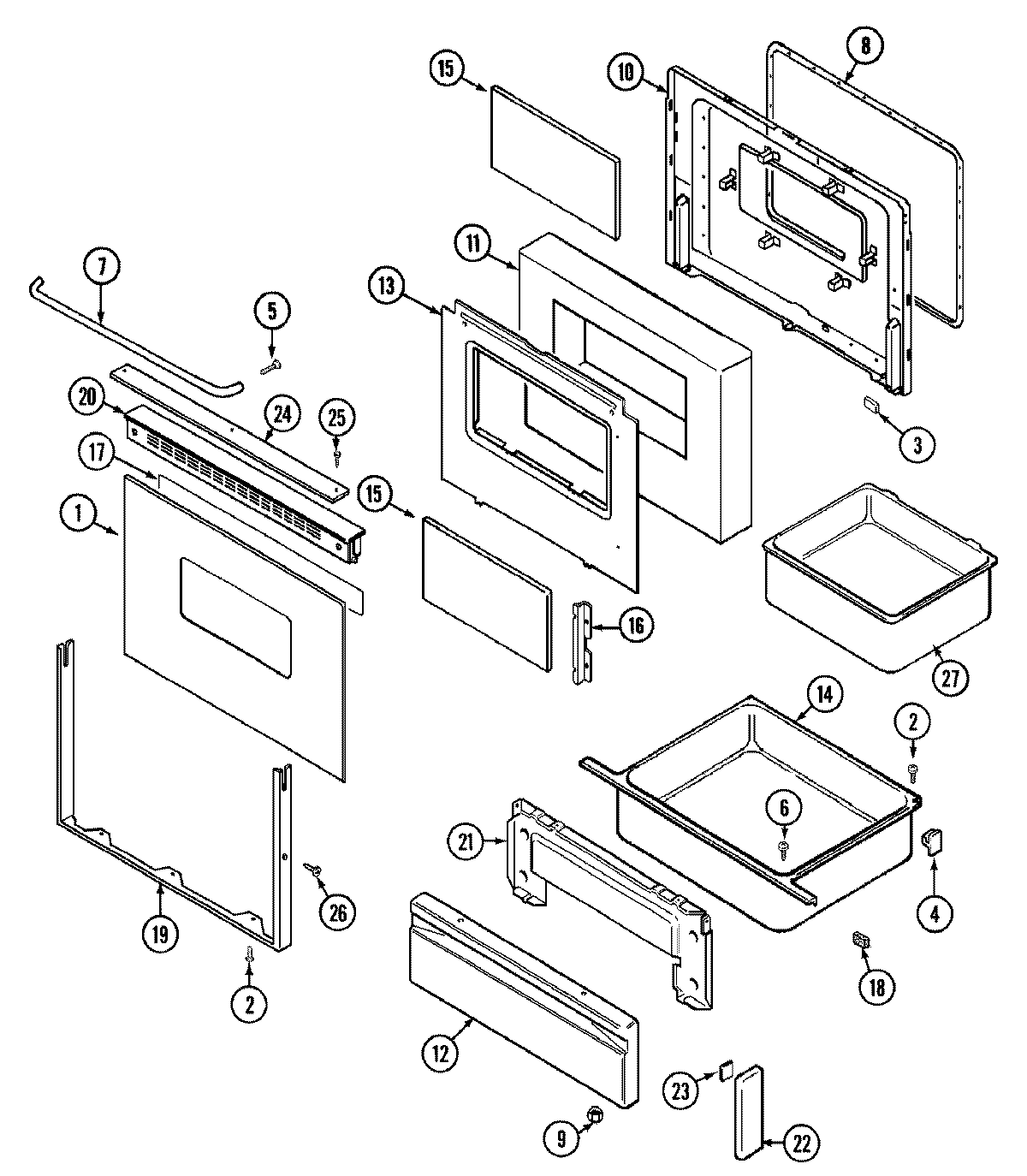

CHG9800BAB 02 – DOOR/DRAWER (SER. PRE. 12)

Products

PositionProduct
1MAY 7902P361-60
3MAY 8010P085-60
4WP488130 Whirlpool Air Conditioner Nut
4MAY 74003566
4WP8004P026-60 Whirlpool Support
5SCREW
5MAY 74001521
6WP7101P072-60 Whirlpool Screw
7MAY 7701P149-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10NUT, SNAP (ROUND-WHT)
10MAY 2402W209-19
10MAY 74003244
10MAY 7103P136-60
10WP7103P114-60 Whirlpool Snap Nut
11MAY 74001842
12PANEL, DRAWER (BLK)
12MAY 2416W002-70
13MAY 74001843
14MAY 71003042
14MAY 3405F019-80
15GLASS, INNER
15MAY 74001841
16MAY 74001844
17TAPE, FOIL (3“ WIDE)
18MAY 7208P011-60
19MAY 7706P309-60
20MAY 7706P305-60
21MAY 2404F044-80
21SCREW
21LINING, DRAWER PANEL
22MAY 7744P087-60
23TAPE
26WP98008545 Whirlpool Screw
27MAY 74001458
