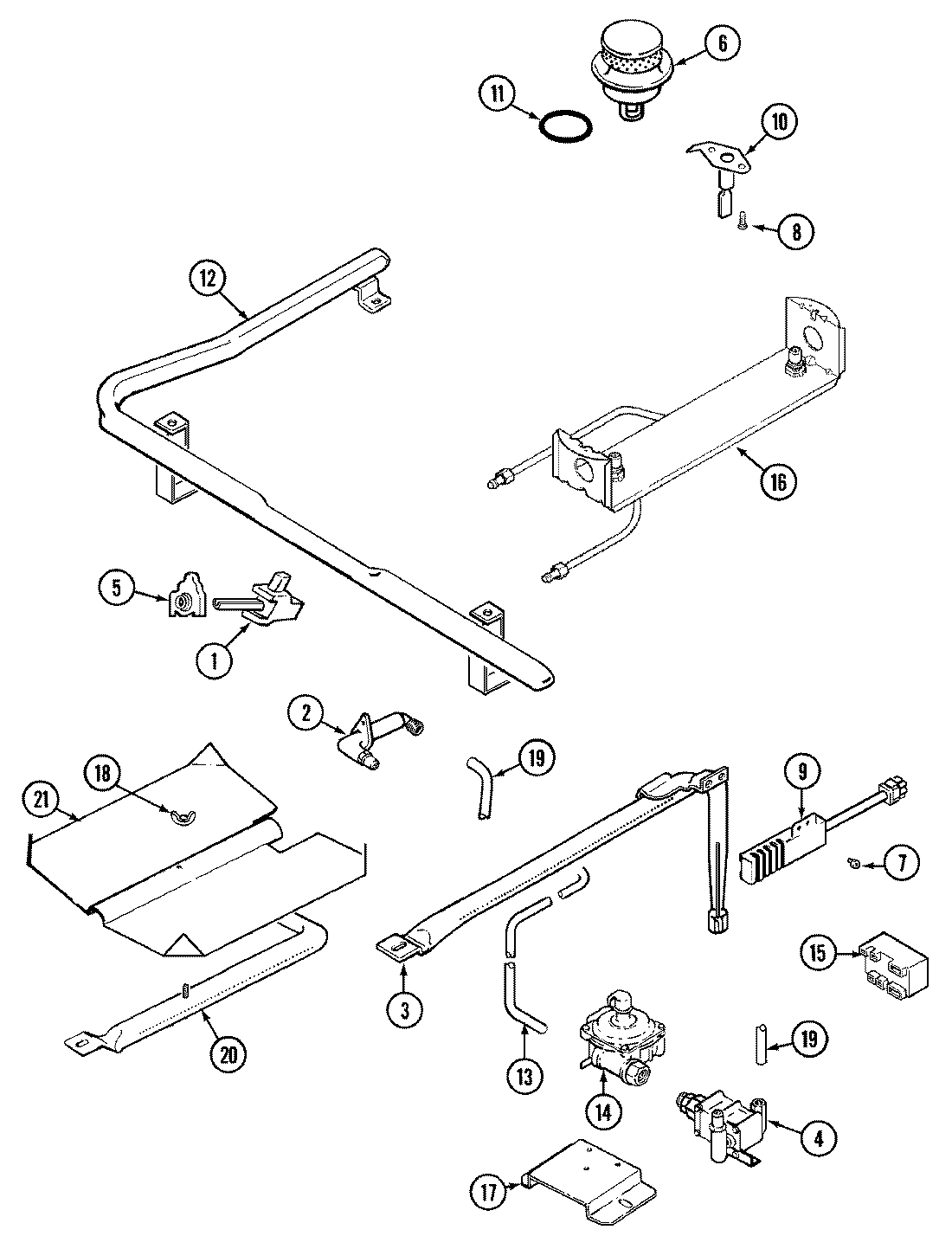

CHG9800BAB 03 – GAS CONTROLS

Products

Position	Product
NI	MAY 5125A312-60
NI	MAY 5140D035-60
1	MAY 7101P044-60
1	MAY 7502P251-60
2	MAY 7507P088-60
2	MAY 3605F186-45
3	MAY 3403D043-45
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D018-09
7	MAY 7101P315-60
8	WP3351614 Whirlpool Screw
9	MAY 4005F421-45
9	MAY 7432P076-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 7201P050-60
12	MAY 7103P130-60
12	MAY 7513P121-60
13	MAY 3414F103-44
14	MAY 7101P290-60
14	MAY 7510P050-60
15	MAY 74003288
15	MAY 3801F341-45
15	MAY 7431P024-60
16	MAY 5187D036-60
16	MAY 5187D037-60
17	MAY 8020P007-60
18	NUT, WING
19	MAY 1555258K
19	MAY 3414F102-44
20	MAY 3403D024-45
21	MAY 3601F217-45
