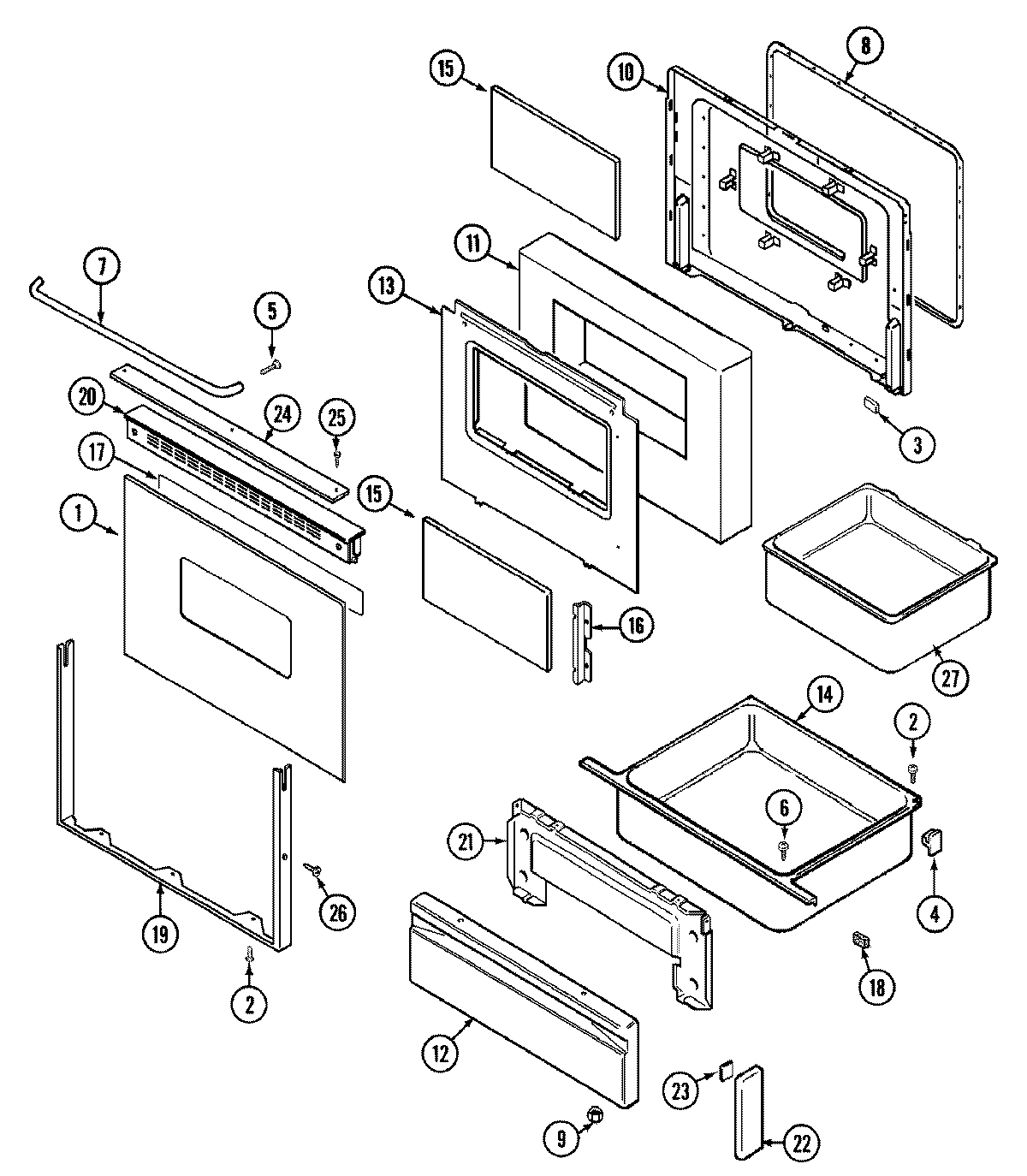

CHG9800BAE 02 – DOOR/DRAWER (SER. PRE. 12)

Products

Position	Product
1	MAY 7902P360-60
3	MAY 8010P085-60
4	WP488130 Whirlpool Air Conditioner Nut
4	WP8004P026-60 Whirlpool Support
4	MAY 74003566
5	SCREW
5	MAY 74001521
6	WP7101P072-60 Whirlpool Screw
7	MAY 7701P150-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 7103P136-60
10	WP7103P114-60 Whirlpool Snap Nut
10	MAY 74003244
10	MAY 2402W209-19
10	NUT, SNAP (ROUND-WHT)
11	MAY 74001842
12	PANEL, DRAWER (WHT)
12	MAY 2416W002-71
13	MAY 74001843
14	MAY 3405F019-80
14	MAY 71003042
15	MAY 74001841
15	GLASS, INNER
16	MAY 74001844
17	TAPE, FOIL (3`` WIDE)
18	MAY 7208P011-60
19	MAY 7706P310-60
20	MAY 7706P306-60
21	MAY 2404F044-80
21	SCREW
21	LINING, DRAWER PANEL
22	MAY 7744P093-60
23	TAPE
24	MAY 7744P090-60
24	MAY 74001278
26	WP98008544 Whirlpool Screw Assembly
27	MAY 74001458
