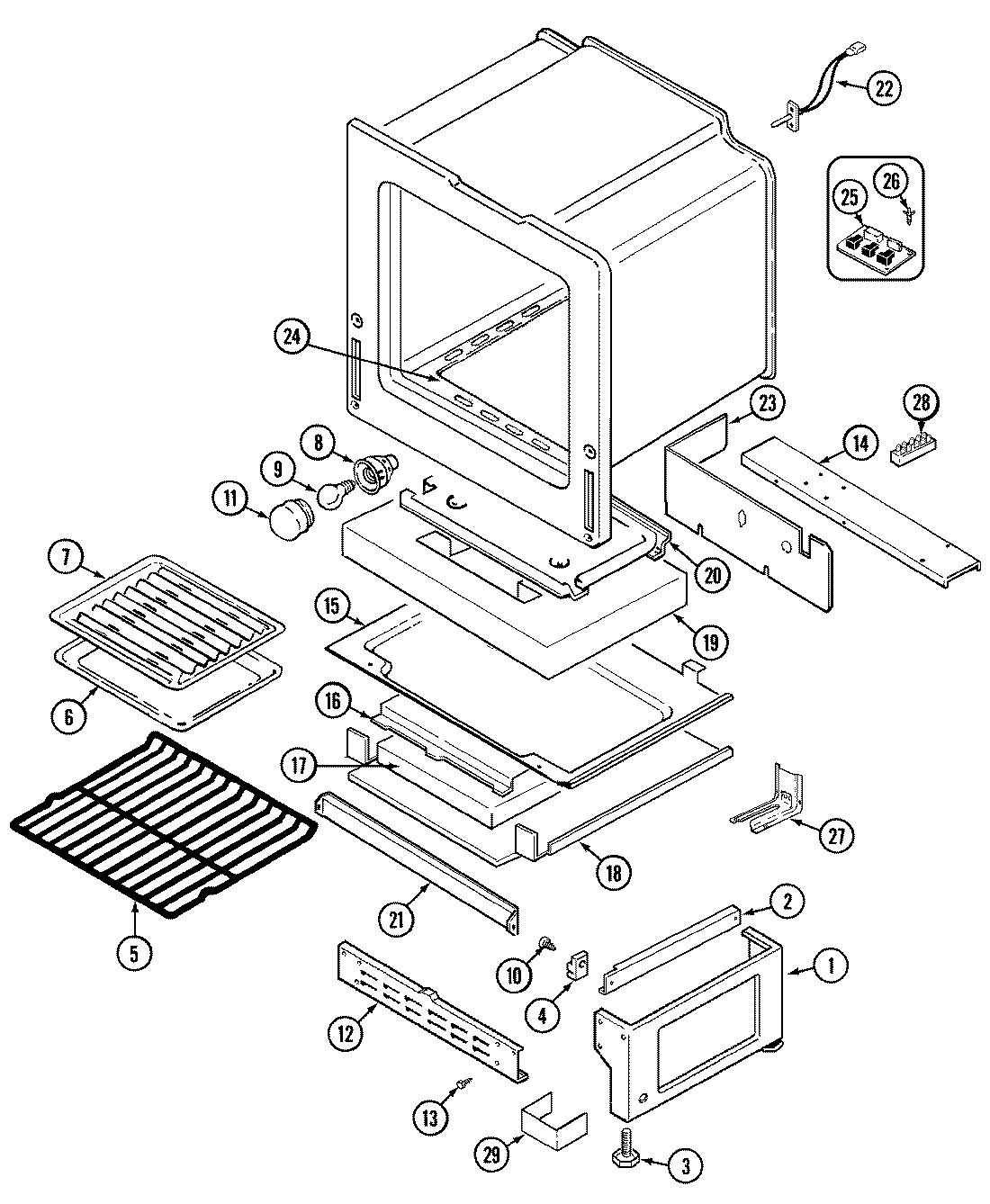

CHG9800BAE 05 – OVEN/BASE

Products

Position	Product
1	MAY 74001705
1	MAY 74003003
2	RUNNER, DRAWER
2	MAY 3406F028-51
3	W11665456 Whirlpool Range Level Foot
3	MAY 74001311
4	MAY 8004P033-60
4	MAY 74003566
4	WP488130 Whirlpool Air Conditioner Nut
5	MAY 7801P046-60
6	MAY Y3401F02019
7	MAY Y3413F01619
8	MAY 74003125
8	WP7407P182-60 Whirlpool Lamp
9	RANGE ONLY 40W 120V APPL BULB
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	SCREW
11	WP9781049 Whirlpool Light Lens
12	MAY 4020F001-80
14	MAY 3807F473-51
14	MAY 3807F476-51
15	MAY 7101P290-60
15	MAY 3804F112-51
16	MAY 3604F204-51
17	INSULATION, DRAWER & SHIELD
18	MAY 3604F205-51
19	MAY 4804F014-60
20	MAY 3401F024-45
21	MAY 3601F208-45
21	BAFFLE, OVEN FRONT
22	MAY 7430P009-60
23	MAY 4005F429-51
24	BAFFLE, OVEN BOTTOM
24	MAY 5504M004-19
25	MAY 3807F439-51
25	MAY 7428P020-60
25	MAY 74003168
26	MAY 8004P032-60
26	MAY 8004P020-60
27	MAY 7101P289-60
27	MAY 3801F218-51
28	MAY 7401P037-60
28	MAY 7402P043-60
29	MAY 4005F420-80
