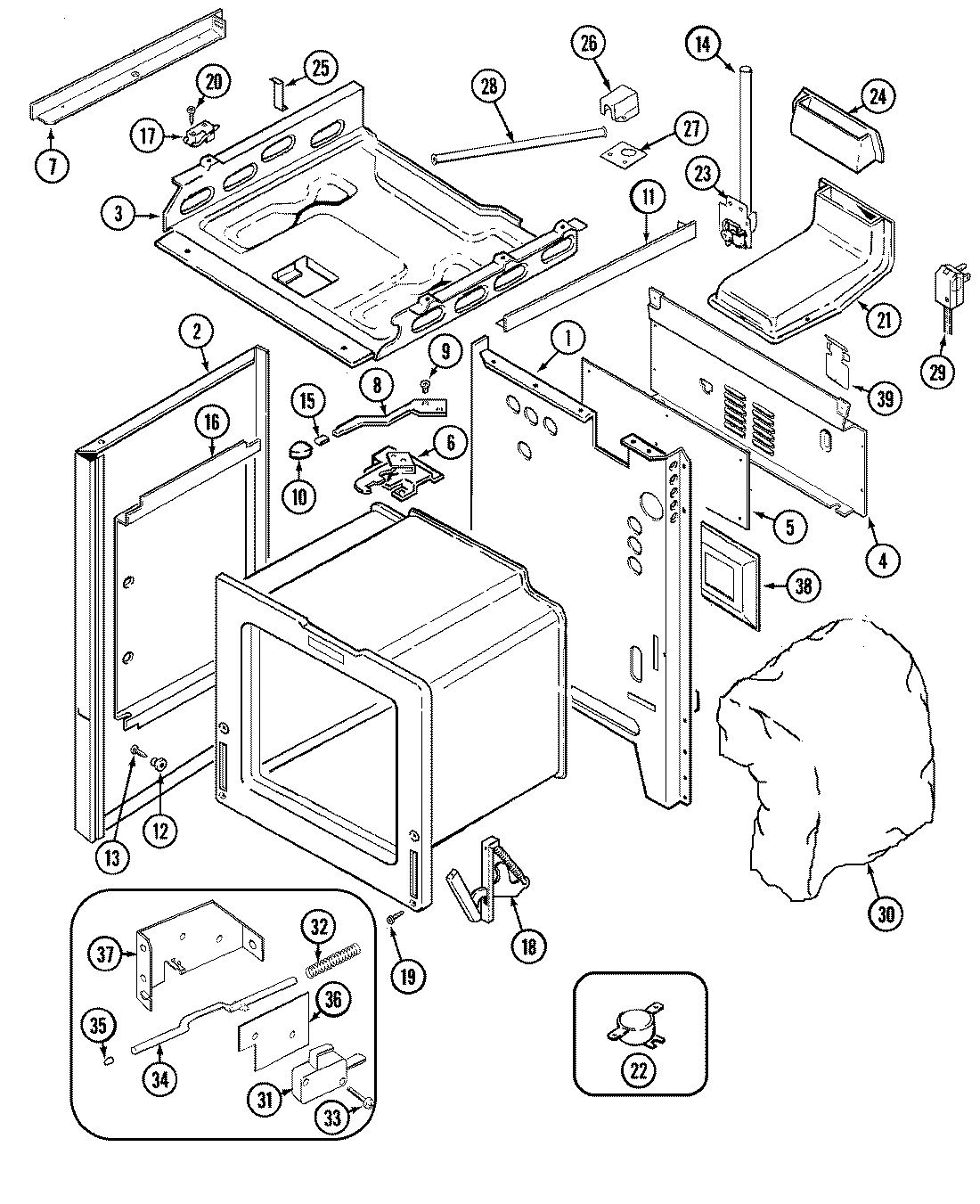

CHG9830BAB 01 – BODY

Products

Position	Product
1	MAY 74002364
2	MAY 2618F106-70
2	MAY 2618F107-70
2	MAY 7003P067-60
3	MAY 74002357
4	MAY 74002597
5	MAY 74002598
6	MAY 7101P280-60
6	MAY 8002P027-60
6	MAY 74001069
6	MAY 4804F028-60
7	MAY 3604F213-51
8	MAY 8009P028-60
8	MAY 74003005
9	SCREW, LEVER
10	MAY 74001719
11	MAY 3604F214-51
12	MAY 8004P024-60
13	MAY 74001449
14	MAY 8026P021-60
15	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 7112P112-60
16	MAY 74002599
17	MAY 7403P361-60
17	MAY 7003P063-60
18	WP74011140 Whirlpool Oven Hinge
18	MAY 7106P056-60
19	SCREW (10-24X5/16-NI)
21	MAY 4006W122-45
21	WP74003976 Whirlpool Screw
22	MAY 7403P249-60
23	MAY 7427P013-60
23	SCREW (8BX3/8-NI)
24	MAY 74002333
25	MAY 3801F325-51
26	MAY 4006F148-51
27	MAY 4011F242-51
28	MAY 7506P124-60
28	SCREW
29	MAY 7402P043-60
30	MAY 4804F036-60
30	MAY 74001159
30	MAY 74003037
30	MAY 7002P161-60
31	MAY 74001802
33	MAY 7101P330-60
34	MAY 74001630
35	MAY 74001631
36	MAY 74001872
37	BRACKET, SWITCH ACTUATOR
38	MAY 4006F133-51
39	MAY 4005F448-45
