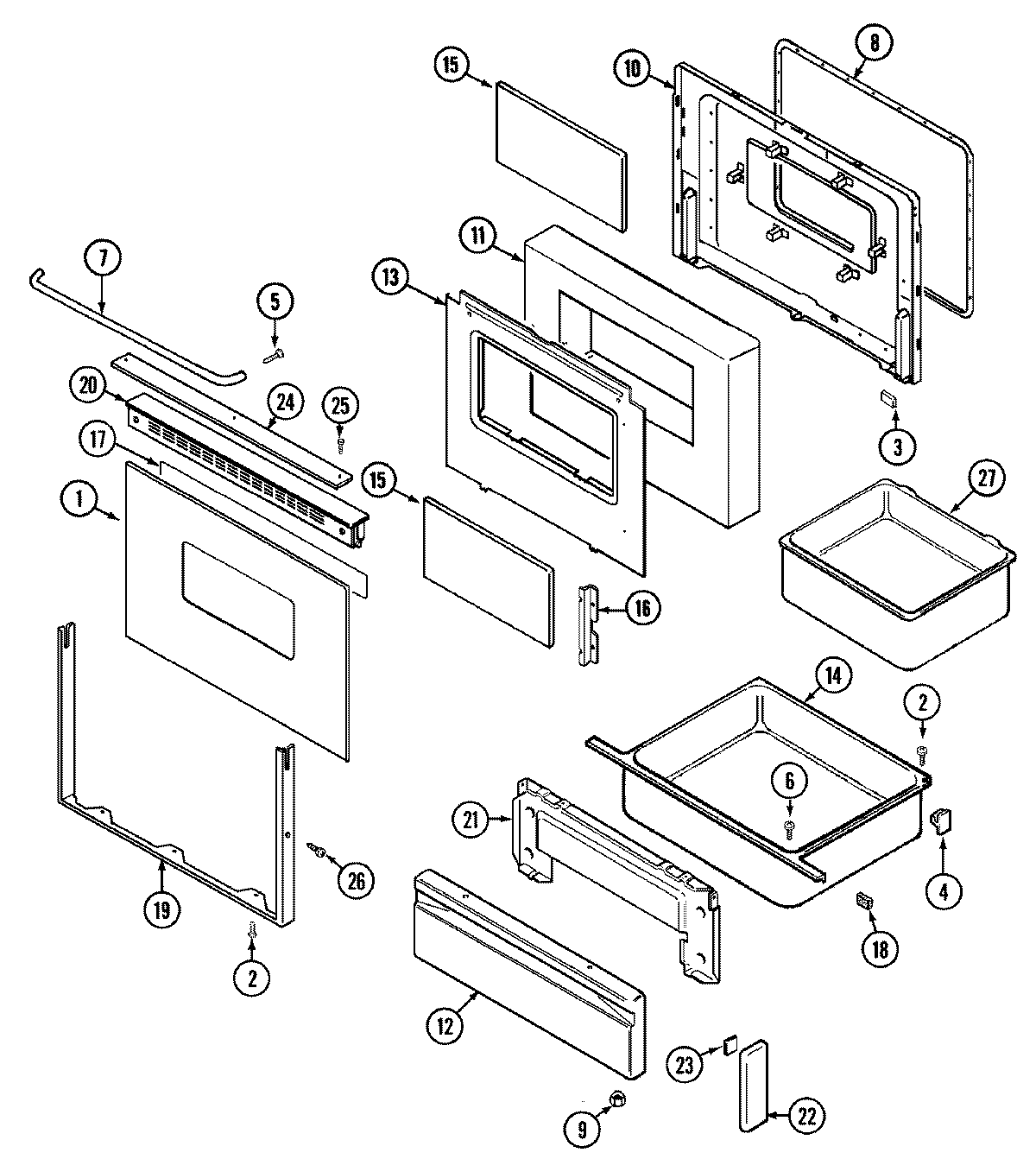

CHG9830BAB 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P361-60
3	MAY 8010P085-60
4	MAY 74003566
4	WP488130 Whirlpool Air Conditioner Nut
4	WP8004P026-60 Whirlpool Support
5	SCREW
5	MAY 74001521
7	MAY 7701P149-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 7103P136-60
10	NUT, SNAP (ROUND-WHT)
10	MAY 2402W209-19
10	NUT, SNAP (ROUND-BLK)
10	MAY 74003244
11	MAY 74001842
12	PANEL, DRAWER (BLK)
12	MAY 7101P290-60
12	MAY 74001749
13	MAY 74001843
14	MAY 71003042
14	MAY 3405F018-80
15	MAY 74001841
16	MAY 74001844
17	MAY 8270P078-60
18	MAY 7208P011-60
19	MAY 7706P309-60
20	MAY 7706P305-60
20	SCREW
21	MAY 74001464
22	MAY 7744P087-60
23	TAPE
26	WP98008545 Whirlpool Screw
27	MAY 74001458
