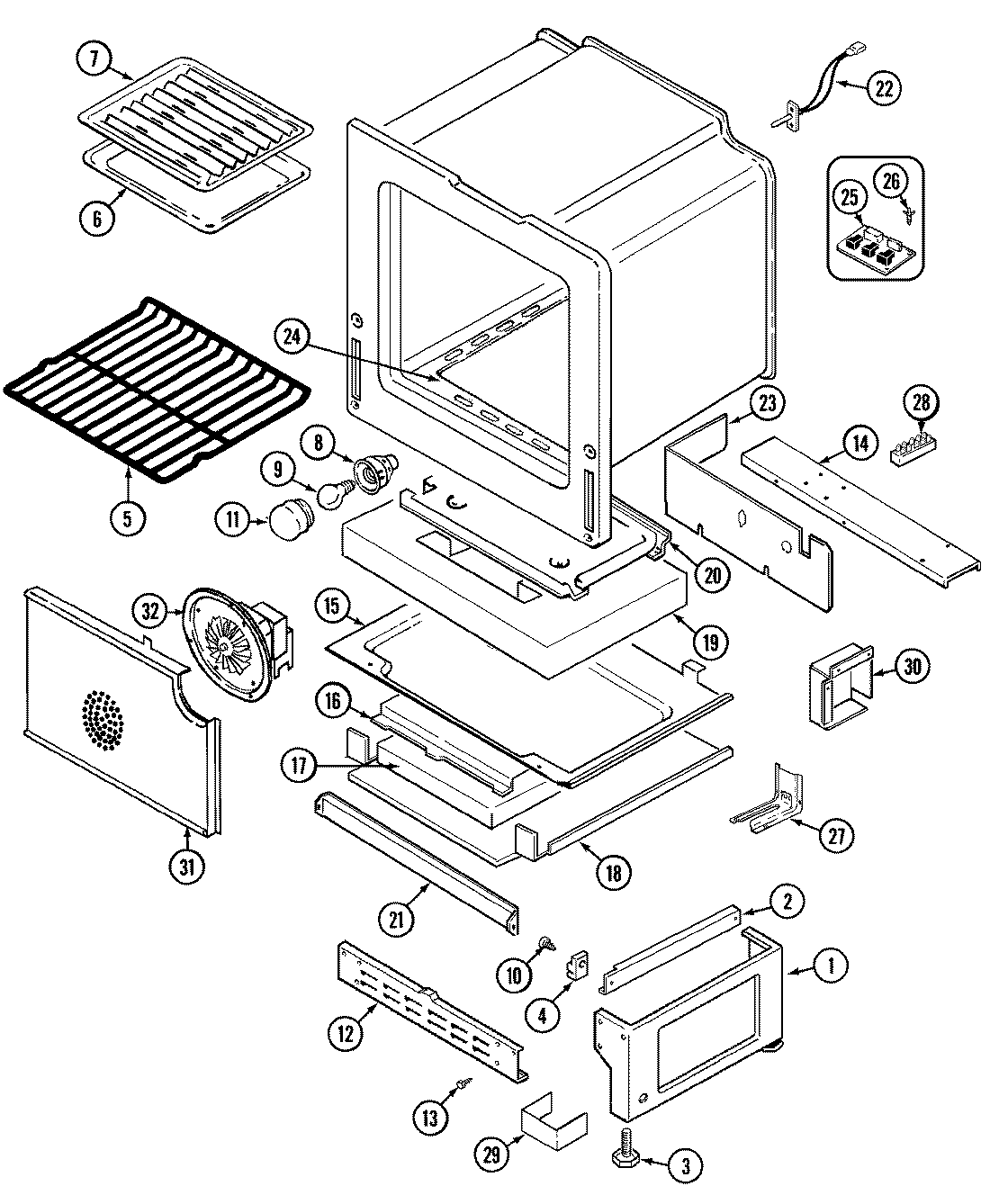

CHG9830BAB 04 – OVEN/BASE

Products

Position	Product
1	MAY 4020W015-80
1	MAY 74003003
2	MAY 3406F028-51
2	RUNNER, DRAWER
3	MAY 7101P316-60
3	W11665456 Whirlpool Range Level Foot
4	WP488130 Whirlpool Air Conditioner Nut
4	MAY 74003566
4	MAY 74002312
5	WPW10282492 Whirlpool Oven Rack
6	MAY Y3401F02019
7	MAY Y3413F01619
8	MAY 74003125
8	WP7407P182-60 Whirlpool Lamp
9	RANGE ONLY 40W 120V APPL BULB
10	MAY 74001449
11	WP9781049 Whirlpool Light Lens
12	MAY 4020F001-80
14	MAY 74002593
15	MAY 3804F112-51
16	MAY 3604F204-51
17	INSULATION, DRAWER & SHIELD
18	MAY 3604F205-51
19	MAY 4804F014-60
20	MAY 74001651
21	BAFFLE, OVEN FRONT
21	WP74003976 Whirlpool Screw
22	MAY 7430P009-60
23	SCREW
23	MAY 4005F429-51
24	BAFFLE, OVEN BOTTOM
24	MAY 5504M004-19
25	MAY 74002594
26	MAY 8004P020-60
26	SUPPORT, RELAY
27	MAY 7101P344-60
27	MAY 3801F218-51
28	MAY 7401P037-60
29	MAY 4005F420-80
30	MAY 3807F473-51
31	MAY 74002595
32	MAY 74002596
32	MAY 74003815
