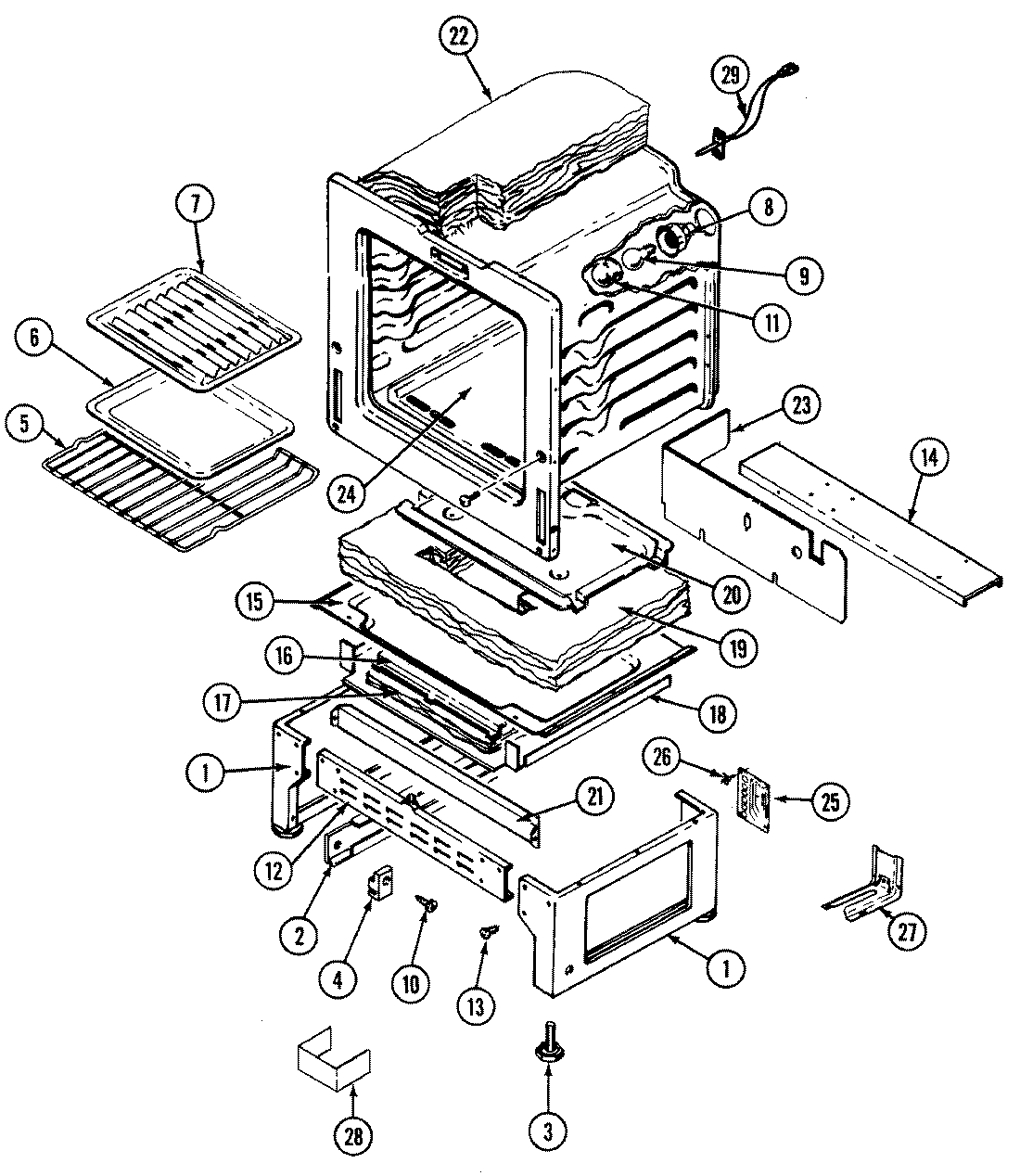

CHGA400BAE 04 – OVEN/BASE – Aparts

CHGA400BAE 04 – OVEN/BASE

Products

Position	Product
1	MAY 74001705
2	MAY 3406F028-51
3	MAY 74001311
4	MAY 8004P033-60
5	WPW10282492 Whirlpool Oven Rack
6	MAY Y3401F02019
7	MAY Y3413F01619
8	WP7407P182-60 Whirlpool Lamp
9	RANGE ONLY 40W 120V APPL BULB
10	SCREW
11	WP9781049 Whirlpool Light Lens
12	MAY 4020F001-80
14	MAY 3807F476-51
15	MAY 7101P290-60
15	MAY 3804F112-51
16	MAY 3604F204-51
17	INSULATION, DRAWER & SHIELD
18	MAY 3604F205-51
19	MAY 4804F014-60
20	MAY 3401F024-45
21	MAY 3601F208-45
22	MAY 4804F036-60
22	MAY 74001159
22	MAY 7002P161-60
23	MAY 4005F429-51
24	BAFFLE, OVEN BOTTOM
24	MAY 5504M004-19
25	MAY 3807F439-51
25	MAY 7428P020-60
26	MAY 8004P032-60
26	MAY 8004P020-60
27	MAY 3801F218-51
27	MAY 7101P289-60
28	MAY 4005F420-80
29	MAY 7430P009-60
29	MAY 5185D274-60
