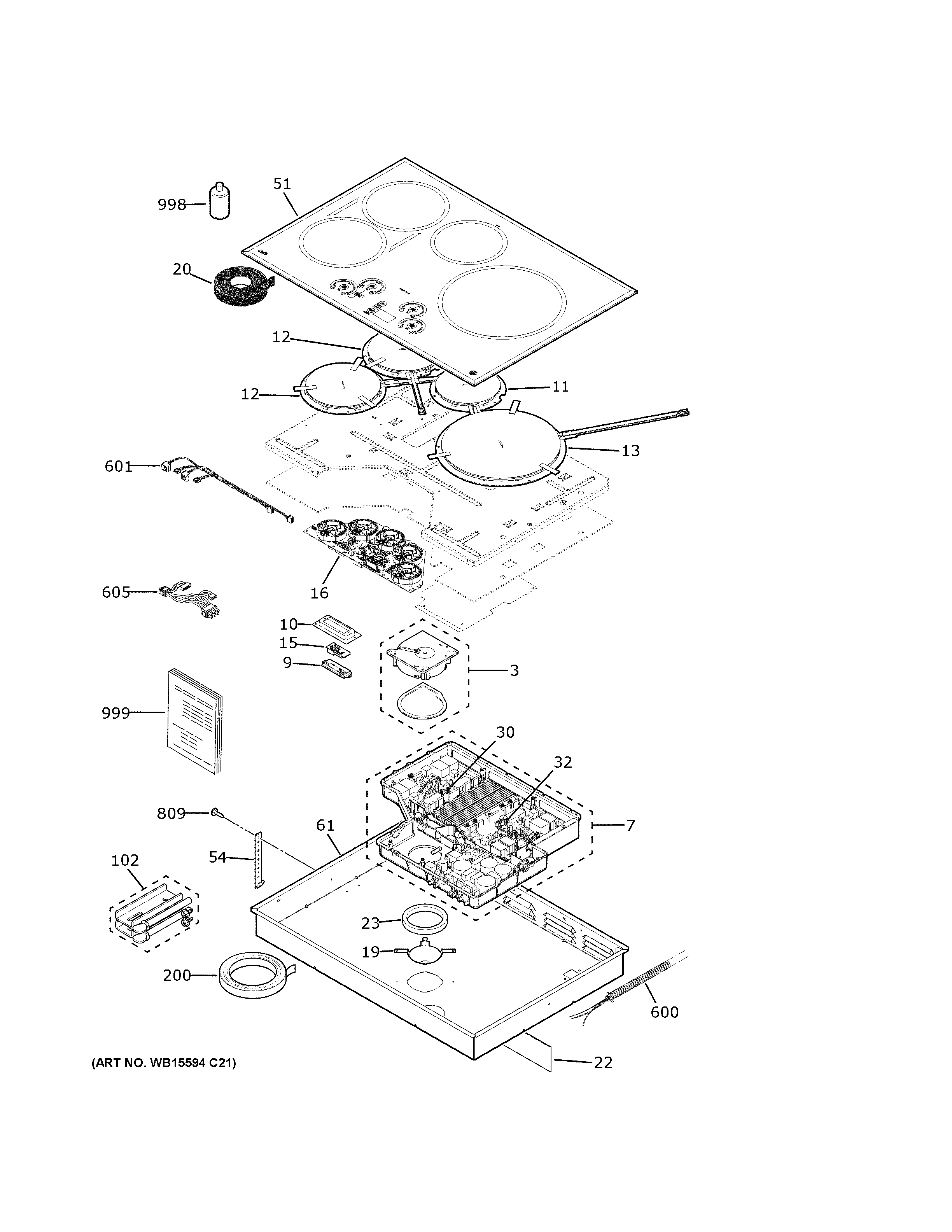

CHP90301T1BB CONTROL PANEL & COOKTOPadmin2025-04-26T08:35:56+00:00CHP90301T1BB CONTROL PANEL & COOKTOP ProductsPositionProduct3WB26X24235 GE Oven Blower and Gasket Assembly7WB27X44890 GE Induction Assembly9WB02X30390 GE Wi-Fi Board Housing10WIFI HOUSING BRACKET11WB30X38625 GE Induction Element 1800W12WB30X38226 GE Induction Element 2500W13WB30X38227 GE Induction Element 3700W15WB27X45808 GE Wi-Fi Bluetooth Combo Board16WB27X45608 GE Display Board19WB02X24262 GE Cooktop Fan Enclosure20WB02X26088 GE Oven Foam Tape22WB02X24231 GE Oven Heat Baffle23WB35X24260 GE Bottom Oven Gasket30WB27X44894 GE Generator Left Board32RIGHT GENERATOR BOARD51WB62X44601 GE Maintop Glass and Frame54WB2K5328 GE Oven Hold Down Bracket61BURNER BOX BOTTOM102WB01X24570 GE Oven Installation Kit200WB02X21898 GE Dishwasher Tape600WB18X31554 GE Conduit Wire Assembly601RJ45-WIFI HARNESS605WB18X44582 GE Wire Harness Ground605WB18X44573 GE Wire Harness809WB1X1137 GE Oven Screw998CLEANER GLASS999INSTRUCTION INSTALL999PM MINI MANUAL AND WIRING999PM INSTALL INSTRUCTIONS999PM OWNERS MANUAL
