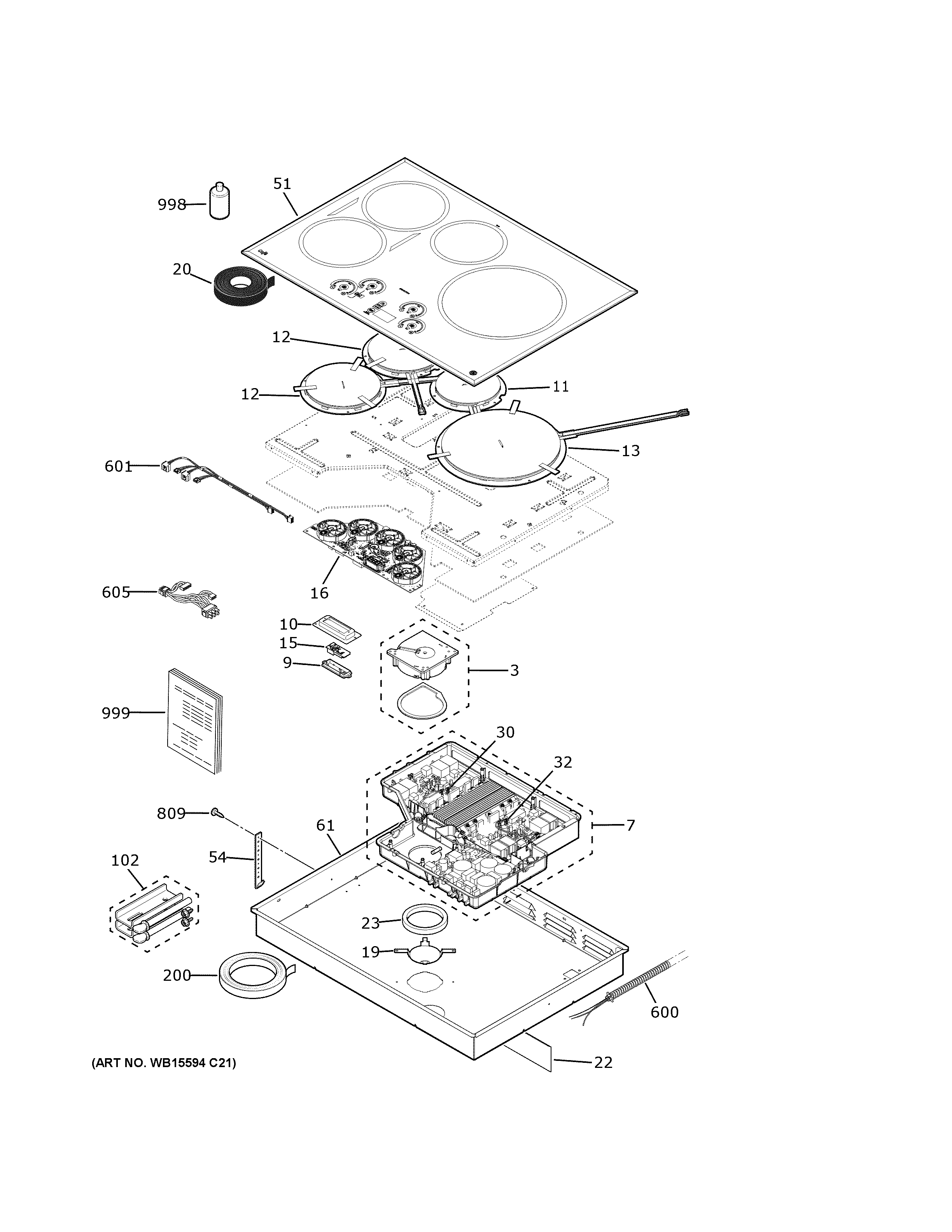

CHP90302T1SS CONTROL PANEL & COOKTOP

Products

Position	Product
3	WB26X24235 GE Oven Blower and Gasket Assembly
7	WB27X44890 GE Induction Assembly
9	WB02X30390 GE Wi-Fi Board Housing
10	WIFI HOUSING BRACKET
11	WB30X38625 GE Induction Element 1800W
12	WB30X38226 GE Induction Element 2500W
13	WB30X38227 GE Induction Element 3700W
15	WB27X45808 GE Wi-Fi Bluetooth Combo Board
16	WB27X45608 GE Display Board
19	WB02X24262 GE Cooktop Fan Enclosure
20	WB02X26088 GE Oven Foam Tape
22	WB02X24231 GE Oven Heat Baffle
23	WB35X24260 GE Bottom Oven Gasket
30	WB27X44894 GE Generator Left Board
32	RIGHT GENERATOR BOARD
51	MAINTOP GLASS & FRAME
54	WB2K5328 GE Oven Hold Down Bracket
61	BURNER BOX BOTTOM
102	WB01X24570 GE Oven Installation Kit
200	WB02X21898 GE Dishwasher Tape
600	WB18X31554 GE Conduit Wire Assembly
601	RJ45-WIFI HARNESS
605	WB18X44582 GE Wire Harness Ground
605	WB18X44573 GE Wire Harness
809	WB1X1137 GE Oven Screw
998	CLEANER GLASS
999	INSTRUCTION INSTALL
999	PM MINI MANUAL AND WIRING
999	PM INSTALL INSTRUCTIONS
999	PM OWNERS MANUAL
