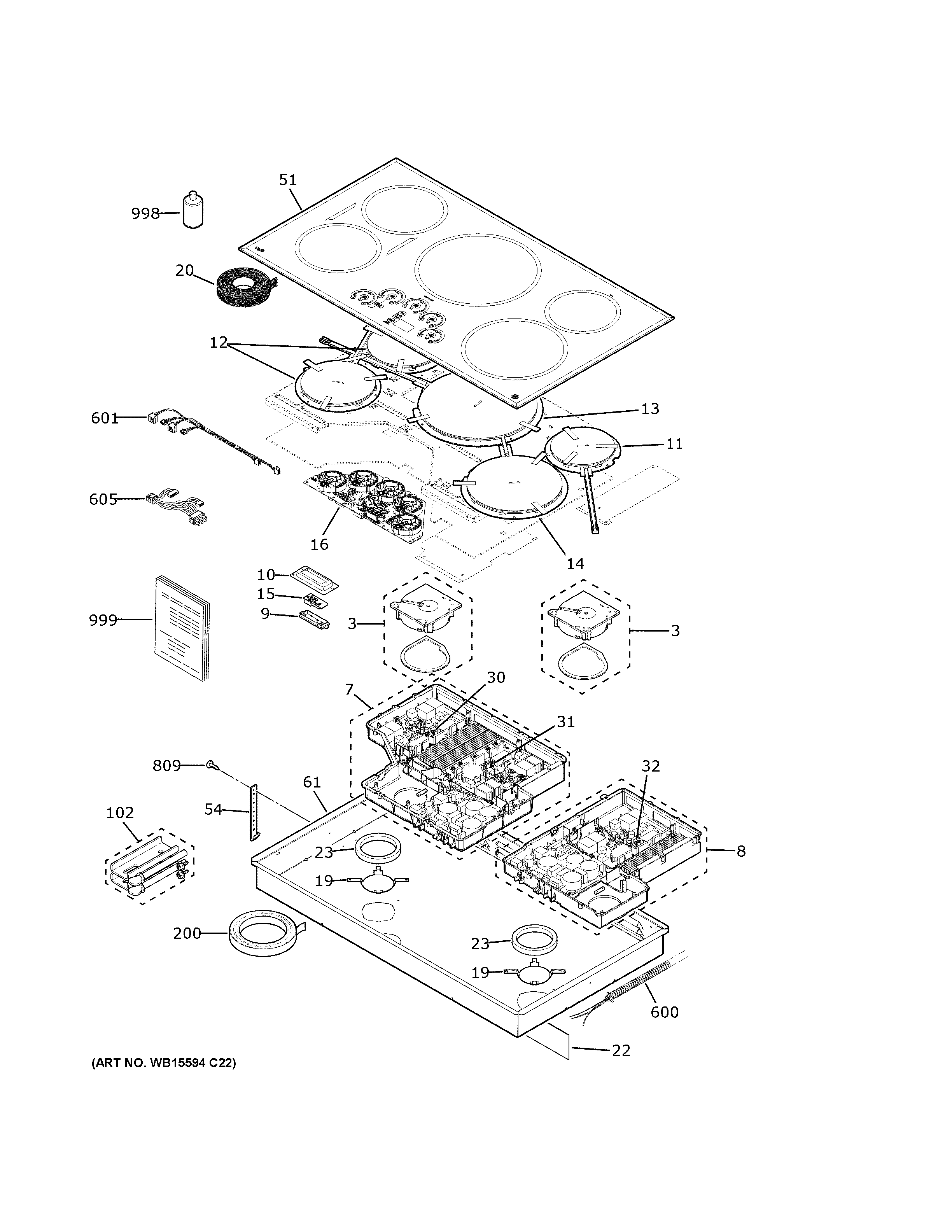

CHP90362T1SS CONTROL PANEL & COOKTOP

Products

Position	Product
3	WB26X24235 GE Oven Blower and Gasket Assembly
7	WB27X44888 GE Induction Assembly
8	WB27X44889 GE Induction Assembly
9	WB02X30390 GE Wi-Fi Board Housing
10	WIFI HOUSING BRACKET
11	WB30X38625 GE Induction Element 1800W
12	WB30X38226 GE Induction Element 2500W
13	WB30X38227 GE Induction Element 3700W
14	WB30X38485 GE Induction Element 3200W
15	WB27X45808 GE Wi-Fi Bluetooth Combo Board
16	WB27X45608 GE Display Board
19	WB02X24262 GE Cooktop Fan Enclosure
20	WB02X26088 GE Oven Foam Tape
22	WB02X26802 GE Oven Baffle
23	WB35X24260 GE Bottom Oven Gasket
30	WB27X44894 GE Generator Left Board
31	WB27X44891 GE Generator Control Board
32	WB27X44893 GE Generator Board Right
51	WB62X44604 GE Maintop Glass & Frame
54	WB2K5328 GE Oven Hold Down Bracket
61	BURNER BOX BOTTOM
102	WB01X24570 GE Oven Installation Kit
200	WB02X21898 GE Dishwasher Tape
600	WB18X31555 GE Wire Conduit Assembly
601	RJ45-WIFI HARNESS
605	WB18X44574 GE Wire Harness N Bd
605	WB18X31454 GE GND Wire Harness Assembly
605	WB18X44582 GE Wire Harness Ground
809	WB1X1137 GE Oven Screw
998	CLEANER GLASS
999	PM INSTALL INSTRUCTIONS
999	INSTRUCTION INSTALL
999	PM MINI MANUAL AND WIRING
999	PM OWNERS MANUAL
