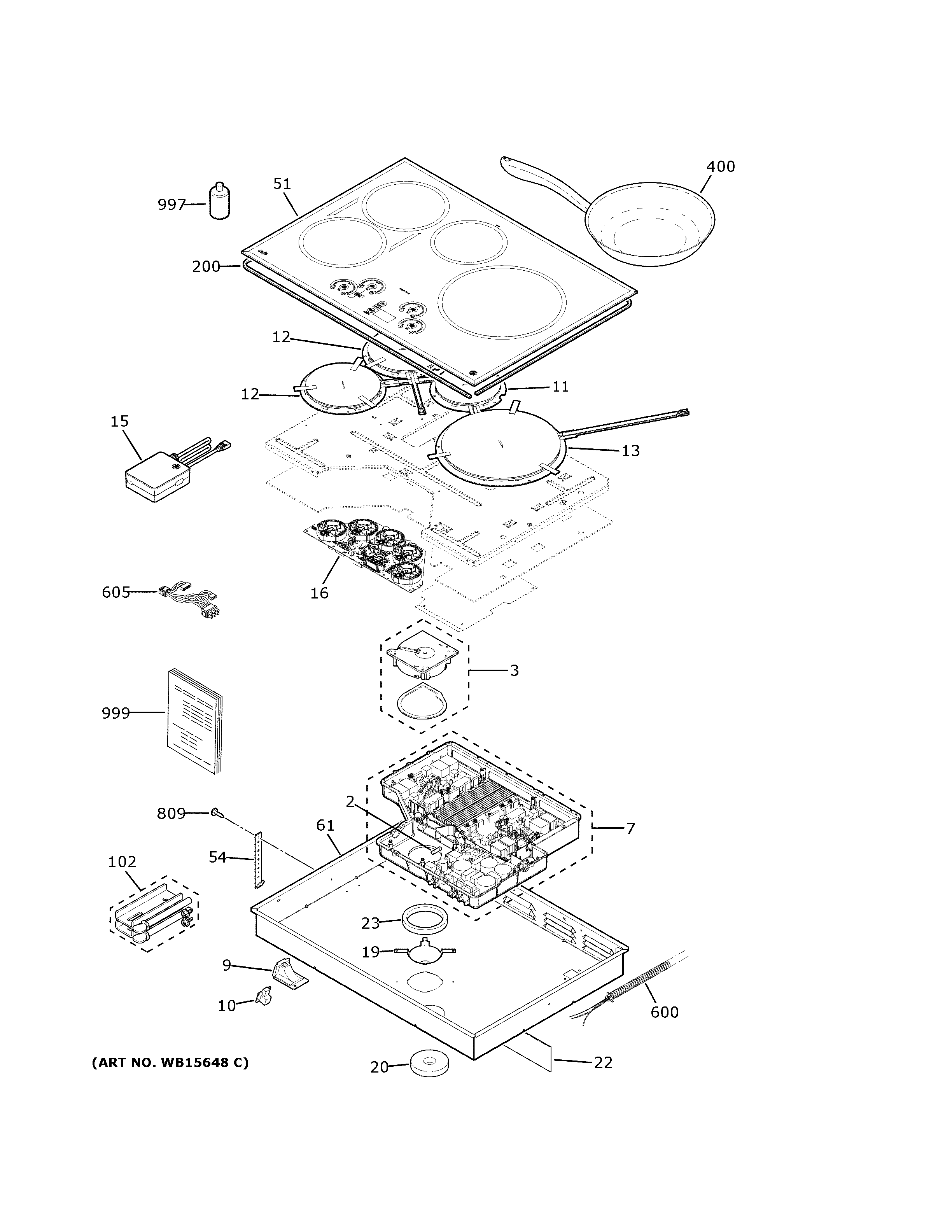

CHP95302M3SS CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB27X27316 GE Oven 250V 20A Fuse
3	WB26X24235 GE Oven Blower and Gasket Assembly
7	WB27X33085 GE Oven Induction Control Assembly
9	WB27X20933 GE Oven RJ45 Housing Assembly
10	WB27X24119 GE Oven RJ45 Connector Board
11	WB30X38225 GE Induction Element 1800W
12	WB30X38226 GE Induction Element 2500W
13	WB30X38227 GE Induction Element 3700W
15	WB27X40326 GE Module Assembly Hestan
16	WB27X31999 GE Display Board Assembly
19	WB02X24262 GE Cooktop Fan Enclosure
20	WB02X26088 GE Oven Foam Tape
22	WB02X24231 GE Oven Heat Baffle
23	WB35X24260 GE Bottom Oven Gasket
51	WB62X32000 GE Oven 30" Glass and Frame Maintop
54	WB2K5328 GE Oven Hold Down Bracket
61	WB63X29541 GE Burner Bottom Box
102	WB01X24570 GE Oven Installation Kit
200	WB02X21898 GE Dishwasher Tape
200	WB35X24125 GE Oven Insulation Foam Tape
400	11" PRECISION COOKING PAN
600	CONDUIT WIRE ASM
605	WB18X31454 GE GND Wire Harness Assembly
605	WB18X24502 GE Oven Main Wire Harness
809	WB1X1137 GE Oven Screw
997	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
999	INSTRUCTION INSTALL
999	PM GUIDE MINI
