CHP95302M6SS CONTROL PANEL & COOKTOP

CHP95302M6SS CONTROL PANEL & COOKTOP

Written by

in

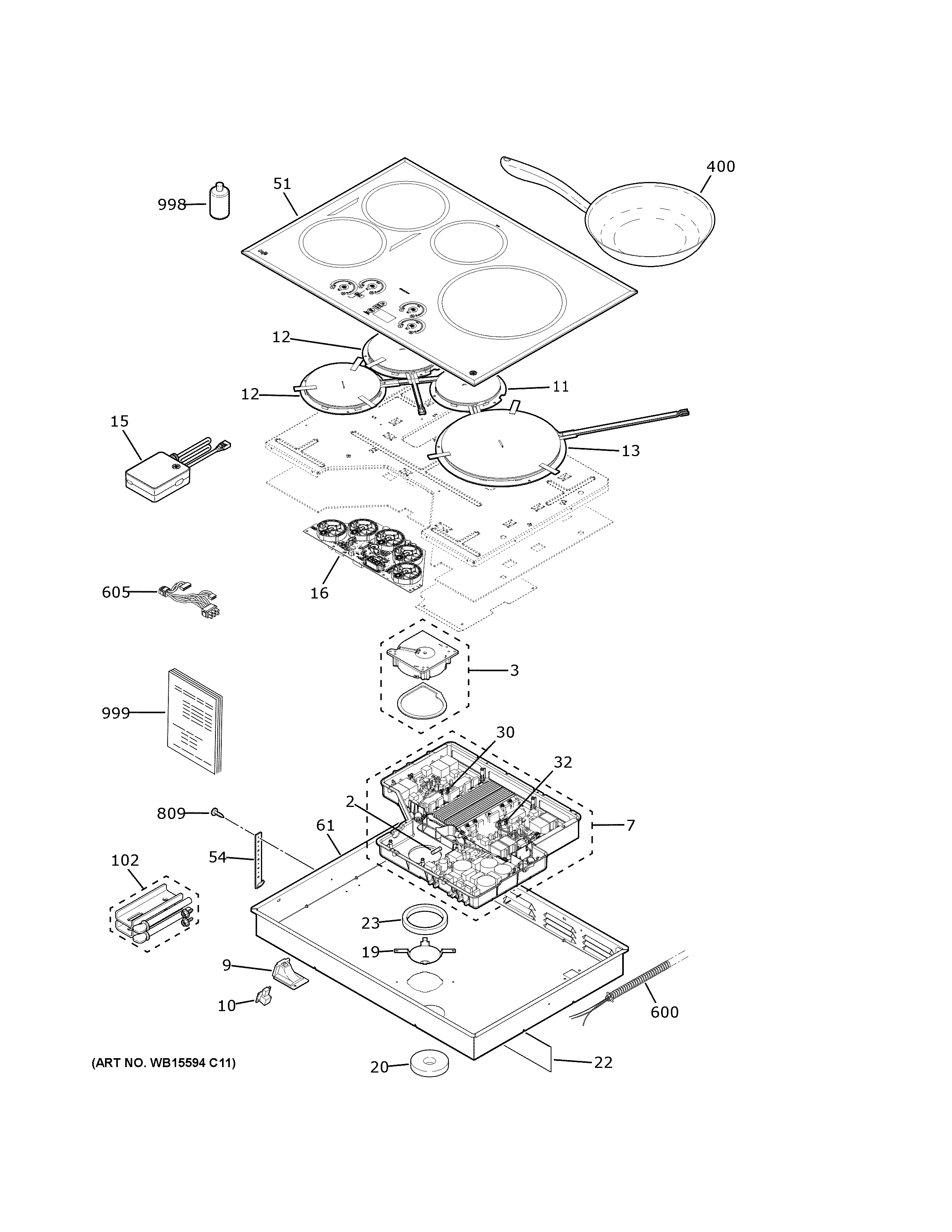

CHP95302M6SS CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB27X27316 GE Oven 250V 20A Fuse
3WB26X24235 GE Oven Blower and Gasket Assembly
7WB27X44890 GE Induction Assembly
9WB27X20933 GE Oven RJ45 Housing Assembly
10WB27X24119 GE Oven RJ45 Connector Board
11WB30X38625 GE Induction Element 1800W
12WB30X38226 GE Induction Element 2500W
13WB30X38227 GE Induction Element 3700W
15CONNECT PLUS WIFI AND BLUETOOTH HESTAN M
16WB27X45429 GE Display Board Assembly
19WB02X24262 GE Cooktop Fan Enclosure
20WB02X26088 GE Oven Foam Tape
22WB02X24231 GE Oven Heat Baffle
23WB35X24260 GE Bottom Oven Gasket
30WB27X44894 GE Generator Left Board
32RIGHT GENERATOR BOARD
51WB62X32000 GE Oven 30" Glass and Frame Maintop
54WB2K5328 GE Oven Hold Down Bracket
61WB63X29541 GE Burner Bottom Box
102WB01X24570 GE Oven Installation Kit
40011" PRECISION COOKING PAN
600WB18X31554 GE Conduit Wire Assembly
605WB18X24502 GE Oven Main Wire Harness
605WB18X44582 GE Wire Harness Ground
809WB1X1137 GE Oven Screw
998CLEANER GLASS
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
999PM QUICK OWNERS MANUAL
