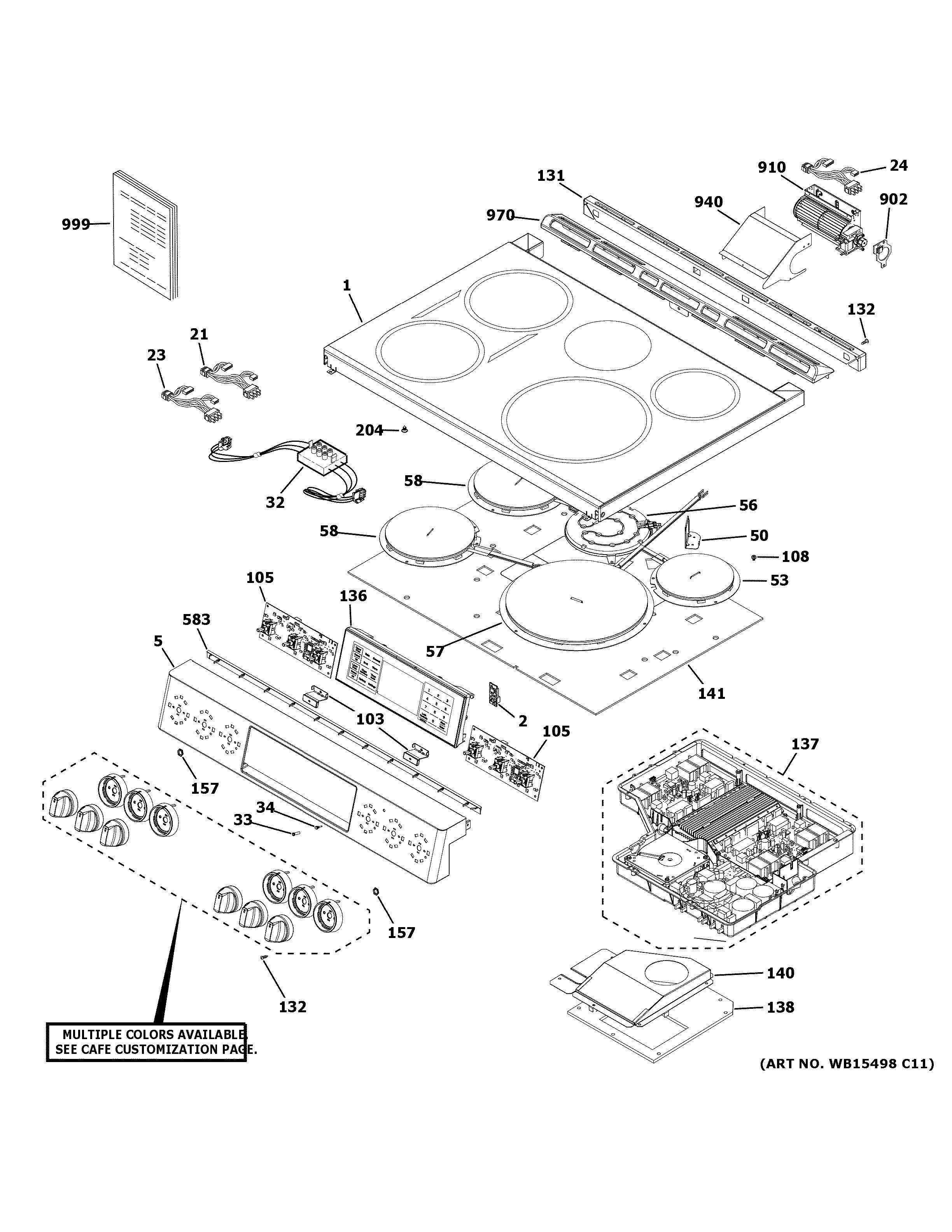

CHS900P3M1D1 CONTROL PANEL & COOKTOP

CHS900P3M1D1 CONTROL PANEL & COOKTOP

Written by

in

CHS900P3M1D1 CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB34X37386 GE Range Top Glass & Front Support
2WB27X33353 GE Wi-Fi Module Kit
5WB36X31633 GE Dark Slate Manifold Panel
21WB18X31615 GE WZ Harness
23WB18X31612 GE Supplier Harness
24WB18X31604 GE Oven Blower Harness
32WB18X31605 GE Induction Harness
33WB02X28779 GE Hot Surface Indicator
34WB25X28917 GE Indicator Sleeve Assembly
50WB34X28918 GE Induction Divider Assembly
53WB30X28698 GE Induction Element 1800W
56WB30X10035 GE Oven Warmer Element Low Profile
57ELEMENT INDUCTION 3700W
58WB30X38226 GE Induction Element 2500W
103WB34X28908 GE Oven Bracket
105WB27X32505 GE Oven LED Encoder Board Kit
108SCREW
131WB07X28825 GE Oven Trim Kit
132WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
136WB56X32507 GE Oven Glass & Touch Board Assembly
137WB27X30357 GE Oven Control Indicator & Gasket
138WB34X28919 GE Induction Duct Gasket
140WB34X28911 GE Duct Induction
141INSULATION INDUCTION
157WB02X28860 GE Nut
204WB01X26995 GE Oven Screw 8-18 AB X 5/16
583WB35X28743 GE Oven Range Front Gasket Assembly
902WB27X28659 GE Oven Sensor Board
910WB26X32571 GE Range Tangential Blower
940WB34X28735 GE Oven Fan Support
970WB07X31938 GE Vent Trim
999PM MANUAL MINI AND WD ASM
999PM WI FI INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM QUICK GUIDE
