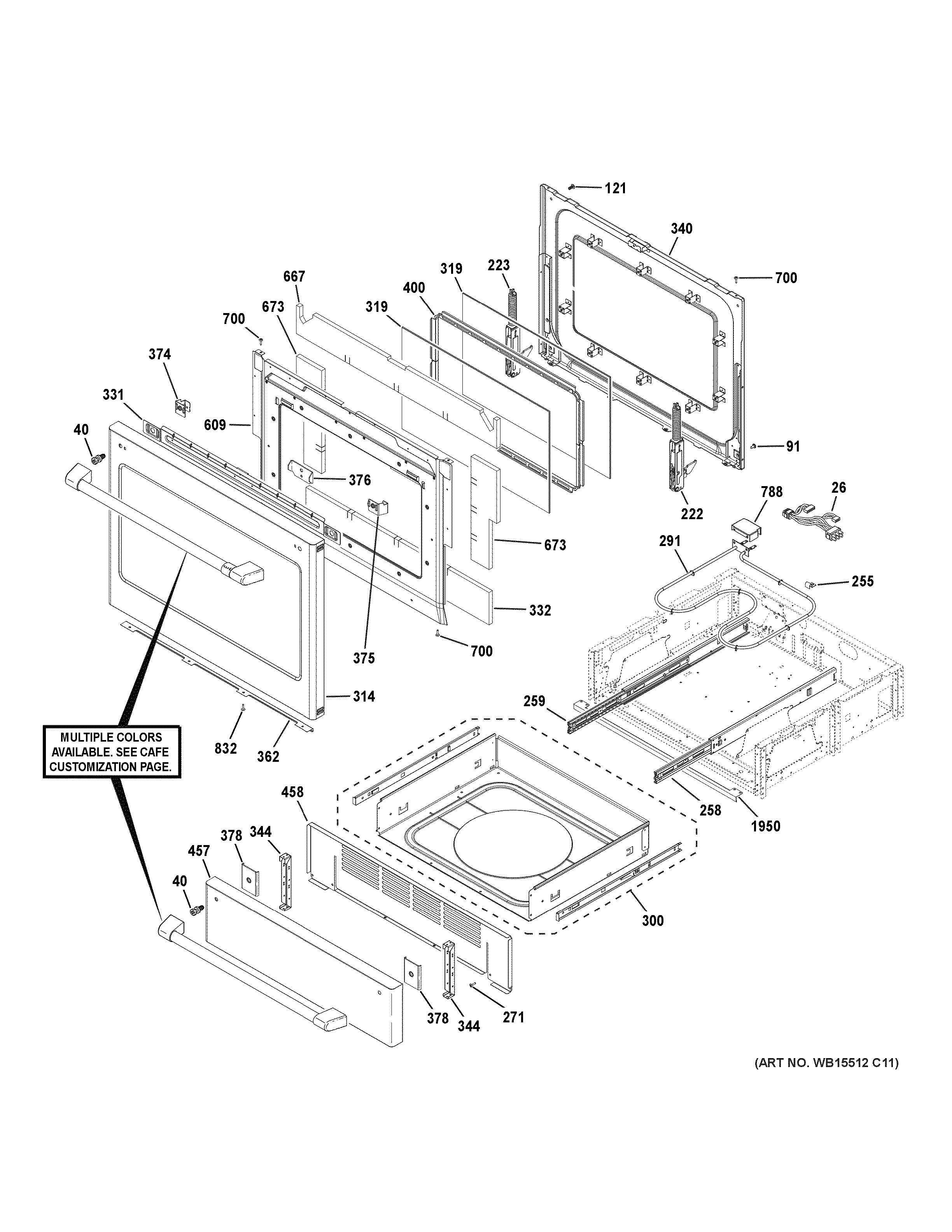

CHS900P3M1D1 DOOR & DRAWER PARTS

CHS900P3M1D1 DOOR & DRAWER PARTS

Written by

in

CHS900P3M1D1 DOOR & DRAWER PARTS

Products

PositionProduct
26HARNESS WARMING DRAWER
40WR01X11007 GE Refrigerator Fastener Door Handle
91WB01T10008 GE Oven Screw 10-32
121GEN WB01K0078
222WB10X30271 GE Oven Door Hinge
223WB10X26769 GE Oven Door Hinge
255WB02K10023 GE Oven Heating Element Clamp
258WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
271SCREW M4X8
291WB44K10011 GE Oven Heating Element
300WB49X26562 GE Oven Drawer Body Assembly Kit
314WB56X31641 GE Dark Slate Glass and Panel Door
319WB57K10174 GE Range Crystal Window Door
331WB34X31702 GE Panel Backer Vent
332WB35K10221 GE Range Insulation
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
362WB07X28885 GE Range Barrier Door
374WB34X31703 GE Bracket Fastener
375WB34X31701 GE Fastener Bracket
376WB34X31739 GE Bracket Backer
378WB01X31748 GE Anchor Nut
400WB34X28742 GE Window Frame Assembly
457WB56X31637 GE Drawer Panel Dark Slate
458WB56X29436 GE Drawer Liner Oven
609WB34X24749 GE Door Guard
667WB35X20077 GE Door Insulation
673WB35K10222 GE Oven Insulation
700WR01X10065 GE Screw
788WB34K10128 GE Heating Element Cover
832WB1K5062 GE Oven Screw
1950WB01K10072 GE Oven Front Bottom Trim
