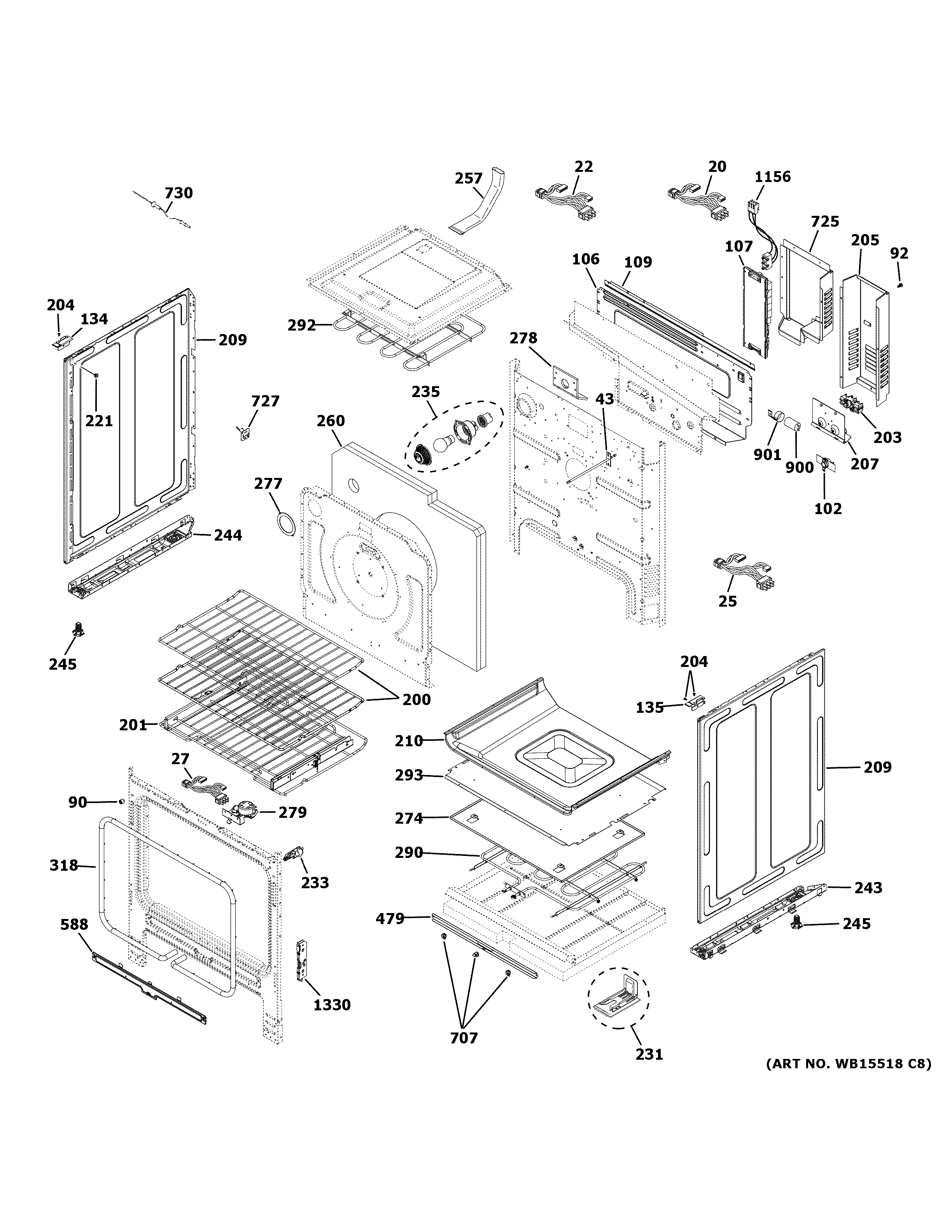

CHS900P4M1W2 BODY PARTS

CHS900P4M1W2 BODY PARTS

Written by

in

CHS900P4M1W2 BODY PARTS

Products

PositionProduct
20WB18X31602 GE Main Harness
22WB18X31940 GE DC Harness
25HARNESS HIDDEN BAKE
27WB18X31606 GE Latch Harness
43SENSOR ASM
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
102WB24X29505 GE Oven High Limit Switch
106COVER BACK
107WB27X32105 GE Machine Board with Frame
109WB34X28912 GE Oven Backguard Component
134FRONT SUPPORT LH
135FRONT SUPPORT RH
200WB48X21508 GE Oven Rack
201WB48X20990 GE Oven Slide Rack Assembly
203WB17T10011 GE Oven Terminal Block
204WB01X26995 GE Oven Screw 8-18 AB X 5/16
205WB34K10099 GE Oven Cover Motor
207TERMINAL BLOCK BRACKET
209WB56X28847 GE Oven Side Panel
210WB35X23552 GE Oven Bottom
221GEN WB02K0008
231GEN WB02K10386
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
243WB63X20215 GE Oven Support Base
244WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
257VENT
260WB35X28786 GE Oven Back Insulation
274SHIELD DRAWER TOP
277WB32K10044 GE Oven Light Gasket
278INSULATON COVER SOCKET
279WB10X28793 GE Oven Automatic Latch
290ELEMENT BAKE ASM
292BROIL ELEMENT
293GUARD INSULATION BOTTOM
318WB35X29667 GE Oven Gasket
479REFLECTOR FRONT
588WB34X21714 GE Front Frame Cover
707WB02K10267 GE Wire Clip
725CONTROL COVER
727WB34K10121 GE Oven Probe Receptacle & Harness
730WB20T10024 GE Oven Thermistor Probe
900WB08K10009 GE Oven Motor Capacitor
901WB02K10172 GE Oven Capacitor Holder
1156WB18X29669 GE Jumper Harness
1330WB10X28563 GE Oven Receiver Hinge
