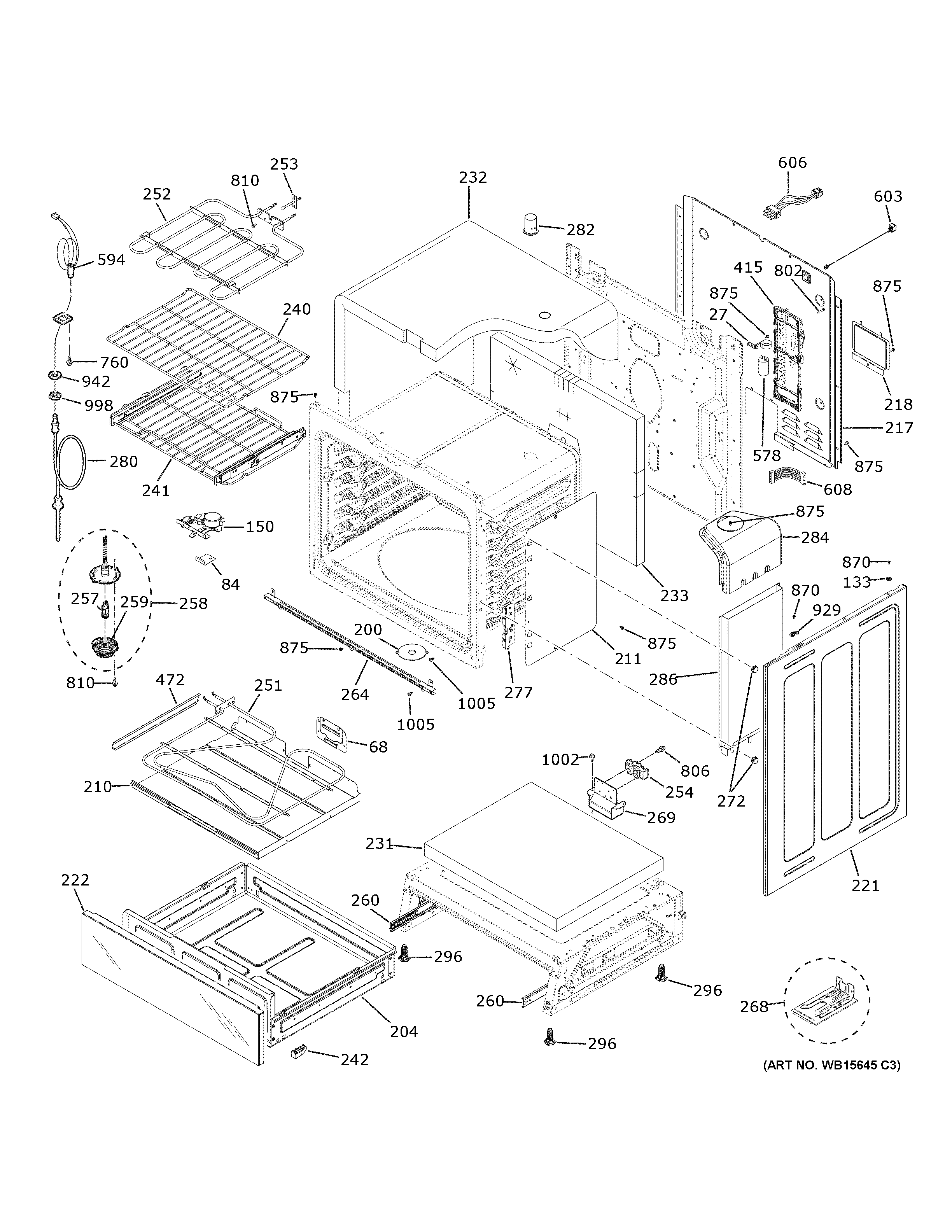

CHS90XM2N4S5 BODY PARTS

CHS90XM2N4S5 BODY PARTS

Written by

in

CHS90XM2N4S5 BODY PARTS

Products

PositionProduct
27BRACKET CAPACITIOR
68PLATE COVER (BK)
84WB02T10118 GE Oven Clip Seam
133WB02X29562 GE Range Top Bumper
150WB10X29077 GE Oven Latch Assembly
200WB34X20009 GE Cover Hole Assembly (Black)
204WB63X33019 GE Drawer Assembly and Slides Body
210WB02T10509 GE Bake Element Reflector Pan
211WB34X29158 GE Side Insulation Retainer
217WB34X29069 GE Oven Main Wire Cover
218WB02T10560 GE Range Terminal Cover Assembly
221WB63X28679 GE Oven Side Panel
222WB56X33020 GE Drawer Panel Stainless Steel
231WB35X29643 GE Oven Bottom Insulation
232WB35X29076 GE Oven Insulation Wrapper
233WB35X29074 GE Oven Back Insulation
240WB48T10082 GE Oven Rack
241WB48X20881 GE Oven Rack Slide Assembly
242WB02X29072 GE Oven Drawer Wedge
251WB44X45499 GE Oven Bake Element
252WB44X45491 GE Broil Element
253WB21X22134 GE Oven Sensor Assembly
254WB17X38438 GE Terminal Block Assembly
257WB49X29679 GE Range Halogen Bulb Kit
258WB25X40248 GE Assembly Halogen Lamp
259WB25T10027 GE Oven Lens Lamp
260SLIDE AND BRACKET ASM
264TRIM FRONT FRAME
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
277WB10T10068 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB38X33651 GE Vent Tube
284WB34X29182 GE Upper Duct Assembly
286WB34X29183 GE Side Duct Assembly
296WB02X10521 GE Oven Leveling Leg
415WB27X45011 GE RC17 Control Board
472WB49T10007 GE Side Reflector
578WB27T10662 GE Oven Capacitor
594WB18X25985 GE Meat Probe with Harness Receiver
603WB18X29523 GE RJ45 Connector Harness
606TEMPERATURE SENSOR HARNESS
608WB18X30731 GE Hidden Bake Harness Wire
760WB1X536 GE Oven Screw
802SCREW 8-18 AB SKT25 7/8
806GEN WB01T10125
810WB01M10002 GE Oven Screw
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
929WB02T10026 GE Oven Strike Maintop
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
