CHS90XM2N4S5 COOLING FAN

CHS90XM2N4S5 COOLING FAN

Written by

in

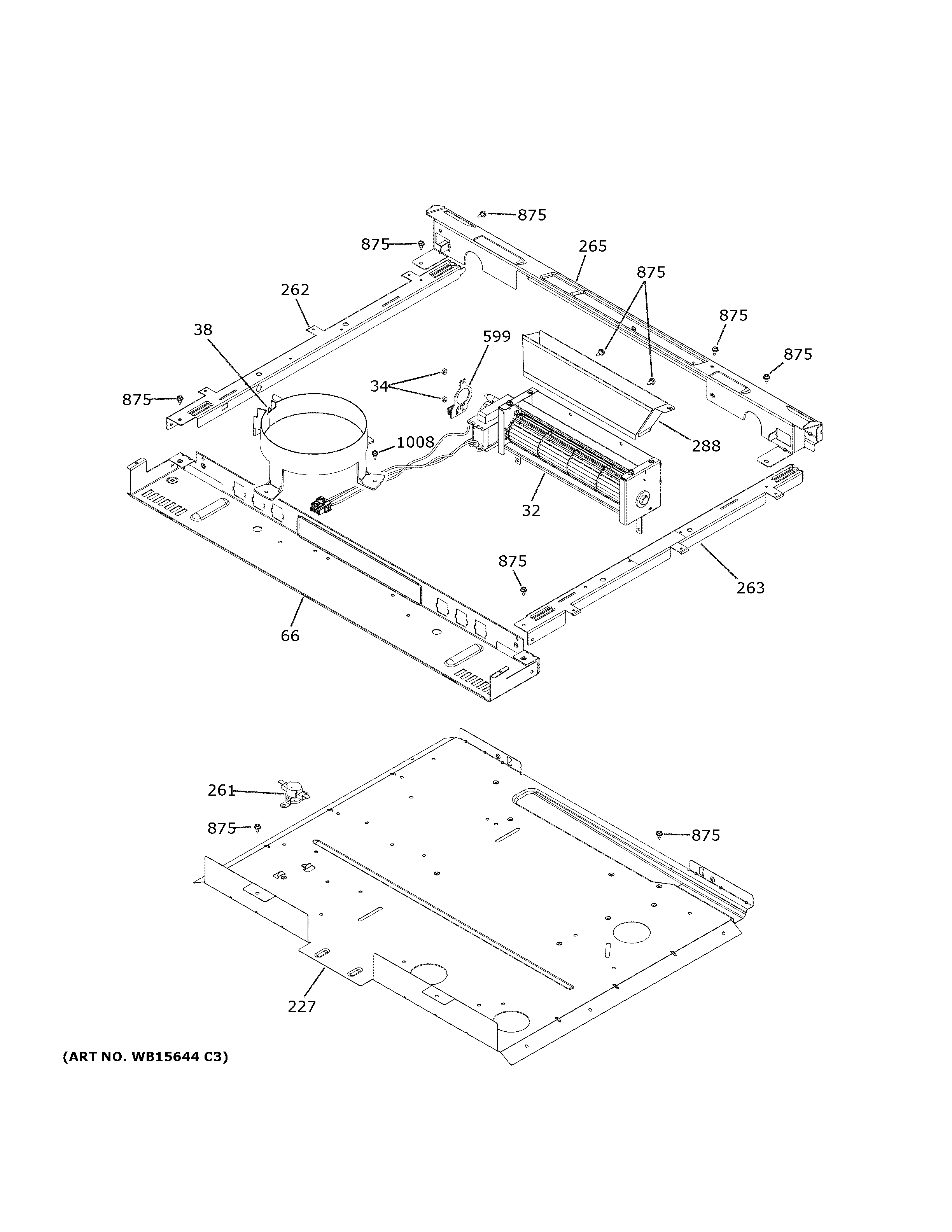

CHS90XM2N4S5 COOLING FAN

Products

PositionProduct
32WB26X29468 GE Range Cooling Fan Assembly
34WB01T10133 GE Hex Nut M4-0.7 Thread
38SPILL CONTAINER
66WB34X29190 GE Control Enclosure
227WB34X32516 GE Top Insulation Retainer
261HIGH LIMIT SWITCH
262CHASIS BRACE RT
263WB07X33023 GE Chassis Brace Left
265WB07X29632 GE Range Rear Trim Support
288WB34X29483 GE Oven Cooling Fan Duct
599WB27X28659 GE Oven Sensor Board
875WH2X930 GE Screw
1008WB1X5904 GE Oven Screw 8-18 BA
